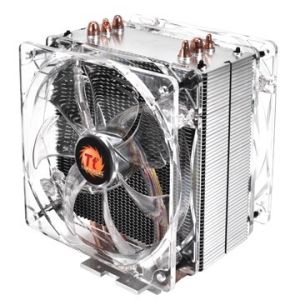

ThermalTake Contac 30 Universal CPU Cooler - Intel LGA2011, LGA1366, LGA1155, LGA1156, AMD FM1, AM3+, AM3, AM2+, AM2, 120mm Fan, 800~2000rpm, 29.434~72.084CFM, 15.0~33.2dBA

IMG 1 of 6
No Longer Available
Part Number:
208213
(?) Brand:
ThermalTake Web Site
Manuf No:
CL-P0579
CLP0579
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
31/10/2012
Details Files Images & Video
All stock codes associated to this product
CLP0579, CL-P0579
Contac 30

 P/N: CLP0579



Features

Excellent Price/Performance Value CPU Cooler, supports up to 160W.

  • Three 8mm Heat-pipes make direct contact with the CPU, enhances thermal transfer.
  • Curved fin design increases airflow and accelerates heat dissipation.

One 120mm Blue LED Fan

  • 120mm PWM fan, automatic speed adjustment from 800~2000 RPM.
  • Anti-vibration soft mounts decrease noise when operating.

Universal Socket Compatibility & Accessory Package

  • All-in-one back-plate design for easier installation
  • Universal support: Intel socket LGA2011/1366/1155/1156/775 AMD socket FM1/AM3+/AM3/AM2+/AM2

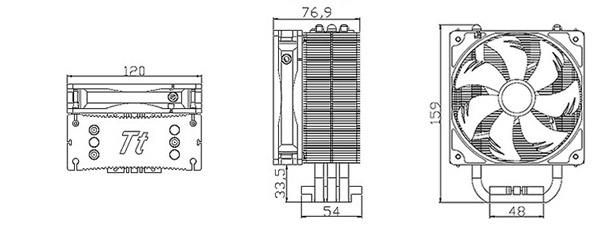

Dimension


Intel Motherboard Installation

Step 1 Step 2

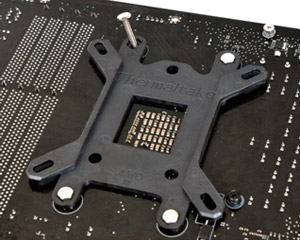

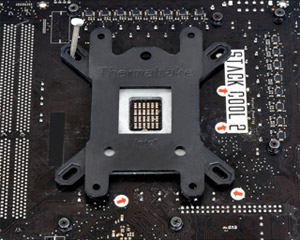

Step One: Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers. Step Two: Put the two Intel mounting bars along the four long screws and secure them with four nuts.
Step 3 Step 4

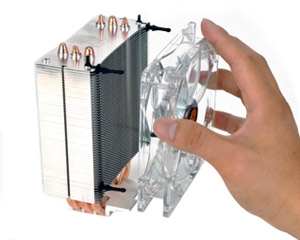

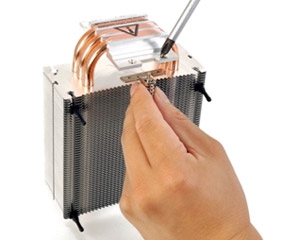

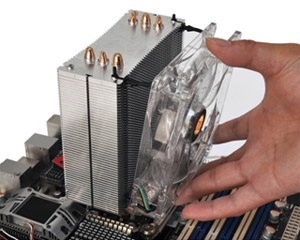

Step Three: Fan module on the cooler must be removed before the installation. Step Four: Securing the two T-mounting bars to the base of cooler by short screws.
Step 5 Step 6

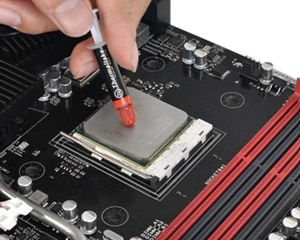

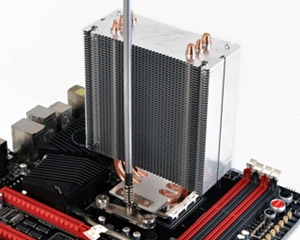

Step Five: Applying a thin layer of thermal grease Step Six: Place the assembled heat-sink onto the CPU and tighten each fixing bolts evenly.
Step 7 Step 8

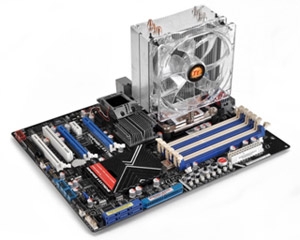

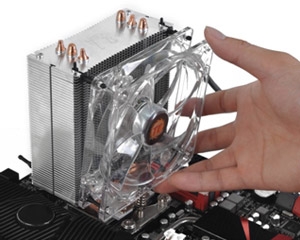

Step Seven: Reinstall the fan onto the heat-sink Step Eight: Connect the 4-pin wire to the motherboards CPU fan connector. Installation is done.

AMD Motherboard Installation

Step 1 Step 2

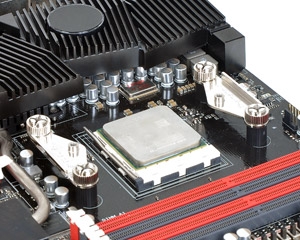

Step One: Insert the four long screws through the back-plate into the four holes on the motherboard and secure them with the four plastic spacers. Step Two: Put the two AMD mounting bars along the four long screws and secure them with the four nuts.
Step 3 Step 4
Step Three: Fan module on the cooler must be removed before the installation Step Four: Securing the two T-mounting bars to the base of cooler by short screws.
Step 5 Step 6

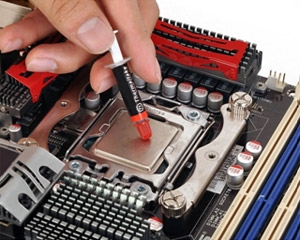

Step Five: Applying a thin layer of thermal grease Step Six: Place the assembled heat-sink onto the CPU and tighten each fixing bolts evenly.
Step 7 Step 8
Step Seven: Reinstall the fan onto the heat-sink Step Eight: Connect the 4-pin wire to the motherboards CPU fan connector. Installation is done.

Specifications:

P/N CLP0579
Heatsink Dimension 120 x 76.9 x 159 mm (L x W x H)
Heatsink Material Aluminum Fins
Aluminum Base
Heatpipe 8mm x 3
Fan Dimension 120 x 120 x 25 mm (L x W x H)
Rated Voltage 12 V
Start Voltage 9 V
Rated Current Low:0.10AHigh:0.25A
Power Input 1.2W (Max 3.0W)
Fan Speed 800 ~ 2000 RPM (PWM)
Air Flow 29.434 ~ 72.084 CFM
Air Pressure 0.356 ~ 1.985(mmH2O)
Noise 15.0 ~ 33.2dBA
Life Expectancy 30,000 Hours
Connector 4 Pin
Weight 558g
Compatibility Intel
LGA 2011
LGA 1366
Core i7
LGA 1155/1156
Core i7 / Core i5 / Corei3
LGA 775
Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium D / Pentium 4/Pentium / Celeron D / Celeron

AMD
FM1
A-series
AM3+ / AM3
Phenom II / Athlon II / Athlon / Sempron series
AM2+ / AM2
Phenom II / Phenom / Athlon / Sempron series

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
