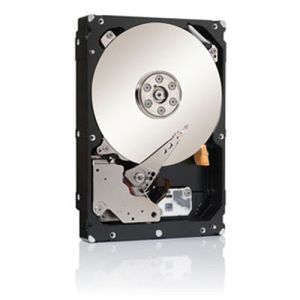

Constellation ES Hard Drive

SATA 6Gb/s
Model Number: ST1000NM0033
Supersize your enterprise storage
The Seagate Constellation ES.3 enterprise HDD delivers the scalability that data centers need to reliably meet their demanding growth of unstructured data.
  • Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
  • Perfect for reliable, 247 bulk data storage
  • Predictable 7200-RPM performance even in the most rugged multi-drive SAS or SATA environments
  • Best-in-class energy efficiency with low power and cooling requirements
  • Protect your data and ease data disposal costs and management with the SED FIPS 140-2 option
constellation es-3 overview 1-enterprise storage
Supersize your storage
The Constellation ES.3, with the world’s highest capacities in a 3.5-inch HDD form factor, is the perfect foundation for building maximum density server and storage solutions. These capacity-optimized hard drives support up to152TB of storage per square foot for a great return-on-investment for your enterprise storage.
constellation es-3 overview 2-raid storage
Reliable bulk data storage for a 24x7 world
Building high capacity RAID storage solutions requires predictable and consistent performance. With the Constellation ES.3, we take it a step further and ensure your data is reliably stored in multi-drive chassis solutions.
constellation es-3 overview-3 energy efficient data storage
Boost your storage capacities – and conserve power
Storing massive amounts of unstructured data is easy and smart with the Constellation ES.3. Designed with best-in-class energy efficiency, it uses a minimum power and cooling envelope to store up to 152TB per square foot.
constellation es-3 feature 1: 4tb data footprint
Maximize your data footprint
The Constellation ES.3 features the worlds largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB. Select from sixth-generation SAS or SATA interfaces for easy integration.
constellation es-3 feature 2:low-power enterprise storage
24×7 energy-efficient data access
Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average.
Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings.
constellation es-3 feature-3: enterprise drive reliability
Drive reliability you can trust.
The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability.
Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.
Generation ES.3 ES.2 ES
Capacity 4TB 3TB 2TB 1TB 3TB 2TB 2TB 1TB 500GB
Form Factor 3.5" 3.5" 3.5" 3.5" 3.5" 3.5" 3.5" 3.5" 3.5"
Interface Options SAS 6Gb/s, SATA 6Gb/s SATA 6Gb/s, SAS 6Gb/s SAS 6Gb/s, SATA 6Gb/s SATA 6Gb/s, SAS 6Gb/s SATA 6Gb/s, SAS 6Gb/s SATA 6Gb/s, SAS 6Gb/s SAS 6Gb/s, SATA 6Gb/s SAS 6Gb/s, SATA 6Gb/s SAS 6Gb/s, SATA 6Gb/s
Spindle Speed (RPM) 7200 7200 7200 7200 7200 7200 7200 7200 7200
Cache (MB) 128 128 128 128 64 64 64 64 64
Transfer Rate, Max Ext (MB/s) 600 600 600 600 600 600 600 600 600
Sustained Data Rate OD 175MB/s 175MB/s 175MB/s 175MB/s 155MB/s 155MB/s 147Mb/s 147Mb/s 147Mb/s
Average Latency (ms) 4.16 4.16 4.16 4.16 4.16 4.16 4.16 4.16 4.16
Reliability/Data Integrity
Nonrecoverable Read Errors per Bits Read 1in 1015 1in 1015 1in 1015 1in 1015 1in 1015 1in 1015 1in 1015 1in 1015 1in 1015
Annualized Failure Rate (AFR) 0.63% 0.63% 0.63% 0.63% 0.73% 0.73% 0.73%% 0.73%% 0.73%%
Power Management
Seek, Typical Operating (W)                 6.76
Idle, Typical Operating (W) 7.80, 6.73 6.73, 6.74 5.78, 5.17 4.45, 4.84 7.71, 7.40 7.71, 7.40 5.69, 6.24 5.16, 4.42 4.32, 4.56
Operating 5to60C 5to60C 5to60C 5to60C 5to60C 5to60C 5to60C 5to60C 5to60C
Non-operating -40to70C -40to70C -40to70C -40to70C -40to70C -40to70C -40to70C -40to70C -40to70C
Operating: Gs (ms) 70/40(2ms) 70/40(2ms) 70/40(2ms) 70/40(2ms) 70 / 40(2ms), 70/40(2ms) 70/40(2ms), 70 / 40(2ms) 70(2ms), 70/40(2ms), 70/40(2300ms) 70(2ms), 70/40(2ms) 70(2ms), 70/40(2ms)
Non-operating: Gs (ms) 300(2ms) 300(2ms) 300(2ms) 300(2ms) 300(2ms) 300(2ms) 300(2ms), 2(ms) 300(2ms), 350(2ms) 300(2ms), 350(2ms)
Acoustics (bels - sound power)
Idle 2.8 2.8 2.8 2.8 2.8 2.8 2.7 2.7, 1.9 2.7, 2.2
Operating 3.0 3.0 3.0 3.0 3.2 3.2 3.0 2.7 2.8
Height (in/mm)             1.028/26.10 1.028/26.10 1.028/26.10
Width (in/mm)             4.010/101.85 4.010/101.85 4.010/101.85
Length (in/mm)             5.787/147.00 5.787/147.00 5.787/147.00
Height (in/mm) (maximum) 1.028/26.10 1.028/26.10 1.028/26.10 1.028/26.10 1.028/26.10 1.028/26.10
Width (in/mm) (maximum) 4.010/101.85 4.010/101.85 4.010/101.85 4.010/101.85 4.010/101.85 4.010/101.85
Length (in/mm) (maximum) 5.787/147.00 5.787/147.00 5.787/147.00 5.787/147.00 5.787/147.00 5.787/147.00
Weight (lb/g) 1.543/700 1.444/655 1.400/635 1.334/605 1.543/700 1.543/700 1.57/710, 1.565/710 1.41/640, 1.345/610 1.34/610, 1.411/640
ST1000NM0033 ES.3 1TB SATA 6Gb/s 7200RPM 128MB   566 70/40Gs 147.00mm 101.85mm 26.10mm 0.63% 60C 8.08W
