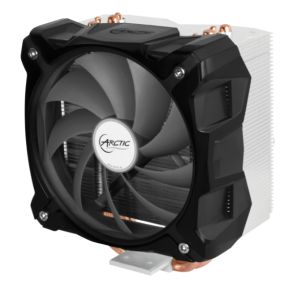

Freezer i30 CO
Intel CPU Cooler for Continuous Operation
Description
The Freezer i30 CO is an enthusiast-grade CPU cooler for the latest Intel socket 2011, as well as socket 1155 and 1156. With a design out of patented technologies, direct touch heatpipes, precision machining, vibration absorption and sturdy mounting system, altogether you are given plenty of overclocking headroom in virtual silence.
Continuous Operation
"CO" stands for Continuous Operation and makes the cooler suitable for PCs with non-stop operation like servers. The Japanese dual ball bearing used reduces rotational friction considerably, and it is much less sensitive to dust and high temperature. Hence, it is up to 5 times more durable than other bearings.
Superior Cooling Perfomance
An interchangeable 120 mm PWM fan in combination with 4 direct touch heatpipes and a 48-fin heatsink enable the Freezer i30 CO to deliver high performance and improved heat transfer from the CPU. Test results from Hardware Secrets have proved its efficiency, comparing with the stock cooler and other competitors.
Cooling Performance on Intel Core i5-2500K (Overclocked, Full Load)
Freezer i30
63 oCThermalright True Spirit 120
82
oC
Xigmatek Praeton
83
oC
Boxed Cooler
97
oC
Better
4.0GHz, 1.3V; Tested with Prime95 small FFT
Data Source:
Low Noise
The test done by Tom's Hardware has shown that the Freezer A30 is the quietest cooler in their roundups.
Thanks to the PWM control, the fan speed adjusts according to the CPU temperature and thus the noise level remains at an absolute minimum which qualifies it as a silent cooler. Click here to see how the PWM control settings can be changed according to your performance and noise preference.
Noise Level on AMD Phenom II X6 1090T Black Edition (Thuban) (Full Load)
Freezer A30
37.8 dBACooler Master Hyper 212 EVO
38.9 dBA
EKL Alpenfhn Triglav
39.8 dBA
DeepCool GAMMAXX 400
40 dBA
Scythe Katana 4
42.9 dBA
Thermaltake Contac 39
47.9 dBA
Better
Tested with 30 cm distance, Core speed 3800 MHz
Sturdy Mounting Mechanism
Sturdy mounting is offered thanks to the durable steel mounting clip and back-plate*. This mounting system provides excellent mounting stability and is fully transport-proof.
Direct Touch Heatpipe Heatsink
It boosts heat transfer with the 4 double-sided direct touch heatpipes, 8mm in diameter each. Our patented process (20 2011 000 71.8) ensures the heatpipes are packed tightly together with no gaps between. The increased contact surface and flatness by precision machining lead to enhanced heat transfer from the CPU.
Interchangeable Fan
Not that you have to replace the fan, but you are offered with the flexibility!
|
4 Mounting Directions
|
|

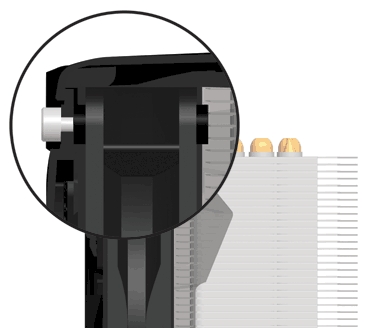

4 Rubber Vibration Absorbers
|
Specifications:
| Max. Cooling Capacity |
320 Watts |
| Heatpipe |
Direct-Touch 8 mm x 4 (double-sided) |
| Heatsink Material |
Aluminum fins x 48 (thickness: 0.5 mm) |
| Fan (mm) |
ARCTIC F12 PWM:
120 mm, 400 1,350 RPM (PWM controlled) |
| Airflow |
74 CFM / 125.7 m/h |
| Bearing |
Dual Ball Bearing |
| Noise Level |
0.3 Sone (@1,350 RPM) |
| Current (per fan) / Voltage (per fan) |
0.22A / 12V |
| Power Consumption |
2.64 W |
| Dimensions (Product) |
100 (L) x 139 (W) x 161 (H) mm |
| Net Weight |
905 g |
| Limited Warranty |
6 years |
| Dimensions (Packaging) |
123 (L) x 161 (W) x 187 (H) mm |
| itemnumber |
UCACO-FI30201-GB |
| UPC |
0872767006140 |
| Gross Weight |
1.4 kg |
