All stock codes associated to this product
DR9080C, DR-9080C, CN1437

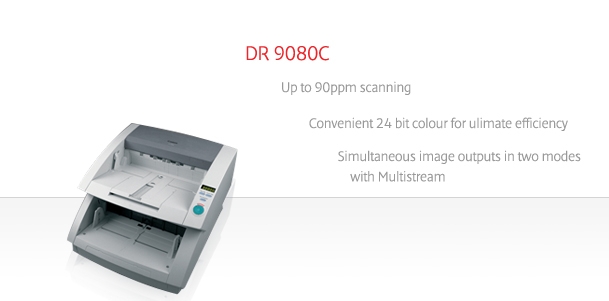

Canon DR-9080C
imageFORMULA High Speed Document Scanner
Archived Product
With the DR-9080C, you can benefit from high volume production scanning with enhanced speed, quality and 24-bit colour support, delivering the ultimate solution for a wide range of business applications.
Features
- Rapid scanning speeds of up to 90 ppm or 50 ppm in colour
- A3 scanning
- Superior scanning quality, up to 600dpi
- MultiStream technology
- Double feed and simple staple detection
- Powerful CapturePerfect 3.0 Utility Software
Further Information
Superior scanning speed
To substantially increase document scanning speeds, the DR-9080C features on-board JPEG compression and a new CIS (Contact Image Sensor). As a result, it attains speeds that reach right up to 90 ppm in black and white/greyscale mode (A4 portrait, 200 dpi) or even in colour mode (A4 portrait, 100 dpi). Plus, with a maximum 180 ipm for fast duplexing, it offers unparalleled production productivity.
Outstanding quality
For high quality document scanning, the DR-9080C delivers an output resolution of up to 600 x 600 dpi and offers a ‘smoothing’ function to reduce the moiré effect and enhance quality. Advanced text enhancement improves the legibility of light text, and a dual light sensor system prevents wrinkle shades on a document appearing on the scanned image.
A3 and colour advantage
The DR-9080C scans up to a large A3 size, and can handle different paper formats and thicknesses in mixed batches. It also provides 24-bit colour support for use in a wide range of business applications.
Renowned reliability
The DR-9080C utilises a new feeding mechanism, combined with Canon’s strong and durable original retard roller system. This allows the scanner to accept a wider range of paper thicknesses and provides even more reliable paper feeding performance.
MultiStream™ efficiency
The inclusion of sophisticated MultiStream™ technology allows simultaneous image outputs of two different scanning modes. For example, one output can be in colour and the other in black and white. The colour image can then be saved for archiving, while the mono image can be saved for OCR use.
Compact and easy to use
A compact yet robust design guarantees easy placement as well as absolute dependability. The simplified operation panel on the main body of the scanner enables user-friendly operation. There’s a reduction in noise levels for quiet use. Plus double feed and simple staple detection add to problem-free operation.
Powerful CapturePerfect utility software
New CapturePerfect 3.0 Utility software, combined with Canon's latest driver and scanner hardware functions, offers the capability and versatility needed for extensive applications - while also optimising image quality and overall ease of use. A range of optional accessories are also available to increase productivity.
Specifications:
|
Product Specification
|
| GENERAL PRODUCT INFORMATION |
| Scanner Type |
Desktop Sheet Fed Scanner |
| Colour |
Yes |
| Power Supply |
220-240V 50/60Hz |
| Dimensions |
460 x 525 x 310 (H x W x D) (tray closed) |
| Weight |
Approx. 23kg |
| Interface |
1 USB 2.0 and 2 SCSI-III |
|
| DOCUMENT READING |
| Scanning Element |
Contact Image Sensor (CMOS) |
| Light Source |
3-colour (RGB) LED |
| Scanning Speed |
Black and white: 90ppm / 180ipm
Greyscale: 90ppm / 80ipm
Colour: 50ppm / 100ipm (with compression) |
| Output Mode |
jpeg by inteternal Board, CCITT Group 4, PDF, BMP TIFF by driver |
| Scanning Resolution |
100/150/200/300/400/600dpi |
| Drop Out Colour |
RGB - User selectable (front/back/both) |
|
| DOCUMENT FEEDING |
| Document Thickness |
Automatic Feeding: 0.06 - 0.15mm
Manual Feeding: 0.05 - 0.3mm |
| Document Sizes |
50-305mm (width)
70 - 432mm (length) |
| Sheet Feeder Capacity |
500 sheets (A4) |
|
| SPECIAL FEATURES |
| Drivers |
ISIS/TWAIN driver for Windows 98SE/2000/Me/XP, Windows NT |
| Options |
Imprinter, Mechanical Counter, Barcode Module, Exchange Roller Kit. |
|
