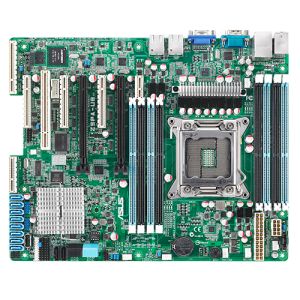

The ATX-sized Z9PA-U8 supports the latest Intel Xeon E5-1600 and E5-2600 processor family, featuring high computing capacity and faster data transmission. This server motherboard provides customer a cost-effective way to enter into Romley platform with one way CPU and Desktop (ATX) power supply.
Design for Datacenter Cache Server application
The Z9PA-U8 delivers outstanding data transmission performance with two DIMM per channel and up to 256GB LRDIMM. Thus, it is suitable for datacenter on Cache Server application which speeds up the access to data and quick response the demand from network.
Dual Use for Server and High End Workstation
The design and features of the Z9PA-U8 accommodate usage as a medium to large scale server or high-end workstation for even the most complex tasks. Additionally, it adopts the latest hardware standards, including USB 3.0 for faster data transfers and PCI Express 3.0 enhanced signaling and data integrity.
MIO-892 Card Supported for 7.1 ch Audio Experience
The Z9PA-U8 supports the latest ASUS MIO-892 Card. With better enhanced signal-to-noise ratio in a 7.1 surround channel, the MIO card offers great sound quality to complement the robust video powerdelivering exhilarating surround sound. Accompany with graphic card and MIO-892, Z9PA-U8 becomes powerful E5-2600 single socket workstation.
Comprehensive Server Management Solution: ASMB6-iKVM and ASWM Enterprise
The ASMB6-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, management LAN fail-over support, and user-friendly web-based graphical interface through all major browsers. Moreover, ASWM Enterprise provides one-to-multiple centralized management including BIOS flash, remote control, power control through a colorful, graphical, and informative interface.
Specifications
| Processor / System Bus |
1 x Socket 2011
Intel Xeon processor E5-1600 product family
Intel Xeon processor E5-2600 product family
|
| Core Logic |
Intel C602-A PCH |
| Memory |
Total Slots : 8 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 256GB LRDIMM
Memory Type :
DDR3, 1066/1333/1600, RDIMM
DDR3, 1066/1333, UDIMM
DDR3, 1066/1333, LRDIMM
Memory Size :
2GB, 4GB, 8GB, 16GB RDIMM
2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM |
| Expansion Slots |
Total Slot : 7
Slot Location 1 : PCI-E x8 (Gen2 X4 Link)
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied
Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
Slot Location 7 : MIO Slot for Audio card
Additional Slot 1 : PIKE Slot for Stroage expansion
Follow SSI Location# |
| Form Factor |
ATX (12"x9.6") |
| ASUS Features |
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASWM Enterprise |
| Storage |
SATA Controller :
Intel C602-A AHCI
4 x SATA2 3Gb/s ports
2 x SATA3 6Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card
ASUS PIKE 2108 8-port SAS2 6G RAID card
ASUS PIKE 2208 8-port SAS 6G HW RAID card
ASUS PIKE 9230 4-port SATA 6G RAID card |
| Networking |
2 x Intel 82574L + 1 x Mgmt LAN |
| Graphic |
Aspeed AST2300 with 16MB VRAM |
| On Board I/O |
1 x TPM header
1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V power connector
1 x Management Connector , Onboard socket for management card
1 x USB connector
2 x USB pin header , Up to 4 Devices
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header |
| Back I/O Ports |
1 x External Serial Port
4 x External USB Port
2 x USB 3.0, 2 x USB 2.0
1 x VGA Port
2 x RJ-45 + 1 x Mgmt LAN
1 x PS/2 KB/Mouse |
| Management Solution |
ASWM Enterprise
Optional ASMB6-iKVM for KVM-over-Internet |
| EMI |
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024) |
| Environment |
Operation temperature: 10 ~ 35
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing) |
| Accessories |
Gift Box Pack:
6 x SATA Data Cables
1 x I/O Shield
1 x ASUS Mainboard Support CD
1 x ASWM Support CD
1 x User's Guide
1 x USB to SATA DOM Power cable
Bulk Pack:
1 x I/O Shield
1 x ASUS Mainboard Support CD
1 x ASWM Support CD
1 x User's Guide |
| Product SKUs |
Standard Gift Box Pack
Standard Bulk Pack |
