All stock codes associated to this product
CNPS14X, ZMCNPS14X, ZM-CNPS14X, ZalmanZMCNPS14X, Zalman ZM-CNPS14X
CNPS14X

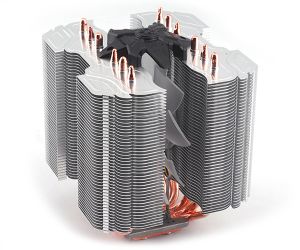

140mm Fan Ultra Quiet CPU Cooler
Socket FM2/Socket AM2+/AM2/Socket AM3+/AM3/Socket FM1/Socket 775/Socket 1156/Socket 1366/Socket 1155/Socket 2011

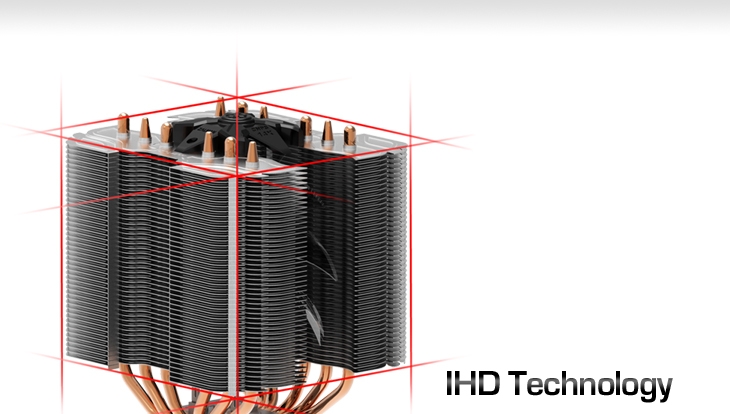

IHD (Interactive Heatpipe transfer Design)
Technology applied to keep your computer running smooth and stable.
Additional Two Fans
Up to 2 additional 140mm fans can be installed for overclockers and power users.
'U' Type Dual Heatsink
U-shape dual heat sink is designed to maximize the dissipation area. Plus the aerodynamically constructed double-induction heat sink increases the airflow maximizing cooling performance.
6 Heatpipes with double efficiency
Ultra Quiet 140mm Fan
Identical 140mm ultra quiet middle fan installed for optimal cooling performance.
High Quality Base
Zalman`s unique sanding process provides excellent heat transfer ability.
Fits in Mid Case
With height less than 160mm it fits in a variety of cases including mid case(width 180mm).
High Compatibility
With height less than 160mm it fits in a variety of cases including mid case(width 180mm).
Compatible with Intel Socket 2011, AMD Socket FM1, FM2 and most Intel, AMD platform.
ZM-STG2M
High performance ZM-STG2M helps to maximize the heat transfer from CPU to base allowing optimal cooling performance.
| |
 |
Socket |
|
CPU |
|
CPU Compatibility |
|
| Intel |
2011 |
Core i7 Extreme |
Supports all speeds |
| 1155/1156 |
Core i7 Extreme |
Supports all speeds |
| Core i7 |
| Core i5 |
| Core i3 |
| 1366 |
Core i7 Extreme |
Supports all speeds |
| Core i7 |
| 775 |
Core 2 Quad |
Supports all speeds |
| Core 2 Duo |
| Core 2 Extreme |
| Pentium Dual Core |
| Pentium D |
| Pentium 4 |
| Celeron D |
| AMD |
FM2 |
Trinity |
Supports all speeds |
| FM1 |
LIano |
Supports all speeds |
| AM3+ |
Zambezi |
Supports all speeds |
| AM3 |
Phenom II |
Supports all speeds |
| Athlon II |
| Opteron |
| AM2+ |
Phenom II |
Supports all speeds |
| Phenom |
| Athlon FX |
| Athlon X2 |
| Athlon |
| Sempron |
| Opteron |
| AM2 |
Athlon FX |
Supports all speeds |
| Athlon X2 |
| Athlon |
| Sempron |
| Opteron |
|
Specifications:
 |
| |
Dimensions
|
140(L) x 126(W) x 159.3(H)mm |
| Weight |
875g |
| Materials |
Pure Copper, Aluminum |
| Dissipation Area |
10,466 |
| Fan Bearing |
Long Life Bearing |
| Fan RPM |
950 ~ 1,350rpm 10% |
| Noise |
17 ~ 21dBA 10% |
|
| |
 |
| |
| Colour |
Gray |
| Capacity |
1g |
| Temperature Stability |
-40C ~ +150C (-40 ~ +302) |
|
