- Dual 5.25 bay coolant storage solution.
- Face plate: Black anodized aluminium.
- Reservoir: Clear acetal.
- Brackets: Nickel plated steel.
- Fill cap: Chrome plated brass.
- Fittings: Black painted brass.
- Pump inlet: Black POM.
Product Description
The Maelstrom 5 1/4" Dual Bay Reservoir is an advanced,versatile, and elegant coolant storage& recirculation system capable of operating either as a standalone unit, or with a single ora dual MCP35 class pump (MCP350, 355 or35x).
The product is available in 5 versions:
-
Basic standalone reservoir
-
With factory pre-installed MCP35X housing (no pump) for DIY upgrade purposes.
-
With factory pre-installed MCP35X2 housing (no pump) for DIY upgrade purposes.
-
With factory pre-installedsingle PWM controlled MCP35X pump.
-
With factory pre-installed dual PWM controlled MCP35X pumps.
Features & Benefits
Instant visualization of coolant level, cool factor:
Fits in two 5 1/4" Bays with or without the pump(s) installed
The image to the left shows the Maelstrom bay reservoir filled with various coolant colors.
Versatility, upgradability, extreme performance capability:
Modular design
The Maelstrom operates either in standalone mode, or with one or two built-in Swiftech MCP35x series pumps (MCP350, 355, or PWM controlled 35X) using an MCP35X-H (for single pump) or an MCP35X2-H (for dual pump) housing - All options are factory pre-installed.
Instant visualization of critical temperature data (*see notes below)
Coolant temperature display (in degrees Celsius)
Precise coolant level monitoring
Graduated level
Convenience & safety: Easy filling,no spills
Extra large fill-port opening with finger-grip ribs on the chrome plated brass cap
Reliable operations
Anti-vortex/anti-bubbles system
A tube surrounding the pump inlet features various size openings in its wall and prevents the formation of a vortex, and air entrainment in the loop
An open-cell sponge further traps micro-bubbles before their can re-enter the inlet
Performance, versatile loop configuration
Up to 3 return lines can be installed for loop parallelization.
Shown here with 3/4" compression fittings to illustrate compatibility
Cosmetic appeal: elegant and robust
Solid black-anodized aluminum face-plate with robust brass inserts for invisible fixation
Cosmetic appeal: light up the coolant, cool factor
Two pre-drilled holes for installing 3mm diodes
(1 UV-LED is included)
Compatibility with all existing G1/4 fittings (compression, etc..)
G1/4 port standard
Included 1/2" hose barbs & hose clamps
Bonus: reduced cost of ownership (not included by our competitors)
|
Maelstrom Dual bay Reservoir (Standalone)
|
| Material: |
-
Face plate: Black anodized aluminum
-
Reservoir: Clear Acetal
-
Brackets: Nickel plated steel
-
Fill cap: chrome plated brass
-
Fittings: black painted (electrophoresis) brass
-
Pump inlet: Black POM
|

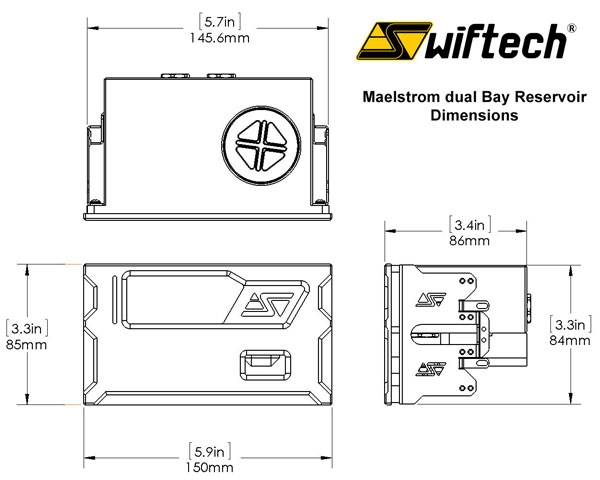

| Dimensions: |
|
|
Weight:
|
|
| Coolant Capacity: |
|
| Temperature controller |
|
| LED |
|
