All stock codes associated to this product
VANVL750B, VAN-VL750B
VOLTRA 750 Watt Power Supply
High-Performance ATX Modular Power Supply
The VOLTRA Premium Series power supply delivers clean, stable, and continuous power, making it the best choice when you need an affordable, premium quality, and energy efficient power supply for your high-end gaming PC or workstation.
Features:
-
High Efficiency over 82% at 100% load
-
Comply with ATX 12V 2.3 & EPS 12V
-
Intelligent 140mm Fan
-
Japanesemade capacitors
-
Modular Design
-
Higher Reliability (MTBF > 100,000 hours)
-
Flat Modular Cables
-
SLI supported
-
Class Leading Single 12V Rail
-
Full Range Active PFC
-
Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection
-
5 Year Warranty
Best Blend of Performance and Features
The VOLTRA Premium Series High-Performance Semi-Modular power supply is designed to balance affordability with key features including high-efficiency, continuous rated power output, unyielding voltage parameter, and low ripple and noise, to deliver a first-class power supply that meets the needs of your performance PC.
Modular Design
With the semi-modular design of the VOLTRA Premium series, you can build your performance rig with the cables you need. This design allows you to maintain a tangle free chassis and open airflow within your system which is the key to long term stability and longevity.

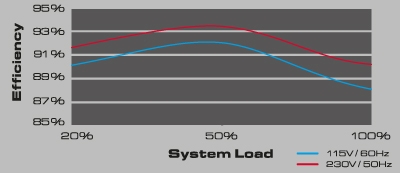

High Efficiency
The circuitry of the VOLTRA Premium Series achieves 80Plus Bronze certification in its DC-to-DC power conversion guaranteed to be operating at 82% or higher efficiency even at 100% load.
Specifications:
| Model |
VAN-VL750B |
| AC Input Rating |
100-240VAC |
| Input Current |
10-5A Max |
| Frequency |
47Hz - 63Hz |
| DC Output |
Maximum Load |
Maximum Output |
| +3.3V |
25A |
130W |
| +5V |
25A |
| +12V |
62A |
750W |
| -12V |
0.8A |
9.6W |
| +5V |
3A |
15W |
| Total Power |
750W |
Connectors:
| |
Model |
VAN-VL850B / VAN-VL750B |
| |
Cable & Connector |
Qty (Cbl*Connector) |
Length(mm) |
Cable Type |
 |
ATX 20/24-Pin Compatible |
1*1 |
600 |
 |
 |
EPS/ATX 12V 4/8-Pin Compatible |
1*1 |
600 |
 |
 |
PCI-e 6/8-Pin Connector |
2*1 |
600 |
 |
 |
4-Pin Peripheral Connector |
2*2 |
600+150 |
 |
 |
SATA Connector |
2*4 |
600+150*3 |
 |
 |
4-Pin Peripheral & Floppy Connector |
1 |
150 |
 |
System Requirements:
ATX Form Factor Chassis
Package Contents:
