(Monitor Sold Separately)

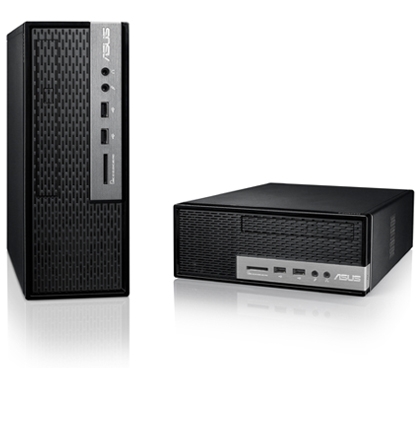

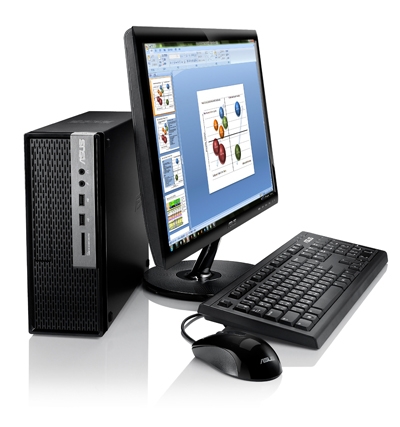

7L Space-saving and Flexible Design
With elegant lightweight and a front-to-back cooling airflow design, BT series can be placed vertically or horizontally to accommodate any business environments.
Uncompromised Performance
Powered by top-grade components and technologies, the ASUS Pro Series helps you easily multitask your office work. Models feature Intel 2nd generation processors with powerful integrated graphics to best handle your workload.
USB3.0 : 10x Faster Transfer
Experience lightening speed data transfers at 4.8Gbps with USB 3.0 - the latest standard. USB 3.0 transfers data up to 10X faster than USB 2.0 while remaining fully backward-compatible.
100% Solid State Capacitors for Ultra Reliability
ASUS Pro desktops are made with the world's best motherboards and solid state capacitors. High-quality components provide utmost durability, improved longevity and enhanced thermal performance.
EPU- Up to 40% Energy Saving
The exclusive ASUS EPU chip is the worlds first PC energy saving controller, optimizing efficiency by detecting real time CPU loads and saving up to 40% on overall power consumption.
Multi I/O PCIE card
The Serial/Parallel Multi I/O card on selected models is the ideal solution for serial equipment that require fast data transfer, and adding a second printer, scanner, or other parallel device. (*on selected models)
F9 One Key Restore
Displays an image file with manufacturer's system parameters, including operating system and default settings. Easy setup reset to default with no recovery CD.
Specifications
| Operating System |
Windows 7 Professional
|
| CPU |
Intel® Core™ i5-3470S Processor 2.90 GHz (6M Cache, up to 3.60 GHz Turbo)
|
| Chipset |
Intel H61 |
| Graphic |
Integrated Intel HD Graphics
Support DirectX 10
|
| Memory |
4GB RAM |
| Expansion Slots |
1 x PCI-e x 16 |
| SATA |
2 x SATA2 |
| Storage |
500GB Hard Drive Disk |
| Drive Bays |
1 x 5.25" (ODD) Slim Type
1 x 3.5" (HDD) |
| LAN |
Realtek RTL8111E
1 x GB LAN
Support Wake On Lan function |
| Audio |
VIA VT1708S
High Definition 6 Channel Audio |
| Front I/O Ports |
2 x USB 2.0
1 x Headphone
1 x Microphone
1 x Card Reader*1 |
| Back I/O Ports |
2 x USB 3.0
4 x USB 2.0
1 x PS/2
1 x VGA(D-Sub)
1 x DVI-D
1 x HDMI
1 x RJ45 LAN
1 x 6 Channel Audio 3 Ports |
| Power Supply |
FlexATX 200W |
| Dimensions |
24.2 x 32 x 9.2 cm (WxDxH)
33 x 49.7 x 20.5 cm (WxDxH) with Carton |
| Weight |
7 kg |
| Accessories |
1 x Keyboard (USB)
1 x Mouse (USB)
1 x Warranty Card
1 x Power Cord
1 x User Manual (QIG)
1 x Driver CD
1 x Recovery CD (Ship with OS)
1 x Mouse Pad |
| Software |
PC-cillin 2012 Trial Version
Office 2010 starter
Nero 9 Essentials (ODD sku only) |
| Certificates |
BSMI, CB, CE, FCC, UL, CCC, Energy Star, EPEAT Gold, C-Tick |
| Utilities |
ASUS AI Suite II
ASUS Update
ASUS Q-fan II
ASUS EPU
F9 One Key Restore
ASUS Web-Storage
ASUS Secure Delete
ASUS AI Recovery(on selected models) |
| Note |
*1 Card Reader 6-in-1 including : SD/SDHC/MS/ MS Pro /MMC/XD
Only 1 PCI-e Extension Slot,support 1 card each time,
choosing from any of:
1 x Parallel+Com Port Combo Card (Multi I/O Card; on selected models)
1 x COM Port Card (1 port; on selected models)
1 x VGA card
Support Kensington security slot.
EPEAT country list please refer to:
https://www.epeat.net/ |
