All stock codes associated to this product
D2757Ph
D2757PH
27 inch 3D Monitor
Overview
The AOC 57 Series 3D range features AOC Cinema 3D technology to provide consumers with enhanced digital content consumption and creation, delivering cinematic quality pictures that make watching movies, playing games and editing photos an eye-catching experience. AOC 57 Series 3D includes 2D to 3D software that instantly takes you into another dimension, transforming games and movies to simulated 3D. Hundreds of popular PC games are compatible with instant 2D to 3D.
The ultra-narrow bezel around the screen is barely visible, creating a borderless display. Dual HDMI 1.4a ports support 3D movies or games with compatible Blu-ray players or gaming consoles like PS3 and Xbox 360.
Features:
Flicker Free 3D Monitor with Polarized Glasses
Flicker Free 3D technology adopts passive glasses for stereo 3D display. Insteadof rapidly switching each eye on and off, polarized glasses display continuousimages,using a different pattern for the left and right eyes, providing a pleasantviewing experience with vivid 3D images and a wide viewing angle.

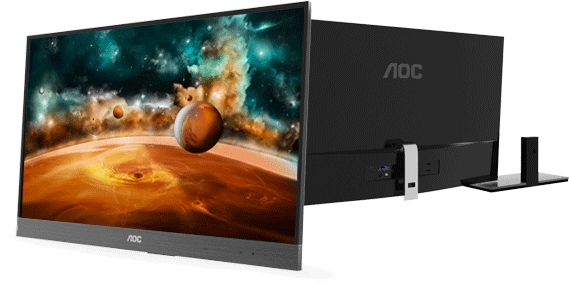

Borderless Design
Bezel 27" 2mm.
LED IPS panel for wide viewing angle and goodimage performance (D2757PH only)
Wide View
No changes in brightness or color from any viewing angle.
Real Color
Consistent, uniform color at all points on the screen.
Stable Panel
No trails, pudding or flashing from touching the screen.
Support 2D to 3D
Enjoy a simulated 3D view of any 2D content, with Hot Key control.
Direct Insert I/O
Direct insert connectors face the rear, making it easier to connect the monitor to power and input sources.
Dynamic Contrast Ratio(DCR)
Ultra-high Dynamic Contrast Ratio of 20,000,000:1 displays darker images with more depth and detail.
Ultra Low Power Consumption
The LED backlight panel requires 50% less energy than typical 4CCFL monitors.
Detachable stand
Standard Monitor or Photo Frame Style.
Multimedia-Ready with HDMI Input
HDMI (High-Definition Multimedia Interface) is the digital video and sound standard
for connecting the latest consumer electronics like Blu-ray players and game consoles.
Off Timer
To save power, a timer can be set to automatically turn off the monitor after a user-defined interval.
Specifications:
| Screen Size |
27"W |
| Viewable Image Size |
68.56cm |
| Pixel Pitch |
0.311(H)0.311 (V)mm |
| Display Area |
597.6(H)336.15 (V)mm |
| Brightness |
250 cd/m |
| Contrast Ratio (typical) |
20000000:1 (DCR) |
| Response Time (typical) |
5ms |
| Viewing Angle |
178/178 (CR10) |
| Scan Frequency |
H: 30K~83KHz V: 50~76Hz |
| Pixel Frequency |
144MHz |
| Recommended Resolution |
19201080@60Hz |
| Display Colours |
16.7M |
| HDCP Compatible |
Yes |
| Input Signal |
Analog RGB, HDMI*2 |
| Input Connector |
15-pin D-Sub and HDMI*2 |
| Power Supply |
110~240VAC, 50/60Hz |
| Power Consumption |
Power On: <40WTypical), Standby: <0.5W |
| Plug & Play |
DDC 2B/CI or VESA DDC2B |

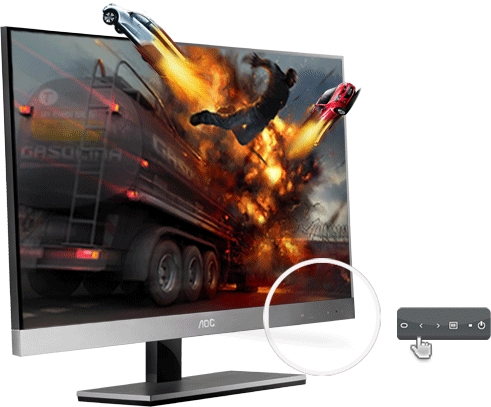

| User Control |
3D/<,Volume/>, Source/Auto/Exit, Power,Menu |
| OSD Languages |
16Languages |
| Speakers |
Yes |
| Safety & Regulations |
BSMI,VCCI,PSE,J-MOSS,MEPSKCC,e-standby, FCC, cCSAus, CE, EPA 5.0,Windows 7, RoHS |
| Wall-Mount |
NA |
| Cabinet Colour |
Black & Sliver |
| Mechanical Function |
Tilt: -5~15 |
| WHD (w/base)mm |
622 499 130 |
| WHD (package)mm |
714140490 |
| Weight (Net /Gross) |
5.7Kg/7.98Kg |
| Contrast Ratio |
NA |
| Brightness 3D |
95 cd/m |
| 3D Viewing Angle |
U/D 12 ( 3D CT<10 ) |
| 3D Watching Distance |
90cm (Typical) |
