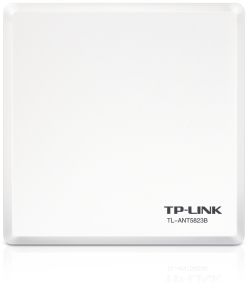

TP-Link TL-ANT5823B Outdoor Panel Antenna, 23dBi, Outdoor, Direction Operation, N Type Female Connector

No Longer Available

Part Number:

215846

(?) Brand:

TP-Link

Manuf No:

TL-ANT5823B
TLANT5823B

Shipping Weight:

2.5 KG (Includes product packaging)
Estimate Shipping

Date Added:

7/2/2013

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

TLANT5823B, TL-ANT5823B, 6935364052225

5GHz 23dBi Outdoor Panel Antenna

TL-ANT5823B

Highlights:

Compliant with 802.11a/n, 5GHz wireless application
23dBi signal gain
Direction operation
N Type Female connector
Provided mounting kits enable easy installation for various environments

Overview

What This Product Does

The TL-ANT5823B 5GHz 23dBi outdoor panel antenna is ideal for outdoor use by attaching to your wireless access points/routers which operate on less crowded 5GHz band, It could be used for long distance point-to-point connection, providing your stable wireless links. It is very easy to use, no configuration or software installation required.

Features:

Compliant with 802.11a/n, 5GHz wireless application
23dBi signal gain
Direction operation
N Type Female connector
Provided mounting kits enable easy installation for various environments

Specifications:

ANTENNA
Dimension	32032020(mm)
Frequency	5.15~5.85GHz
Impedance	50 Ohms
Gain	23dBi
VSWR(MAX.)	1.5
HPBW/H( )	12
HPBW/V( )	12
Polarization	Vertical or Horizontal
Connector Type	N Female
Mounting	Wall Mount / Pole Mount
Operating Temp.	-40~60(-40~140)
Storage Temp.	-40~60(-40~140)
F/B Ratio	28dB
Maximum Input Power	100W
Mounting Mast Diameter	30~50 mm
Radome Material	ABS
Standards	RoHS, WEEE
Survival Wind Speed	241Km/hr

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
