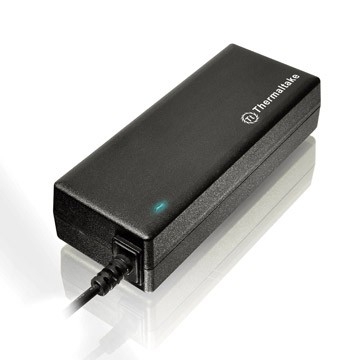

ThermalTake ToughPower Universal Notebook Power - 19V, 90W

IMG 1 of 1
No Longer Available
Part Number:
216300
(?) Brand:
ThermalTake Web Site
Manuf No:
TT-ADP90W0007RA
TTADP90W0007RA
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
TTADP90W0007RA, TT-ADP90W0007RA
Thermaltake ToughPower 90W Universal Notebook Power - 19V

Features:


  • Low-profile design packs easily.
  • Up to 100 watts--plenty of power for today's high performance laptop computers.
  • Compatible with leading laptop manufactures, includes 9 interchangeable DC output tips to support most brand name laptop computers.
  • Universal 19V output voltage.
  • Worldwide usability with universal AC input 115~230V.
  • High power-conversion efficiency circuitry.
  • ENERGY STAR qualified to save you money and help protect the environment.
  • High reliability: MTBF>100,000 hours.
  • Built-In Over Current, Over Voltage, Over Temperature, and Short-Circuit protection to prevent damage.
  • Safety / EMI Approvals: UL, TUV, CE, GOST, FCC and BSMI certified.


AC INPUT

Input Voltage: 115Vac ~ 230Vac
Input Current: 1.5A
Input Frequency: 20Hz ~ 60Hz

DC Output Voltage

19V

Max Output Current

4.74A

Total Power

90W

Max. Power

90W

Peak Power

100W





P/N

 ADP90W0007
Model TT-0901FP
Output Capacity 90W
Max. Output Capacity 90W
Colour Black
Dimension 31mm(H) x 129mm(D) x 51mm(W)
1.2(H) x 5.03(D) x 1.98(W)
PFC (Power Factor Correction) Active PFC
Power Good Signal N/A
Hold Up Time 12mS minimum. Tested 115Vac & 230Vac input and max load at output.
Input current 1.5A
Input Frequency Range 50Hz to 60Hz
Input Voltage 115Vac to 230Vac
Operating Temperature 0 to 40?
Operating Humidity 8 80% RH, Non-condensing
Storage Temperature -30 to +60?
Storage Humidity 8 80% RH, Non-condensing
Cooling System None
Efficiency 86% minimum @115Vac Full Load (Output 19V)
86% minimum @230Vac Full Load (Output 19V)
MTBF 100,000 hrs minimum
Safety Approval UL, TUV, CE, GOST, FCC certified.
Weight Net: 0.313Kg, 0.69lbs
Gross: 0.61Kg, 1.34lbs



* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
