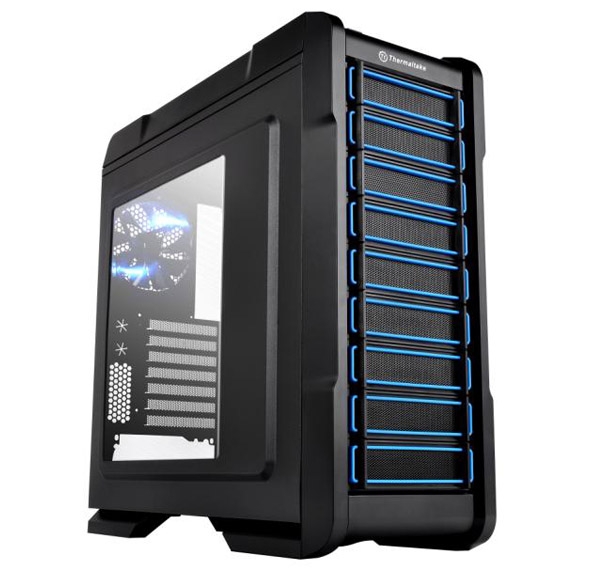

Thermaltake Chaser A31 mid-tower chassis
The new Thermaltake Chaser A31 gaming case designed for computer gamers and enthusiasts that deliver a combination of cooling, performance and expandability any full tower features within this ultra-mean case. It has an e-sports appearance and outstanding protection designs that characterize a unique personality. Take a look at the side, the transparent windowed panel offers the best inner view for built system see through. Since gaming hardware produces a lot of heat, therefore this enclosure is built for maximum cool with a perforated front bezel with two 120 mm fans at front and rear. The two USB 3.0 SuperSpeed ports are located on front panel for faster data transfer and easy access. There's even an user friendly tray on top for mobile, mp3player, digital camera have lying around. The Chaser A31 is maximally customizable to fit users needs; the modular design lets you modify the placement of the front fans and hard drive cages. Get ready to be envied at the next LAN party.

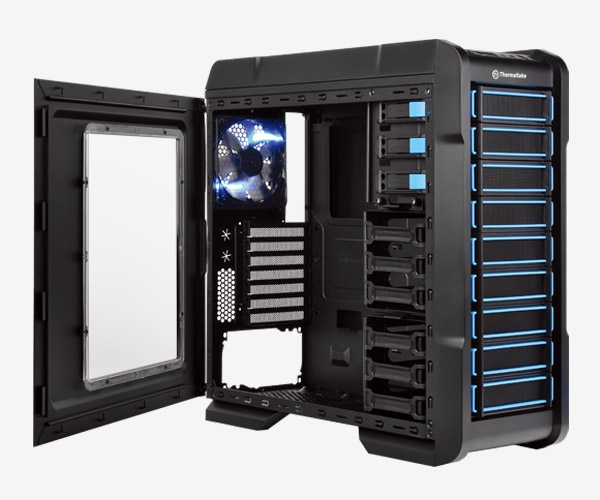

E-Sport Design
The black metal meshed highlighted with blue fluorescence stripes on the front panel combined with a windowed side panel, it hard not to get attention on!

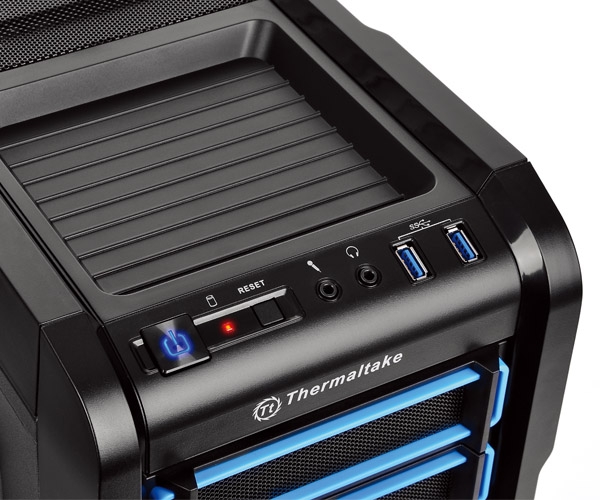

Handy Top Panel
Top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports, a HD microphone and headset jacks, plus a placement platform for users’ electronic devices such as USB/drives/mobile/MP3 laying on.
Smart 2 + 1

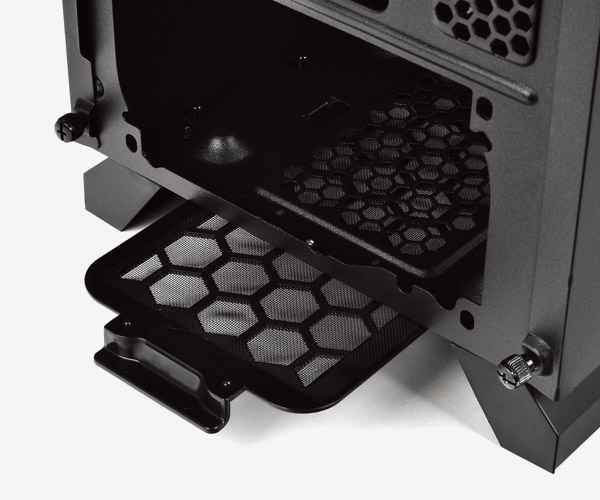

Preinstalled two 120mm fans with a back blue LED fan to optimize system ventilation. In order to keep the interior dust free, all intake ventilation holes come with dust protection including a removable dust filter at the bottom of the chassis.
Front Intake & Rear Exhaust
120mm black frame fan
120 mm black fan with Blue LED

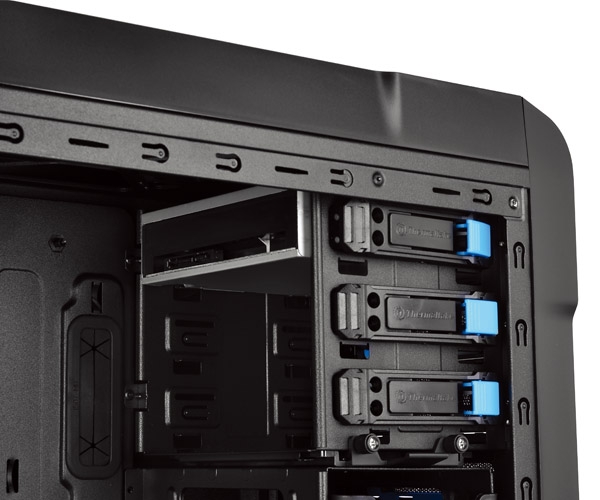

Tool-free innovation

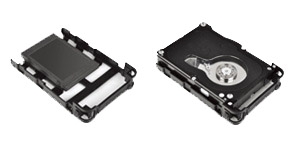

Innovative 5.25 & 3.5 tool-free drive bay design minumized the hassels of installing ODD, HDD and SSD devices.

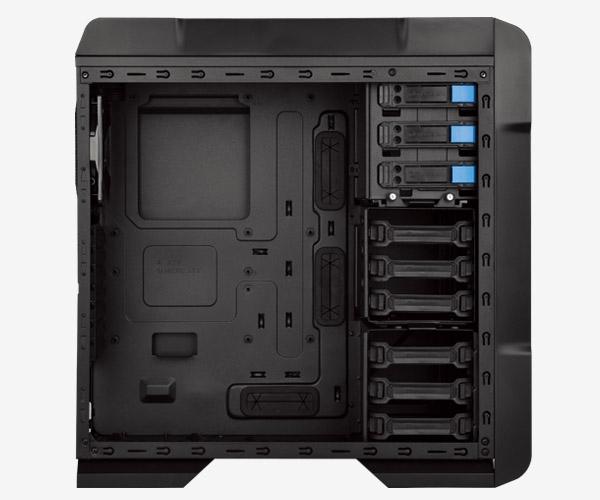

Convenient Support
Two retained holes support LCS, three retained holes for advanced cable management ,one large CPU cut-out to ease on CPU cooler installation and removable HDD rack for extra long graphic cards supporting.

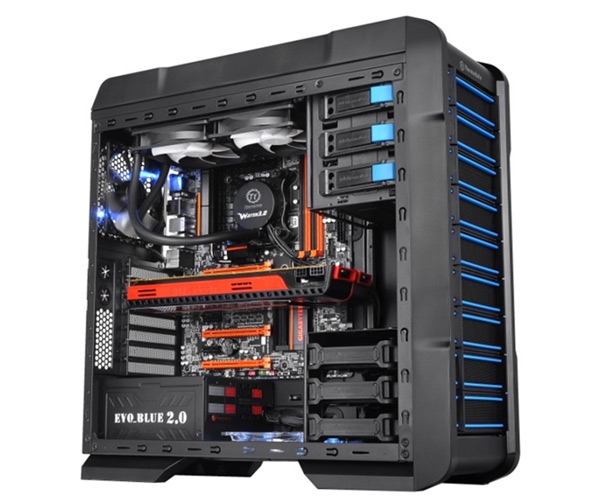

High-end Complete System on the go
Enables user to build up a complete high-end solution with ease with 240mm radiator liquid cooling system and extra long graphic card supported to protect user’s hardware and increase CPU’s overclocking potential, mostly importantly delivers outstanding cooling efficiency in the entire case.
Specifications:
| Case Type |
Mid Tower |
| Dimension (H x W x D) |
501 x 212 x 495mm (19.7 x 8.4 x 19.5 inch) |
| Net Weight |
6.5 kg/14.4 lb |
| Side Panel |
Transparent Window |
| Colour |
Exterior & Interior : Black |
| Cooling System |
Front (intake) :
120 x 120 x 25 mm Turbo fan x 1 (1000rpm, 16dBA)
120 x 120 x 25 mm (optional)
Rear (exhaust) :
120 x 120 x 25 mm Blue LED fan (1000rpm,16dBA)
Top (exhaust) : (optional)
120 x 120 x 25 mm fan x 2 or 140 x 140 x 25 mm fan x 2
Bottom (Intake) : (optional)
120 x 120 x 25 mm fan
|
| Drive Bays |
- Accessible: 3 x 5.25 , 1 x 3.5 (Converted from one 5.25 drive bay)
- Hidden: 6 x 3.5 or 2.5
|
| Expansion Slots |
7 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
| I/O Ports |
USB 3.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU (optional) |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Other |
CPU cooler height limitation:
160mm
VGA length limitation:
290mm(with HDD rack)
410mm(without HDD rack) |
