All stock codes associated to this product
2AEHS60AC1M11S, 2AEHS-60AC1-M11S, POWEROCKAX500, POWEROCK-AX500

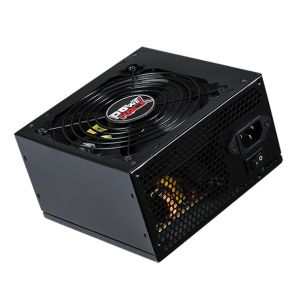

PoweRock AX 500
- Complies to Intel ATX 2.2 specification.
- Active PFC circuit at highest 79% efficiency.
- Support the latest PCI-E 2.0 specification.
- Dual +12V rail for the best system compatibility.
- Multi-protection (OVP/ OPP/ SCP/ OYP) ensuring the system stability.
- Long Sleeved Cables Support High-end Chassis allowing Best Flexibility.
- 12cm Silent Fan with Smart Fan Speed Control.
Features
Intel Specification
Complies with Intel ATX 12V v2.3 power supply design guide.
Dual +12V Rails
2-rail, +12V design, capable of supplying higher power output.
Multi-protection
Over-voltage, over-current, Over-power and short-circuit protection to ensure the system stability.
Active PFC Design
Active PFC circuit design ensures a high steady output with lower power loss, save both the energy and your cost.
PCI-E 2.0 Ready
Support the latest specification (6+2)-Pin.
12cm Cooling Fan
12cm silent cooling fan with smart fan control sensor.
Sleeve Cable
Sleeve cable for good air convection and tidiness.
Specifications:
| Model Name |
PoweRock AX 500 |
| Dimension ( D x H x W ) |
140 x 150 x 86 mm |
| Weight |
1.64kg |
| Input Voltage |
230Vac only |
| Input Frequency Range |
50/60 Hz |
| PFC Type |
Active PFC |
| Fan Type |
12cm Sleeved Bearing |
| Capacitor Type |
Taiwan CAP |
| 80PLUS Approve Level |
N/A |
| Operation Temperature |
25 |
| Protection |
OVP/SCP/OCP/OPP |
| Output Capacity |
500W |
| Max. Output Capacity |
640W |
| MTBF |
50,000hrs |
| Safety Approval |
CE, CB |
| Certifications |
RoHS |
| Main Connector |
20+4pin x 1(550mm) |
| CPU Connector |
4+4pin x 1(550mm) |
| PCI-E 2.0 Connector |
6+2pin x 2 |
| SATA Connector |
5 |
| PATA Connector |
3 |
| Floppy 4pin Connector |
1 |
