Vivotek CC8130 Compact Cube Network Camera - 1 Megapixel CMOS Sensor, 180 Degree Horizontal Panoramic View, Real-Time H.264, MJPEG Compression (Dual Codec), 30fps @ 1280x800 - White

IMG 1 of 1
No Longer Available
Part Number:
217844
(?) Brand:
Vivotek
Manuf No:
CC8130
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
12/3/2013
Details Files Images & Video
Need a webcam to work from home because of COVID-19?
Due to flight restrictions and lack of stock there are very limited options
Please check the webcams available for fast dispatch.
All stock codes associated to this product
CC8130, VTCC8130, VT-CC8130

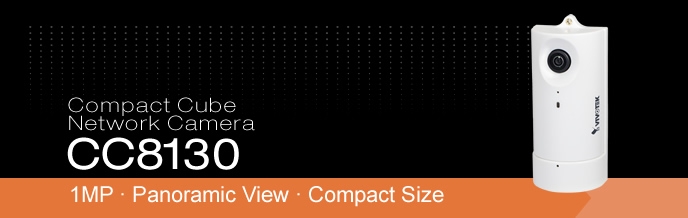

Compact Cube Network Camera CC8130

Overview

VIVOTEK CC8130 is a compact cube camera especially designed for indoor surveillance. The unique design makes it the best choice for boutique, department or convenience stores. The ability to view at a wide angle at 180 degrees provides complete video security with no dead angles. The unique mounting design facilitates easy installation on a wall or desktop, capturing faces at eye level. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius.

The CC8130 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease.

Features

  • 1-Megapixel CMOS Sensor
  • 180 Horizontal Panoramic View
  • Compact, Elegant Design
  • Real-time H.264 and MJPEG Compression (Dual Codec)
  • 30 fps @ 1280x800
  • Built-in IEEE 802.3af Compliant PoE

Specifications:

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 128 MB
RAM
  • 128 MB
Camera Features
Image sensor
  • 1/4" Progressive CMOS
Maximum Resolution
  • 1280x800
Lens Type
  • Fixed-focal
Focal Length
  • 1.3 mm
Aperture
  • F1.8
Field of View
  • 180 (horizontal)
  • 100 (vertical)
  • 180 (diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
Minimum Illumination
  • 0.47 Lux, 50 IRE
Pan / Tilt / Zoom
  • ePTZ:
    • 4x digital zoom (IE plug-in)
Video
Compression
  • H.264 & MJPEG
Maximum Frame Rate
  • H.264: 30 fps at 1280x800
  • MJPEG: 30 fps at 1280x800
Maximum Streams
  • 2 simultaneous streams
S/N Ratio
  • Above 56 dB
Video Streaming
  • Adjustable resolution, quality and bitrate
Image Settings
  •
  • Adjustable image size, quality and bit rate
  • Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings
Audio
Audio Capability
  • Audio input
Compression
  • G.711
Interface
  • Built-in microphone
Effective Range
  • 5 meters
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF
  • Supported, specification available at www.onvif.org
Interface
  • 10Base-T/100 BaseTX Ethernet (RJ-45)
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, periodical trigger, system boot, recording notify
Alarm Events
  • Event notification using HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
  • RJ-45 for Network/PoE connection
LED Indicator
  • System power and status indicator
Power input
  • IEEE 802.3af PoE Class 1
Power consumption
  • Max. 3.8W
Dimensions
  • 28mm (D) x 50mm (W) x 88mm (H) (Body only)
  •
    • 35mm (D) x 53mm(W) x 118mm (H) (With stand)
Weight
  • 94 g
Safety Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature
  • 0C ~ 40C
Warranty
  • 24 months
System Requirements
Operating System
  • Microsoft Windows 7/Vista/XP/2000
Browser
  • Mozilla Firefox 7~10 (streaming only)
  • Internet Explorer 7.x or 8.x
Other Players
  • VLC: 1.1.11 or above
  •
    • QuickTime: 7 or above

No additional files, specification sheets, guides or documentation found for product.
