Vivotek IP8152 Mini-Box Network Camera - 1.3 Megapixel CMOS

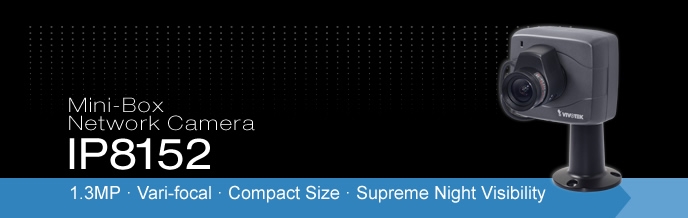

1.3MP Vari-focal Compact Size Supreme Night Visibility Mini-Box Network Camera IP8152





VIVOTEK IP8152 features a brand new box camera design concept from VIVOTEK, with a compact size and a multitude of features. The small size makes it an easy to fit into different types of enclosures with different lens options, with the ability to fit a CS-mount lens making it a flexible solution for all types of surveillance. The Supreme Night Visibility features results in excellent video quality in low light environments; pairing with the built-in IR-cut filter further increase the range of visibility at night by allowing the use of IR illuminators. With all of these features and more, the camera is especially suitable for city surveillance, retail stores, government, industrial applications or hotel security.



The IP8152 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease.





System Information CPU Multimedia SoC (System-on-Chip) Flash 16 MB RAM 256 MB

Camera Features Image sensor 1/3" Progressive CMOS Maximum Resolution 1280x1024 Lens Type Vari-focal (IP8152) Fixed-focal (IP8152-F4) Focal Length f = 3.3 ~ 12 mm (IP8152) f = 4 mm (IP8152-F4) Aperture F1.4 (wide), F2.4 (tele) (IP8152) F1.6 (IP8152-F4) Auto-iris DC-iris (IP8152) Fixed-iris (IP8152-F4) Field of View IP8152 34 ~ 74 (horizontal) 25 ~ 60 (vertical) 40 ~ 95 (diagonal) IP8152-F4 76 (horizontal) 60 (vertical) 99 (diagonal) Shutter Time 1/15 sec. to 1/25,000 sec. Day & Night Removable IR-cut filter for day & night function Minimum Illumination IP8152 0.11 Lux @ F1.4 (Color) 0.001 Lux @ F1.4 (B/W) IP8152-F4 0.12 Lux @ F1.6 (Color) 0.001 Lux @ F1.6 (B/W) Pan / Tilt / Zoom ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) On-board Storage Micro SD/SDHC/SDXC card slot

Video Compression H.264 & MJPEG Maximum Frame Rate H.264: 30 fps at 1280x1024 MJPEG: 30 fps at 1280x1024 Maximum Streams 2 simultaneous streams S/N Ratio Above 58 dB Dynamic Range 67 dB Video Streaming Adjustable resolution, quality and bitrate Configurable video cropping for bandwidth saving Image Settings   Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings

Audio Audio Capability Audio input/output (full duplex) Compression G.711 Interface External microphone input External line output

Network Users Live viewing for up to 10 clients Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X ONVIF Supported, specification available at www.onvif.org Interface 10Base-T/100 BaseTX Ethernet (RJ45)

Intelligent Video Video Motion Detection Triple-window video motion detection

Alarm and Event Alarm Triggers Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection Alarm Events Event notification using HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

General Connectors RJ-45 for Network/PoE connection Audio input Audio output RS485*1 Digital input*1 LED Indicator System power and status indicator Power input IEEE 802.3af PoE Class 2 Power consumption Max. 3.4W Dimensions 39mm (D) x 80mm (W) x 70mm (H) (Body only) 88mm (D) x 80mm (W) x 70mm (H) (IP8152) 52mm (D) x 80mm (W) x 70mm (H) (IP8152-F4) Weight 176 g (Body only) 233 g (IP8152 With lens) 202 g (IP8152-F4 With lens) Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick Operating Temperature 0C ~ 50C Warranty 24 months

System Requirements Operating System Microsoft Windows 7/Vista/XP/2000 Browser Mozilla Firefox 7~10 (streaming only) Internet Explorer 7.x or 8.x Other Players VLC: 1.1.11 or above   QuickTime: 7 or above
