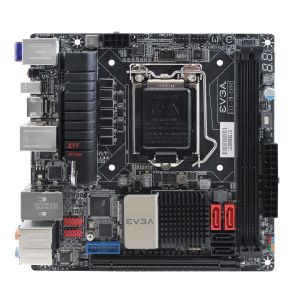

EVGA Z77 Stinger (mITX)
P/N: 111-IB-E692-KR
Overview
They say big things come in small packages. They are right. The EVGA Z77 Stinger has arrived and this board brings enthusiast features, overclocking and performance, to a mITX form factor. Features like native PCI-E 3.0, SATA 6G and USB 3.0 are included here, along with an Intel Gigabit Network controller, Mini DisplayPort, HDMI and more!
EVGA knows that power is critical for a performance board, no compromises were made because of the size. The EVGA Z77 mITX features 7+1 power phases, complete with POSCAP and Solid State capacitors delivering clean, stable power to your CPU for maximum over clocking support.
Don't let the small size fool you, the EVGA Z77 Stinger has plenty of storage options. Native USB 3.0 support delivers super speed performance for next generation storage devices, and native SATA 6G enables maximum performance on the latest solid-state and mechanical storage drives.
Key Features
USB 3.0 Support
SATA 6G Support
HDMI 1.4 connector: Fully integrated support for HDMI 1.4 including xvYCC, Deep color and 5.1 digital surround sound.
Supports Intel Core i5 and i7 Socket 1155 Processors
8 Channel High Definition Audio
100% Solid State Capacitors: Higher quality, longer lifespan
EVGA Vdroop Control: Improves overclocking stability
EVGA E-LEET Tuning Support: Enthusiast software for adjusting overclocking in O.S.
Onboard Clear CMOS, Power and Reset Buttons: System essentials at the touch of a button
Onboard CPU Temperature Monitor: Monitor your CPU temps quickly and easily
DisplayPort 1.1a:
PCI Express 3.0 Support: Designed for the new PCI Express 3.0 bus architecture offering the highest data transfer speeds for the most bandwidth-hungry games and 3D applications, while maintaining backwards compatibility with existing PCI Express motherboards for the broadest support.
Specifications:
Performance
Based on Intel Z77 chipset
Memory
2 x 240-pin DIMM sockets
Maximum of 16GB of DDR3 2133MHz
Storage I/O
4 x Serial ATA 300MB/sec (2x Internal + 2x E-SATA) with support for RAID 0, RAID1, RAID 0+1, RAID5, RAID10 and JBOD
2 x Serial ATA 600MB/sec (2 Internal) with support for RAID 0 and RAID1
Expansion Slot
1 x PCIe x16, 1 x Mini PCIe
Multi I/O
Audio connector (Line-in, Line-out, MIC)
Integrated Peripherals
8 Channel High Definition (ALC889)
1 x 10/100/1000 (Intel 82574L)
Form Factor
Mini-ITX Form Factor
Length: 6.7in - 170.18mm
Width: 6.7in - 170.18mm
Operating System Support
Windows 8 32/64
Windows 7 32/64bit
Windows Vista 32/64bit
Windows XP 32/64bit
