All stock codes associated to this product
VN10031W2NB, VN10031W2N-B

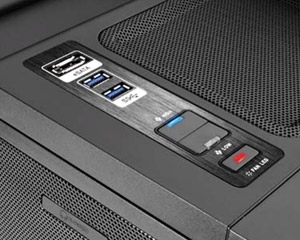

- FrontSpeed 2: USB 3.0 SuperSpeed
- PitStop 5: EasySwap HDD bays
- TripleMax: Ready for extra-long graphics card up to 14.2”/36 cm
- Triple Colorshift: Adjustable fan ambience colors
- CableClear: Advanced cable management
- S.S.S.: Smart Lock Security System
- CoolFlux: Bigwater 850GTS water-cooling integrated

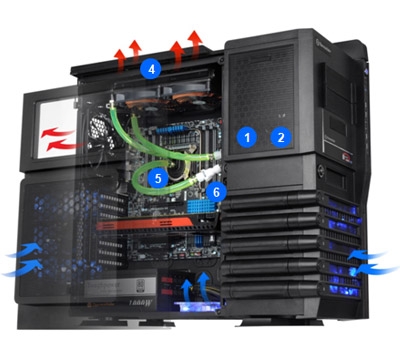

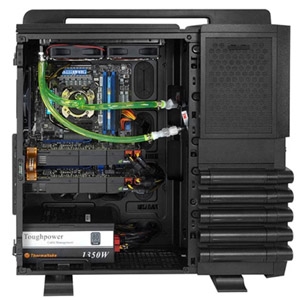

Unique Design - Liquid Cooling System
Refill Reservoir
Transparent reservoir contains 330 c.c. of liquid capacity, easy to refill.
P500 Pump
Flow rate : 500L/hr, can easily handle extra water blocks for GPU, memory, HDD or chipsets.
Motorsports Radiator
Dimple Tube Technology with louvered fin radiator greatly increases the surface area for added cooling capability.
CPU Water Block
Pure Copper Base for maximum heat conductivity from heat source.
Quick Connector
Automatic non-spill valves, robust material one hand operation.
Unique Design

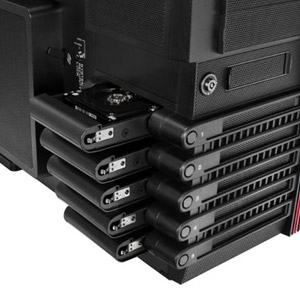

Unique Easy Swap HDD bays
Ready for extra-long graphics card up to 14.2”/36 cm
Colorshift Fan
Fan Speed & Light Control Knob - fan speed & color mode controller
Red Color Mode
Blue Color Mode
Green Color Mode
Off
Single Color Flash Mode
Mixed Color Flash Mode

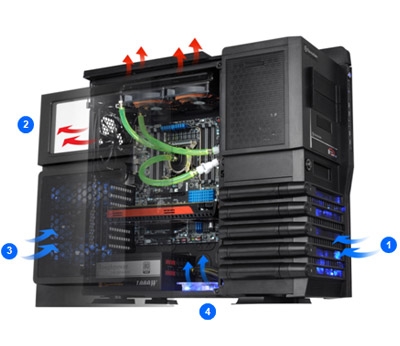

The Cooling System - Air Cooling
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Colorshift fan (600~800rpm, 13~15dBA)
CPU Air Cooling System
2. Rear (exhaust) : 140 x 140 x 25 mm Turbo fan (1000rpm,16dBA)
VGA Air Cooling System
3. Side (intake) : Plug&Play 200 x 200 x 30 mm Colorshift fan (600~800rpm, 13~15dBA)
4. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
20cm Front Colorshift Fan
20cm Side Colorshift Fan
14cm Rear Fan
Optional 12cm bottom fan
Specifications:
| P/N |
VN10031W2N-B |
| Case Type |
Full Tower |
| Dimension W / H / D |
584 x 282 x 590 mm (23 x 11.1 x 23.2 inch) |
| Weight |
17.4Kg / 38.4lb |
| Cooling System |
Front (intake) :
200 x 200 x 20 mm Colorshift fan x 1 (600~800rpm, 13~15dBA)
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm,16dBA)
Side (intake) :
Plug&Play 200 x 200 x 30 mm Colorshift fan (600~800rpm, 13~15dBA)
Bottom (Intake) : 120 x 120 x 25 mm (optional)
|
| Drive Bays |
- Accessible: 2 x 5.25, 1 x 3.5
- HDD Easy swap: 5 x 3.5 or 2.5 |
| Expansion Slots |
8 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) , 12 x 13 (Extend ATX)
|
| I/O Ports |
USB 3.0 x 2, USB 2.0 x 4, eSATA x 1, HD Audio x 1
|
| Liquid Cooling System Application |
- Dual 5.25 Drive Bay design: Pre-built liquid cooling system
- Quick Disconnect Connector: Automatic non-spill valves, robust material one hand operation
- 240mm Motorsports Radiator:
(A) Dimple Tube Technology with louvered fin radiator
(B) Dual silent 120mm variable resistor fan spinning from 1000~2000RPM
High-performance Liquid Pump:
Powerful DC 12V liquid pump (500L/hr)
Pure Copper Water Block:
For Intel LGA2011/1366/1156/1155/775 and AMD AM2+/AM2/K8
- Reservoir: Contains 330 c.c. of liquid capacity
- Water tube: Durable transparent UV tube (3/8) |
