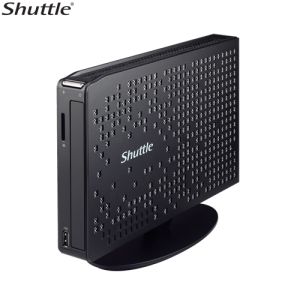

Shuttle XS35GS V3L Desktop Barebone
  • Atom D2550(1.86GHz), 2xDDR3 SO-DIMM, 1x2.5" SATA HDD, 1xMini-PCIE Slot, 1xSD Memory Card Reader, HD7410M, V0GA, HDMI, USB2.0, 3Chl-HD Audio

IMG 1 of 6
No Longer Available
Part Number:
218541
(?) Brand:
Shuttle Web Site
Manuf No:
XS35GS-V3L
XS35GSV3L
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
25/3/2013
Details Files Images & Video
All stock codes associated to this product
XS35GSV3L, XS35GS-V3L

XS35GS V3L


Features

Tailored for HTPC & Office system

The Shuttle XS35GS V3L comes with the latest Intel Atom Processor D2550, build-in AMD Radeon HD 7410M graphics card, powerful slim design provide users better 3D display performance, smooth play Full HD 1080p Blu-ray high-definition video and audio. In addition, the fanless design can ensure a passively cooled, quiet, dust-free and low energy consuming operating environment. The slim and compact design meets the requirement of VESA Mount Standard, which can be mounted to the rear of the monitors or TV. If you are looking for a small but powerful HTPC or office system, the XS35GS V3L could be your choice.

Intel Atom D2550 Dual-Core Processors


The shuttle ultra slim XS35GS V3L comes with power-saving Intel Atom D2550 dual-core Processor, and Intel NM10 Express Chipset, with best-in-class capabilities for various applications.

Dual Display Support


The XS35GS V3L supports HDMI and D-sub dual monitor video outputs which allow users to switch between mirrored and extended desktop mode on external displays. Designers and those in other professions can get more work done and has an increase in productivity.

VESA Mount Capability


Designed to fit easily into any environment, the Shuttle XS35GS V3L Slim PC is capable of mounting to the rear of a LCD monitor or a TV with the standard of VESA mounting. This space saving capability makes it easy to blends into any of your environment.

24/7 nonstop operation


Shuttle XS35GS V3L is officially approved for 24/7 permanent operation. Thanks to its low power consumption and completely passively cooling, this PC runs highly reliable making it perfectly suitable for digital signage and other vertical applications.

Advanced Graphic Performance

Shuttle XS35GS V3L special built-in AMD Radeon HD 7410M graphic card fully support for DirectX 11, enhanced 3D performance and smooth playback of Full HD 1080p Blu-ray high-definition video and audio, provides users with better 3D display performance.

Fanless Design- Quiet, Dust-Free, and Energy-Efficient


Its a conventional way using a fan as a cooling solution to dissipate heat away inside a computer. It usually generates noise, draws dust into the system as well as takes up the inner space. The Shuttle XS35GS V3L is completely fanless to ensure the passively cooled, quiet, dust-free and low in energy use operating environment.

Generous Supply of I/O ports

With the slim PCs advantages, XS35GS V3L is small but has multiple I/O ports, contains five USB ports, SD card reader, HDMI and D-sub connector and Kensington lock for computer security.

Specifications:

FORM FACTOR 1.5 L slim form factor
PROCESSOR Intel Atom D2550 dual core processor
CHIPSET Intel NM10 Express Chipset
MEMORY 2x DDR3 SO-DIMM slot supports up to 4GB DDR3 1066 MHz
VGA Built-in AMD Mobility Radeon HD7410M GPU
Support 1080P and Blue-ray playback
Support D-sub + HDMI dual display
AUDIO IDT92HD81
2.1 channel High Definition Audio
ETHERNET Realtek RTL8411
Supports 10/100/1000 Mb/Sec.
802.11b/g/n WLAN support
STORAGE INTERFACE Support 1 x 2.5" SATA HDD, 5400 / 7200RPM
Support 1 x SD Memory Card reader
FRONT PANEL (1) Power button
(1) Power LED
(1) HDD LED
(1) USB 2.0 port
(1) SD card reader
(1) ODD bay
BACK PANEL (1) RJ45 LAN port
(1) D-sub VGA port
(1) HDMI
(4) USB 2.0 ports
(1) Line out port
(1) MIC in port
(1) Kensinton lock
(1) DC-in
DRIVE BAYS (1) 2.5" HDD / SSD bay
(1) Slim ODD bay
DIMENSIONS 252(L) x 38.5(W) x 162(H) mm
POWER 40W Power Adaptor
Input 100 240V AC
Output 19V 2.1A DC
ACCESSORIES " Optional " PV01 (VESA Mount)
" Optional " PHD2 (Second HDD bracket)
EXPANSION SLOT (1) Mini-PCIE slot (default for WLAN)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year RTB

Full manufacturers warranty details are available at the manufacturers (Shuttle) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
