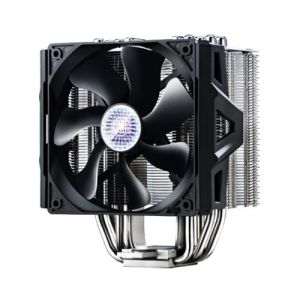

CoolerMaster TPC 612 CPU Cooler - LGA2011, LGA1366, LGA1156, LGA1155, LGA775, AMD FM1, AM3+, AM3, AM2+, AM2, Rifle Bearing, 120mm Fan, 600~2000rpm, 24.9~82.9CFM, 9~36dBA

IMG 1 of 5
No Longer Available
Part Number:
218614
(?) Brand:
CoolerMaster Web Site
Manuf No:
RR-T612-20PK-R1
RRT61220PKR1
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
26/3/2013
Details Files Images & Video
All stock codes associated to this product
RRT61220PKR1, RR-T612-20PK-R1, ACCORRT61220PK
TPC 612

(RR-T612-20PK-R1)

Introduction

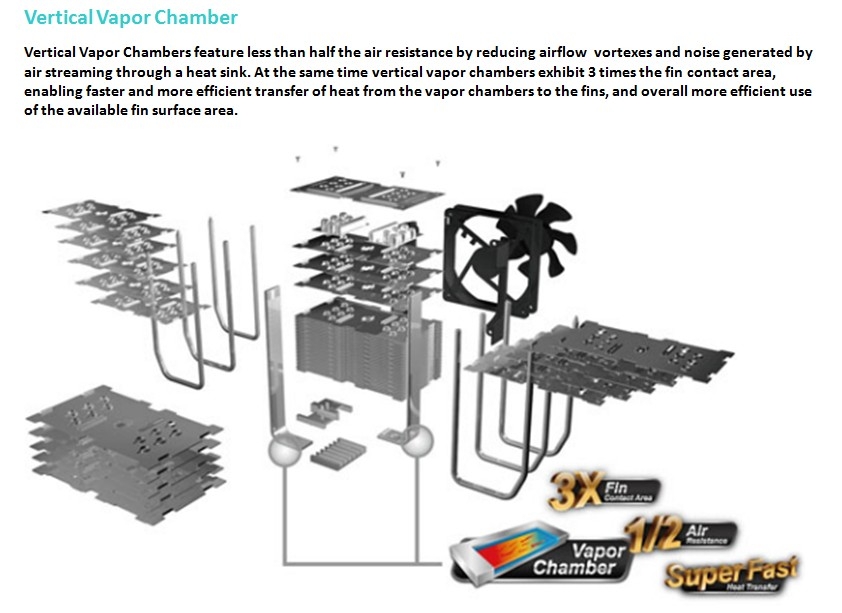

TPC 612 is the next generation of CPU cooler thanks to new vertical vapor chamber technology combined with four 6mm heat pipes. A nickel plated, pure polished copper base spreads heat into a tall, aluminum alloy heat sink ensuring optimal cooling. TPC 612 has a slimmer heatsink than the TPC 812 to support overclocking memory modules.

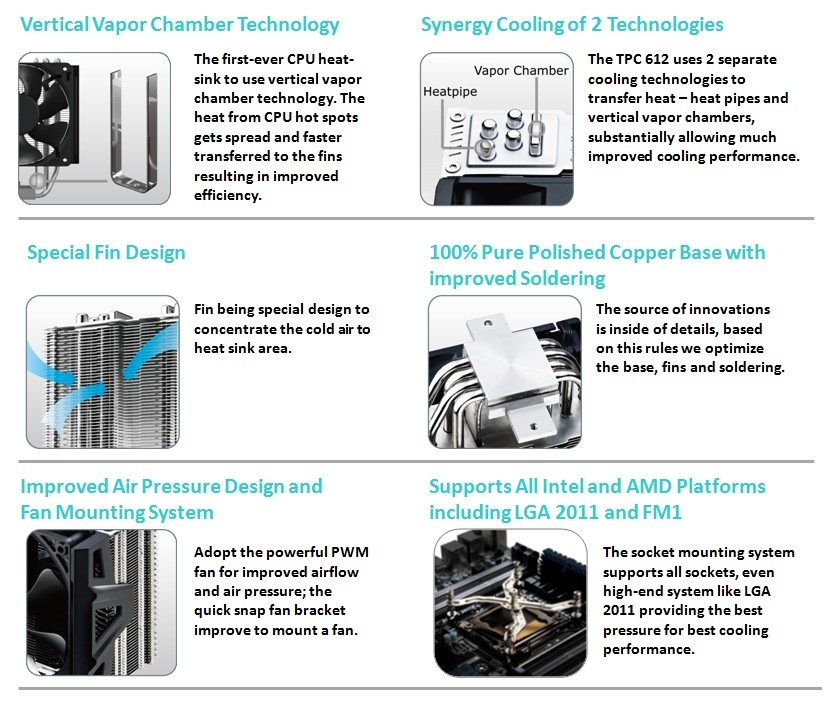

Features

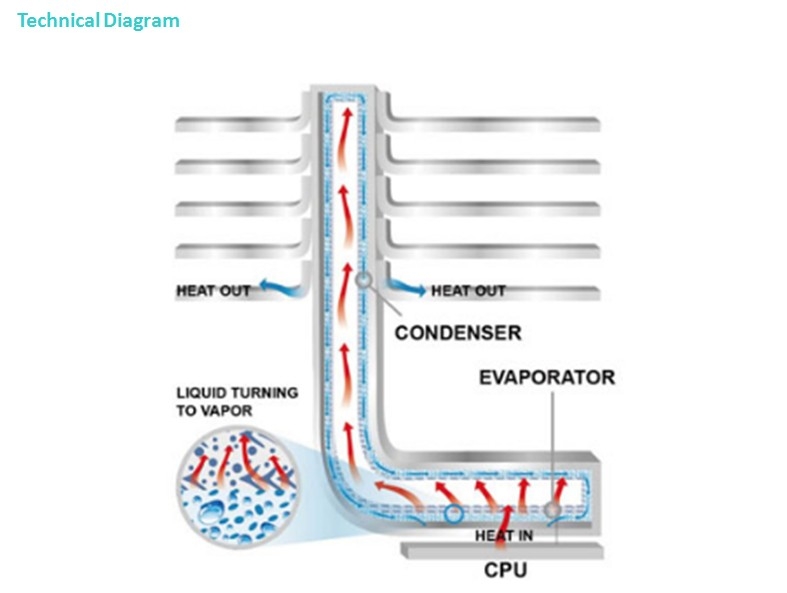

  • The TPC 612uses 2 separate cooling technologies to transfer heat heat pipes and vertical vapor chambers.
  • 100%pure polished copper base combined with improved soldering technologies for the best thermal transfer
  • Special fin design - heatsink receives concentrated cold airflow
  • Slim heatsink provides great compatibility for overclocking memory modules with tall heat spreader
  • Clip-on fan mounting bracket


Specifications

CPU Socket Intel Socket:
LGA 2011/1366/1156/1155/775

AMD Socket:
FM1/AM3+/AM3/AM2+/AM2

Dimension 145 x 97 x 161.6 mm / 5.7 x 3.8 x 6.4 inch

Weight 762g / 1.7 lbs

Heat Sink Material Copper Base / 1 Vapor Chamber/ 4 Heatpipes / Aluminum Fins

Fan Dimension 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch

Fan Speed 600 ~ 2,000 RPM (PWM) 10%

Fan Airflow 24.9 ~ 82.9 CFM 10%

Fan Air Pressure 0.3 ~ 2.7 mm H2O 10%

Bearing Type Rifle Bearing

Fan Life Expectancy 40,000 hrs

Fan Noise Level (dB-A) 9 ~ 36 dBA

Connector 4-pin

Note * Supplied accessories may differ by country or area. Please check with your local distributor for further details.

Heat Sink Dimensions 134 x 85 x 161.6 mm /5.3 x 3.4 x 6.4 inch

Heat Sink Weight 640g / 1.4 lbs

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
