ASUS Radeon HD 7790 - 1GB GDDR5 - (1075MHz, 6400MHz)
  • 128-bit, 2xDVI, 1xDisplayPort, 1xHDMI, PCI-Ex16 v3.0, Fansink

IMG 1 of 5
No Longer Available
Part Number:
219043
(?) Brand:
ASUS Web Site
Manuf No:
EAH7790-DC2OC-1GD5
EAH7790DC2OC1GD5
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
EAH7790DC2OC1GD5, EAH7790-DC2OC-1GD5
HD7790-DC2OC-1GD5

ASUS HD 7790 DirectCU II cards offer cool gaming graphics

  • OC-selected 1075MHz core, 75MHz higher than reference for smoother gaming
  • DirectCU II achieves 20% lower temps and vastly quieter performance than reference with direct-contact copper heatpipes and dual fans
  • GPU Tweak helps you modify clock speeds, voltages, fan performance and more, all via an intuitive interface


Overview

Stay cool for gaming bliss

The ASUS HD 7790 DirectCU II graphics card improves performance through the use of a 1075MHz GPU and proprietary DirectCU II thermal innovation. It runs 20% cooler and significantly quieter than reference HD 7790 designs, allowing for better overclocking. The higher performance ceiling can be tapped by exclusive GPU Tweak, a user-friendly graphics card tuning utility. The HD 7790 DirectCU II offers great value DirectX 11.1 gaming and multimedia performance with power-efficient 28nm GPU technology. It supports the newest PC games in mid to high settings in 1080p, and can easily handle high definition multimedia content acceleration.

ASUS Exclusive Innovation

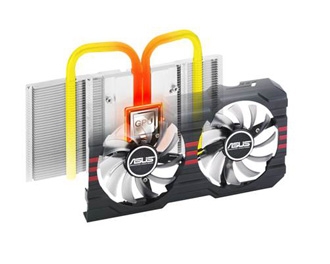

DirectCU II

20% cooler and vastly quieter

Flattened copper heatpipes make direct contact with GPU surfaces so heat is dissipated efficiently, delivering 20% cooler and vastly quieter performance than reference.

1075MHz Boost Clock


1075 MHz Boost clock for better performance and outstanding gaming experience.

DirectCU II

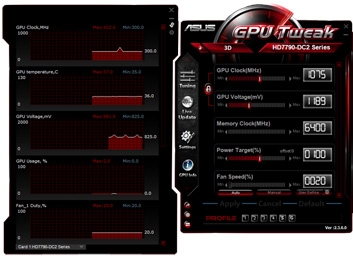

GPU Tweak

Real-time intuitive graphics tuning

  • Shows detailed specs and actual card status with GPU-Z
  • Monitoring widget provides real-time detailed multi-parameter info
  • Automatically checks and updates drivers and BIOS versions
  • Sync GPU clocks and voltages for easier overclocking
  • 2D/3D switcher locks cards in 3D mode for higher benchmarks

DIGI+VRM with Super Alloy Power

Gigantic 1GB GDDR5 Memory

On-board memory for the best gaming experience & the best resolution.

Graphics GPU Features

Powered by AMD Radeon HD 7790
 NVIDIA GPU Boost
AMD Eyefinity Technology
Extend the view across up to 6 displays to immerse yourself in gameplay and entertainment.
Adaptive Vertical Sync
CrossFire X Support
Multi-GPU technology for extreme performance. 		PhysX by NVIDIA
AMD HD3D Technology
Optimize stereoscopic 3D gaming and movie-watching entertainment.
PCIE 3.0
PCI Express 3.0
Delivers double the bandwidth per lane of PCIe 2.0 for faster GPU-CPU communication. 		Full DirectX 11.1 API support
Microsoft DirectX 11.1 API (feature level 11_0)
Brings new levels of visual realism to gaming on the PC and get top-notch performance.
PCIE 3.0
Microsoft Windows 8 compatible
Gives you access to advanced computing experiences with the latest operating system so you get more done with your PC.

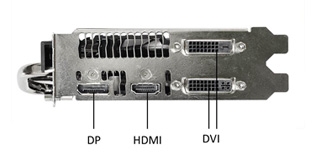

I/O Ports Highlight

Native HDMI x 1

Native DisplayPort x 1

DVI Output: Yes x 1(DVI-D), Yes x 1(DVI-I)



Specifications:

Graphics Engine
AMD Radeon HD 7790

Bus Standard
PCI Express 3.0

Video Memory
GDDR5 1GB

Engine Clock
1075 MHz

Memory Clock
6400 MHz ( 1600 MHz GDDR5 )

Memory Interface
128-bit

Resolution
DVI Max Resolution : 2560x1600

Interface
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes

Accessories
1 x CrossFire cable
1 x DVI to D-Sub adaptor

Power Consumption
up to 150W1 additional 6 pin PCIe power required

Software
ASUS GPU Tweak & Driver

ASUS Features
DirectCU Series
OC Series

Dimensions
8.5 " x 5.1 " x 1.5 " Inch
21.59 x 12.95 x3.81 Centimeter

Note
Specifications are subject to change without notice.
PCB color and bundled software versions are change without notice.
Brand and product names mentioned are trademarks of their respective company.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
