Urban S71 mainstream full-tower, categorized in Thermaltake latest chassis collection Urban Series. The entire series has a simple and elegant aesthetic, design for users who looks for everything but a flamboyantly appearance.

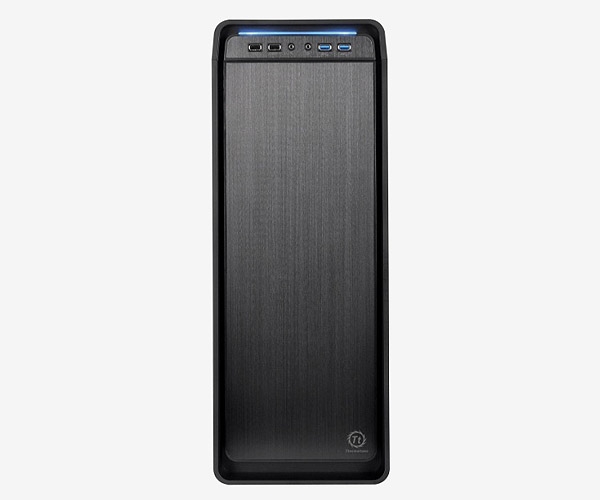

Built with brushed aluminum finish front door panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet sophisticate aesthetic.
Handy I/O ports

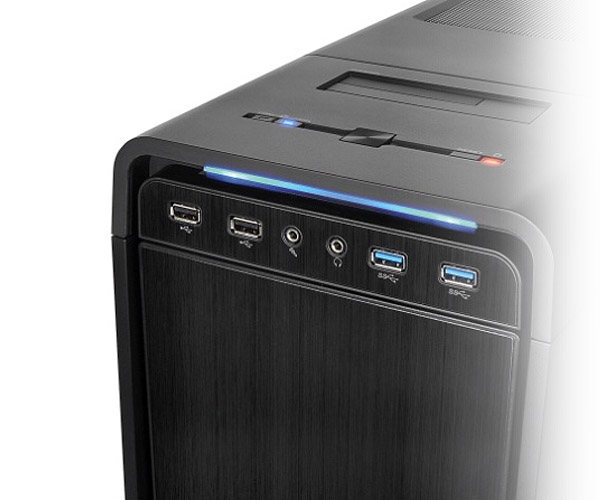

The front-top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports along with two USB 2.0 ports, a HD microphone and headset jacks, to grand direct access when needed.
Extreme silent performance

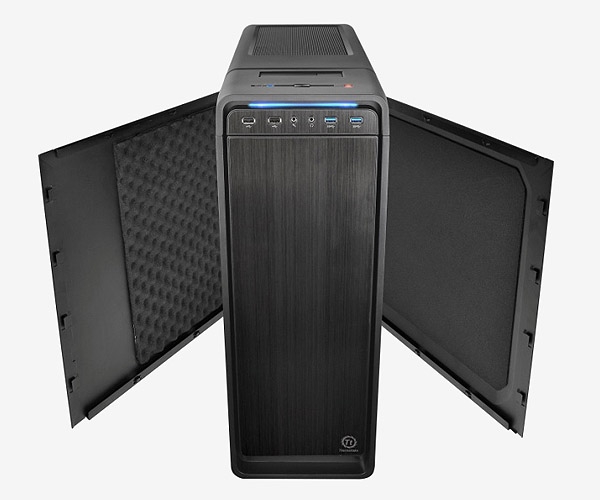

The preinstalled sound-damping foams for extreme silence purpose on both side panels of Urban S71 reduce noise and acoustic levels within the chassis.
Easy Hot Swap

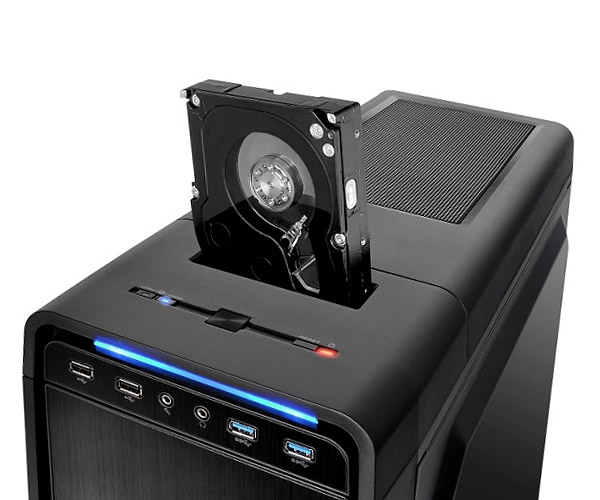

Top-mounted 2.5” or 3.5”HDD Docking Station enables blazing fast file transfer and effortless hot-swap drive replacement design for easy setup or removal of HDD.
Innovative tool-less design

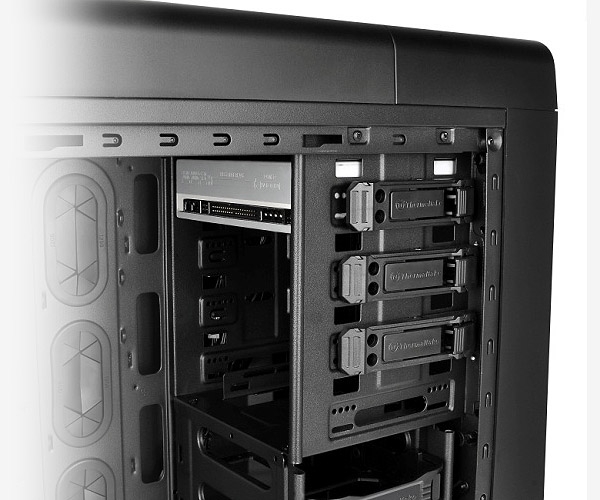

The latest tool-less innovation with 5.25 & 3.5 tool-free drive bay design minimized the hassles of installing ODD and HDD devices.
Advanced Ventilation

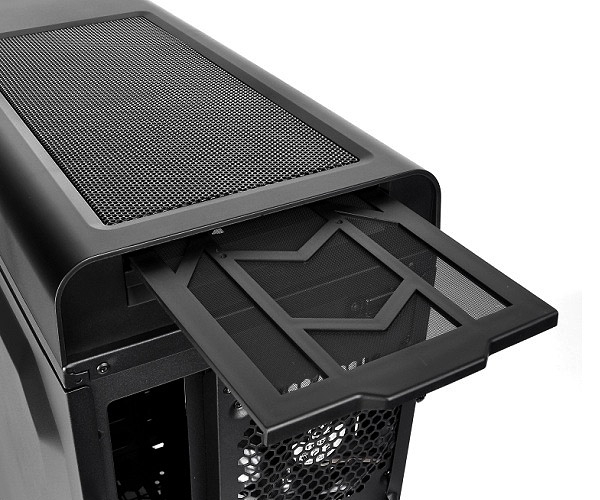

Preinstalled two of 200mm speed control fans at the front and top plus a rear 120mm turbo fan optimize system ventilation in Urban S71. In order to keep the interior dust free, all intake ventilation holes come with dust protection including removable dust filters at the top, front and bottom of the chassis.
Stress-free Cable Management

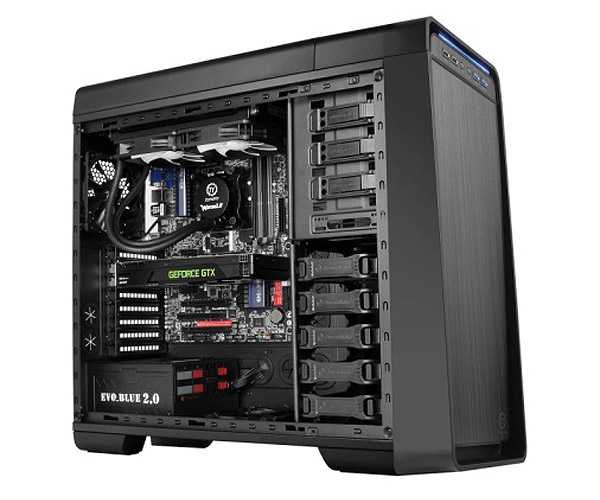

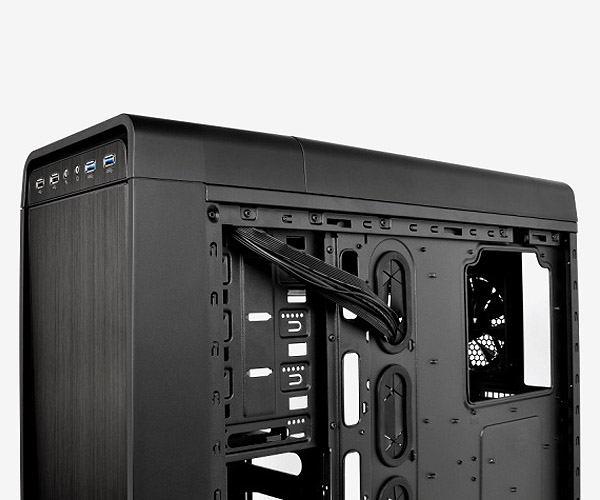

Wide cable routing gap for easy cable management and hiding cables behind motherboard tray, to ensure smoothness for build and tinker (upgrade), reduce wiring tangled, as well as better airflow and dust management.
High-end Complete System on the go
Enables user to build up a complete high-end solution with ease with 240mm radiator liquid cooling system and extra long graphic card supported to protect user’s hardware and increase CPU’s overclocking potential, mostly importantly delivers outstanding cooling efficiency in the entire case.
Specifications:
| Model |
VP500M1N2N |
| Case Type |
Full Tower |
| Dimension (H x W x D) |
534 x 213 x 584 mm
(21.0 x 8.4 x 23.0 inch)
|
| Net Weight |
10.5Kg / 23.2 lb |
| Side Panel |
No Window |
| Color |
Exterior & Interior : Black |
| Material |
SECC |
| Cooling System |
Front (intake) :
200 x 200 x 30 mm fan (600~800rpm,13~15dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm,16dBA)
Top (exhaust) :
200 x 200 x 30 mm fan (600~800rpm, 13~15dBA)
Bottom (intake) : (Optional)
120 x 120 x 25 mm fan or 140 x 140 x 25 mm fan
|
| Drive Bays |
- Accessible : 3 x 5.25, 1 x 3.5
- Hidden : 5 x 3.5 or 2.5
- Docking : 1 x 3.5 or 1 x 2.5
|
| Expansion Slots |
8 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX) |
| I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU (Optional) |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Other |
CPU cooler height limitation: 160mm
VGA length limitation: 344mm |
