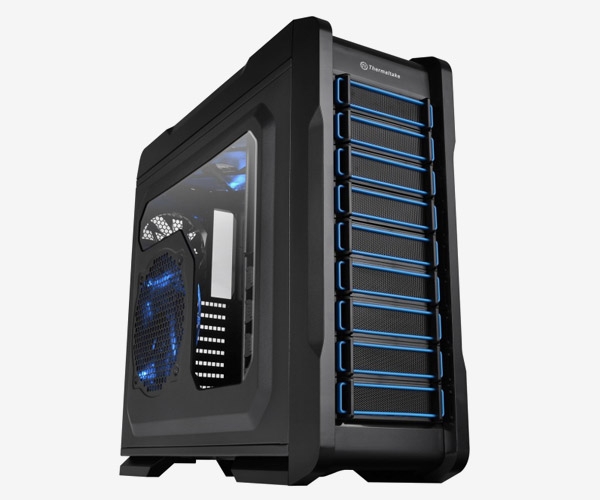

The black metal meshed highlighted with blue fluorescence stripes on the front panel combined with a windowed side panel, it hard not to get attention on!

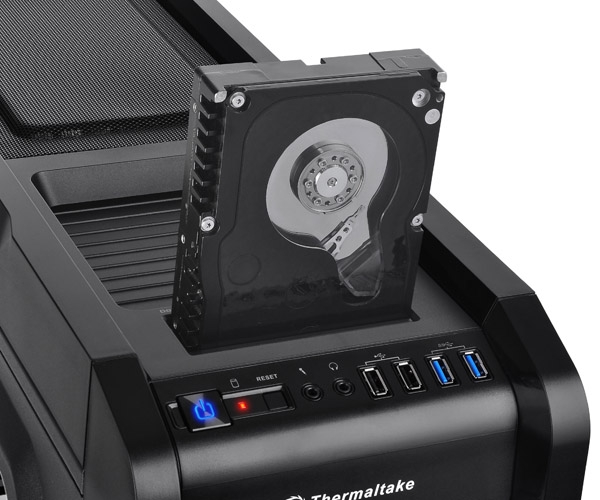

Top-mounted 2.5 or 3.5HDD Docking Station enables blazing fast file transfer and effortless hot-swap drive replacement.

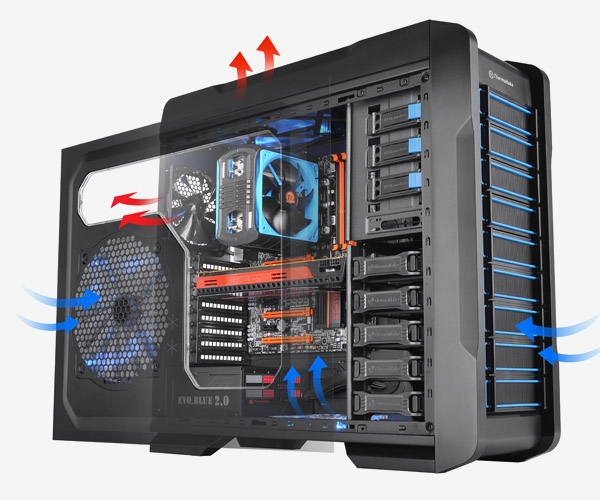

Supreme Ventilation
Preinstalled one 120mm rear fan; three large 200mm fans located at front, top-mounted and side including blue LED to optimize system cooling solution for extreme airflow. In order to keep the interior dust free, all intake ventilation holes come with dust protection including a removable dust filter at the bottom of the chassis.

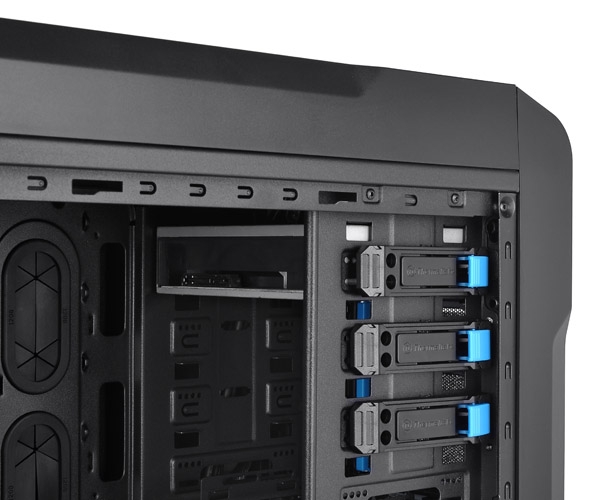

Innovative tool-less design
Innovative 5.25 & 3.5 tool-free drive bay design minimized the troubles of installing ODD, HDD and SSD devices for more expandabilities.
Convenient Support

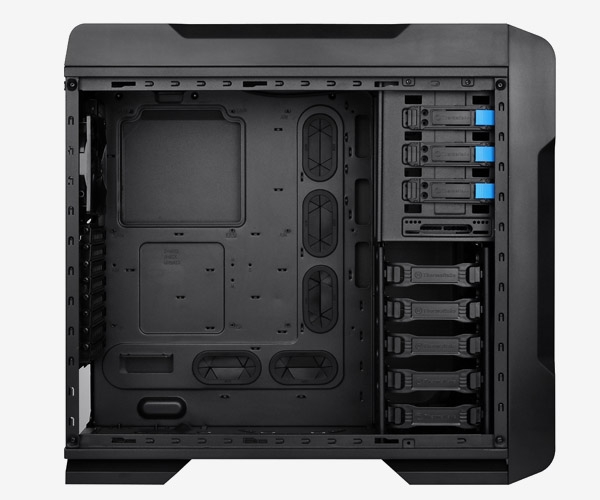

Two retained holes with rubber grommet to support LCS, five retained holes for advanced cable management ,one large CPU cut-out to ease on CPU cooler installation

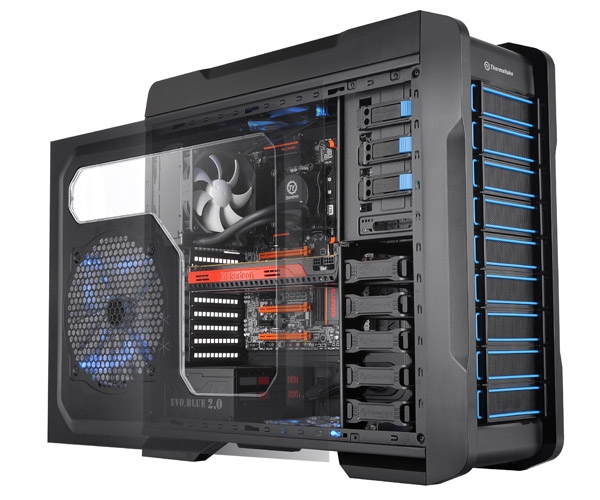

High-end Complete System on the go
Enables user to simply build up a complete high-end water cooling solution with 240mm radiator liquid cooling system and extra long graphic card supported to protect users hardware and increase CPUs overclocking potential, most importantly delivers outstanding cooling efficiency in the entire case.

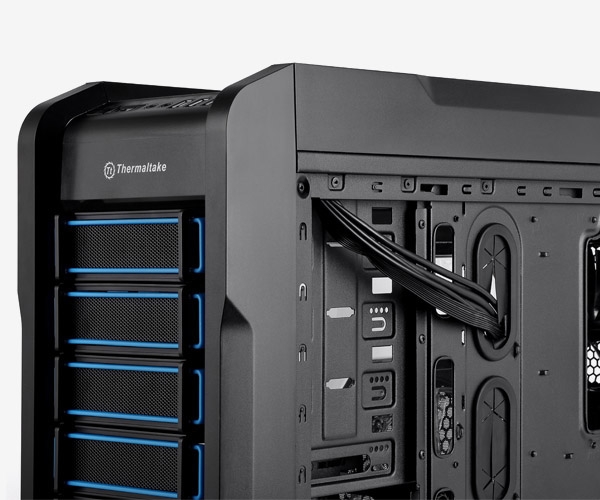

Stress-free Cable Management
Wide cable routing gap for easy cable management and hiding cables behind motherboard tray, to ensure smoothness for build and tinker (upgrade), reduce wiring tangled, as well as better airflow and dust management.
Specifications:
Case Type |
Full Tower |
Dimension (H x W x D) |
537 x 221 x 565mm (21.1 x 8.7 x 22.2 inch)
|
Net Weight |
10 kg/22.1 lb |
Side Panel |
Transparent Window |
Color |
Exterior & Interior : Black |
Material |
SECC |
Cooling System |
Front (intake) : 200 x 200 x 30 mm fan (600rpm, 13dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Top (exhaust) : 200 x 200 x 30 mm Blue LED fan (600rpm, 13dBA) Side (intake): 200 x 200 x 20 mm Blue LED fan (600rpm, 13dBA) Bottom (intake) : (Optional) 120 x 120 x 25 mm or 140 x 140 x 25 mm
|
Drive Bays |
- Accessible : 3 x 5.25, 1 x 3.5 - Hidden : 5 x 3.5 or 2.5 - HDD Docking : 1 x 3.5 or 2.5
|
Expansion Slots |
8 |
Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX)
|
I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
PSU |
Standard PS2 PSU (Optional)
|
LCS Upgradable |
Supports 1/23/81/4 water tube
|
Other |
CPU cooler height limitation: 160mm VGA length limitation: 344 mm |
