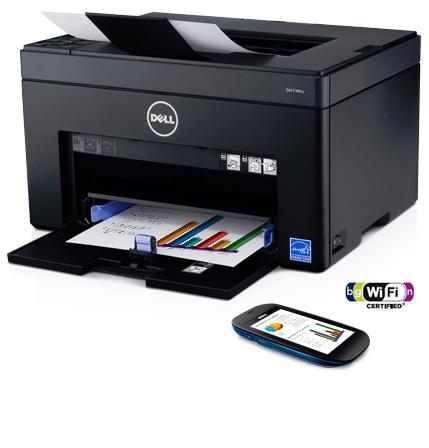

Print brilliant, high-quality color with an easy-to-use, affordable device. The C1660w color printer with LED technology and wireless connectivity helps enhance efficiency.
Print brilliant color from a compact design that helps save space in small to midsize businesses and home-office environments.
Speed through tasks
Print up to 12 ppm in black (A4/Letter) and up to 10 ppm in color (A4/Letter) with 150-sheet input tray, 10-sheet bypass tray and 100-sheet output bin.
Print from mobile devices
Print directly from Android mobile devices with Dell Mobile Print app or from iOS mobile devices with Mobile Print App for Dell (available in 2013).
Print directly from Android mobile devices with Dell Mobile Print app or from iOS mobile devices with Mobile Print App for Dell (available in 2013).
Simple to use and maintain
Join the network: Experience wireless network connectivity with easy WiFi setup and install.

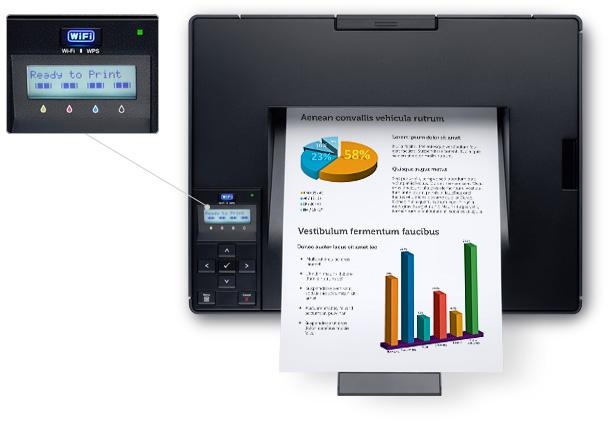

Operate with ease: Initiate tasks quickly using a two-line LCD display with five-way key and two LED indicators.
Keep maintenance costs low: Save on upkeep with a single drum/fuser unit designed to last the life of the printer. All you have to replace are the toner cartridges.
Save resources: Designed for energy efficiency, the ENERGY STAR®-qualified C1660w features innovative LED printing technology.
Superb quality meets solid reliability
Crisp, vivid prints
Impress with crisp text and brilliant color prints with up to 1200 dpi image quality. Discover rich, true-to-life tones with Color by Dell technology.
Reliable performance
Handle high-volume printing jobs with a large duty cycle of up to 30,000 pages a month. Experience excellent print quality and reliable printing with Dell Clear View LED technology.
Service and support
Gain peace of mind with Dells standard 1-Year Limited Hardware Warranty and 1-Year Advanced Exchange Service. Optional Limited Hardware Warranty extensions are available for up to four years.
Specifications:
-
Print Speed (PPM)
Simplex, 600x600dpi (default): Mono/Color
Up to 12 ppm mono and up to 10 ppm color (A4)
(Actual print speed vary with use)
Print Resolution
600 x 600 dpi (up to 1200dpi IQ)
First Page Out:
From Ready state (Simplex Letter, 600 dpi):
equal or less than 21 sec (mono) , 25 sec (color)
Data Streams:
Host-based
User Interface:
2 Line LCD
5 Way key
Power LED
Wi-Fi Blue LED with WPS button
Print Management
Dell OpenManage Printer Manager
Dell Printer Configuration Web Tool
Dell ColorTrack 1.0 and Dell Toner Management System
Dell Open Print Driver
-
Page Layout Options
Portrait or Landscape orientation
Multiple copies
Multipage printing (N-up)
Manual duplex printing (Mac and Windows Driver only)
Poster (only for Windows Driver)
Booklet printing (only for Windows Driver)
Watermarks (only for Windows Driver)
Collate
Rotation
Media
Media Input Sources
Standard:
150-sheet
Media Output Destinations
Standard:
100-sheet bin
Standard 150-sheet:
A4 SEF
B5 SEF
A5 SEF
Letter SEF
Executive SEF
Folio (8.5" x 13") SEF
Legal SEF
Com-10 SEF
Monarch/DL
C5 SEF
Custom paper size:
Width: 3" to 8.5" (76.2mm to 215.9mm)
Length: 5" to 14" (127mm to 355.6mm)"
Types:
Plain paper (Normal, Thick)
Cover (106-163g/m6)
Coated paper (106-163g/m6)
Label; Envelope
Recycle Paper
Hagaki (190gsm)
-
Usage Rate
Maximum Usage Rate(Duty Cycle):
Up to 30,000 pages per month
Memory7
- Standard Memory
128MB RAM
Read-only Memory (ROM):
8MB
Operating System
- Client operating systems:
Microsoft Windows 8 32bit/64bit
Microsoft Windows 7 32bit/64bit
Windows Vista 32bit/64bit (Home Basic, Home Premium, Ultimate, Business)
Windows Server 2008 32bit/64bit
Windows Server 2008 R2
Windows XP 32bit/64bit (Home & Pro)
Windows 2003 Server 32bit/64bit
Windows Server 2012 64bit.
Mac OS:
10.4.11 or later (Power PC 32 bit/ Intel 32 bit)
10.5 with latest update (Power PC 32/64 bit/ Intel 32/64 bit)
10.6 with the latest update (Intel 32/64 bit)
10.7 with the latest update
Networking
- Interfaces:
USB2.0 High speed and Wireless :
WiFi (b/g/n)
WPA2.0 (Personal)
WPS
Languages and fonts:
GDI
Wireless:
WiFi (b/g/n)
WPA 2.0 (Personal)
WPS
Transport/Network protocols:
Port 9100, LPD/LPR
TCP/IP
HTTP
SNMP (v1, v2)
BOOTP
DHCP
RARP
Auto IP
DNS
mDNS
IPv4/IPv6 (DHCP v6 Lite)
Media Access Control (MAC) Address
48-bit address space (MAC-48, EUI-48 supported)
Security Protocol:
WPA - TKIP or AES
WEP - 64/128 Bits
-
Power Specification
100 vac models: 100 to 127 vac 10 %, 50 3 Hz / 60 3 Hz nominal
120 vac models: 100 to 127 vac 10 %, 50 3 Hz / 60 3 Hz nominal
230 vac models: 220 to 240 vac 10 %, 50 3 Hz / 60 3 Hz nominal
Power Consumption (Energy Star compliant):
Continuous printing:
250 W/h
Standby mode:
40 W/h
Power Saver mode: Sleep
Equal to or less than 8 W/h
Power Saver mode: Deep Sleep
Equal to or less than 1.5 W/h
Ship-With Capacity
500 capacity8 (Black) ; 500 page capacity8 (CMY)
Standard Capacity:
1,250 page capacity8 (Black) ;1,000 page capacity8 (CMY)
Dimensions
-
Printer Dimensions (W x D x H)
15.5" x 11.8" x 8.9" (394mm x 300mm x 225mm)
Printer Weight
23.1 lbs (10.5 kg) (with consumables)
Shipping Dimensions (W x D x H)
20.7" x 17.0" x 15.0" (525mm x 431mm x 380mm)
Shipping Weight:
28.7 lbs (13.0kg)
Regulatory
- Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Operating Environment
Temperature:
41F to 90F (5 C to 32 C)
Relative Humidity:
15% to 85% RH, non-condensing
Altitude:
10,170 ft (3100 m)
Contents in the Box
Dell C1660w Color Printer
Software and Documentation CD (Printer Driver & Dell Toner Management Software)
Dell C1660w Ship-With Black Cartridge (500 page yield9)
Dell C1660w Ship-With Color Cartridges (500 page yield9)
Power Cord
USB cable
Placemat
Important Information booklet
Quick Reference Guide (US only)
NoM Techsheet (US only)
Blue Angel Techsheet (Europe only)
GS-Mark Techsheet (Europe only)
Hardware Recycle Program label and instructions
Retail Warranty Techsheet
Safety Precaution Techsheet.
