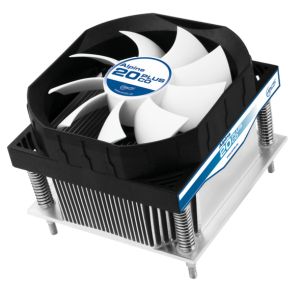

Alpine 20 PLUS CO
Intel CPU Cooler for Quietness
Description
5x More Durable: Ideal for Servers and Workstations. Besides the different bearing the Alpine 20 PLUS CO (Alpine PLUS series) offers the same outstanding noise/performance ratio as the Alpine 11 Plus and Alpine 64 Plus.
Continuous Operation
The Alpine 20 PLUS CO is ideal for entry level servers running 24/7, offering an extended service life of up to 5 times of standard models. Its high quality dual ball bearing from Japan reduces rotational friction and is less sensitive to dust and high temperature, making it more durable and wear resistant than the common fluid dynamic bearing.
Excellent Cooling Performance
The 92 mm PWM fan, aluminum heatsink in combination with pre-applied MX-4 high performance thermal compound provide excellent cooling performance and improved heat transfer from the CPU. Test results from Mod Your Case have shown that this cooler is much more efficient than the boxed cooler in lowering the CPU temperature under load.
Cooling Performance on AMD A3830 APU (Load)
Alpine 64 PLUS
42.1oC*Boxed cooler
68
oC*
Better
Stress test with Prime95
*The Alpine 64 PLUS, Alpine 11 PLUS, and Alpine 20 PLUS CO are all based on the same Alpine PLUS series and thus come with an equivalent noise/performance ratio.
Ultra Quiet
According to a test by VR-Zone, the noise level of this cooler is cut by nearly half comparing the results of the boxed cooler. Thanks to the PWM control, the fan speed adjusts according to the CPU temperature and thus the noise level remains at an absolute minimum which qualifies it as a silent cooler. Click here to see how the PWM control settings can be changed according to your performance and noise preference.
Noise Level on AMD X4 955 (Load)
Alpine 11 PLUS
37.9 dBA*
Boxed cooler (at 2,030 RPM)
65.4 dBA *
Better
Tested with SL-5868P digital sound level meter
*The Alpine 64 PLUS, Alpine 11 PLUS, and Alpine 20 PLUS CO are all based on the same Alpine PLUS series and thus come with an equivalent noise/performance ratio.
Reliable Installation
The pre-installed spring-loaded screws allow hassle-free setup and at the same time, protect your mainboard during the installation process with optimized contact pressure. On the other hand, it saves you one more step with th pre-applied MX-4 thermal compound.
Specifications:
| Max. Cooling Capacity |
130 Watts |
| Fan (mm) |
92 mm |
| Bearing |
Dual Ball Bearing |
| Noise Level |
0.5 Sone @ 2,200 RPM |
| Current / Voltage |
0.24A / 12V |
| Power Consumption |
2.88 Watts |
| Product Dimensions (L x W x H) |
99(L) x 95(W) x 80(H) mm |
| Net Weight |
440 g |
| Rated Fan Speed |
600 - 2200 RPM (Controlled by PWM) |
| Heatsink |
Aluminum Extrusion |
| Limited Warranty |
6 years |
| itemnumber |
UCACO-AP11401-BUA01 |
| UPC |
0872767006201 |
| Gross Weight |
0 kg |
