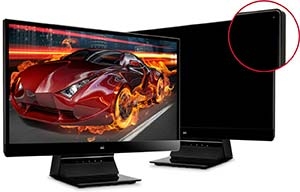

Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. ViewSonic VX70 series SuperClear IPS monitors feature a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With their sleek, eye-catching design, our elegant IPS monitors look as good as they perform.

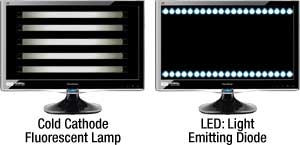

The term "LED monitor" generally refers to a monitor with a LCD panel and a LED backlight. A typical LCD monitor uses cold cathode fluorescent lamps (CCFL) as a light source to illuminate the LCD panel. In an LED backlit monitor, white LEDs (Light Emitting Diodes) are used as the light source. Environmentally friendly LED backlights provide the following benefits:
- About 40%* less power consumption compared to traditional CCFL monitor
- 30,000,000:1 MEGA Dynamic Contrast Ratio
- Environmentally friendly mercury-free backlight
- Low EMI (Electro Magnetic Interference)
- Slimmer design
- Weight reduction

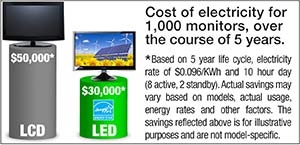

Save Cash and Save the Planet
With its mercury-free backlight and low energy consumption, the ENERGY STAR certified VX2270Smh-LED saves your electricity bill. The savings of LED can add up to thousands of dollars saved for large install bases, such as big corporate buildings or schools. The savings can be as dramatic as $20,000 in five years!
sRGB Color Correction Technology Delivers the Most Accurate Color Performance Available
ViewSonic LED monitors embedded sRGB color correction technology reproduce 100% sRGB rich color for color performance matching original input sources without decreasing or leveraging color quality. sRGB ensures all displayed images/videos are as natural as the original sources, displaying real color for captured camera and camcorder content.
MEGA dynamic contrast ratio
One of the great features of VX2270Smh-LED is its ability to dim the backlight completely for pure darkness during dark scenes, such as a night shot in a movie. Contrast ratios refer to the ratio of the brightest color to the darkest color. With traditional CCFL backlit displays, contrast ratios are limited to the fluorescent lamps ability to dim, in order to reproduce darkness. However, with the LED backlight, each LED has the ability to completely shut-off allowing for a near infinite ratio of black to white contrast. The end result is true blacks that result in greater overall image quality.
Full HD 1080p Resolution
The VX2270Smh-LED features a 22" (21.5 viewable) widescreen with 1920x1080 resolution is capable of displaying a native Full HD 1080p image. Today, devices that can display Full HD content output are getting more and more common. However, without a native Full HD display, you will not be able to experience the picture clarity and the details of the 1080p content you view.
Eco-mode for up to 30%* energy savings
ViewSonics proprietary Eco-mode function comes standard with the VX2270Smh-LED. When you dont need all the power the VX2270Smh-LED has to offer, you have the option to reduce the monitors brightness, save energy, save the planet and prolong the lamp life. You can select one of the Optimize or Conserve options and save up to 30% energy. Especially under low ambient light conditions, adjusting the brightness will improve visibility by reducing eye fatigue. Reducing brightness will also prolong the monitors lamp life, improving your return on investment.
Industry-Leading Pixel Performance Guarantee and 3-Year Limited Warranty
One of the aspects that make ViewSonic a market leader in displays is its dedication to quality. ViewSonic is committed to using the highest grade panels, and offers an industry-leading pixel performance policy. We also back our displays with a 3-year limited warranty for your peace of mind.
| Pixel Performance |
17" / 19"
4:3 or Wide LCD
|
20"+ Wide LCD |
|
ISO9241-3:2008 Standard
|
3 Bright
3 Dark
5 Total
|
3 Bright
3 Dark
5 Total
|
|
ViewSonic Pixel Guarantee
|
2 Bright
2 Dark
3 Total
|
2 Bright
2 Dark
3 Total
|
Dimensions and Other features:
Specifications:
LCD
Type
21.5" Wide Color TFT Active Matrix IPS LED
Display Area
18.7" horizontal x 10.5" vertical; 21.5" diagonal
Optimum Resolution
1920x1080 Full HD
Contrast Ratio
1000:1 (typ.); 30M:1 (Dynamic)

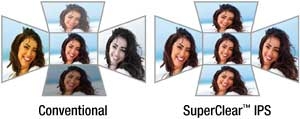

Viewing Angles
178 horizontal, 178 vertical
Response Time
7ms (GTG)
Light Source
WLED with 30,000 hrs (Min)
Brightness
250 cd/m2 (typ.)
Panel Surface
Anti-glare, hard-coating (3H)
VIDEO INPUT
Analog/Digital
RGB analog (0.7 / 1.0 Vp-p, 75 ohms) / DVI-D (TMDS, 100 ohms) / HDMI
Frequency
Fh: 24~83kHz, Fv: 50~76Hz
Sync
Separate Sync
COMPATIBILITY
PC
PC compatibles (from VGA up to 1920x1080 non-interlaced)
Mac
Power Mac Up to 1920x1080
CONNECTOR
Analog/Digital
15-pin mini D-sub (VGA) / HDMI / DVI-D (with HDCP)
USB
N/A
Audio Input
3.5mm mini-jack
Headphone
3.5mm mini-jack
Power
External power adapter
AUDIO
Speakers
Built-In Speaker
POWER
Voltage
AC 100240V (universal), 50 / 60Hz
Consumption
26W (typ) / Optimize 22W (typ.)/ Conserver 19W (typ.)
Eco Mode
22W (Optimize) / 19W (Conserve)
Power Save Mode
1W
CONTROLS
Basic
Power, 1, up, down, 2
OnView
N/A
OSD
Auto Image Adjust, Contrast/Brightness, Input Select (D-SUB, DVI-D, HDMI), Color Adjust (sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B]), Audio Adjust (volume, mute, audio input), Information, Manual Image Adjust (H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio, Overscan, ECO-mode), Setup Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Sleep, Power Indicator), Memory Recall
OPERATING CONDITIONS
Temperature
32104 F (040 C)
Humidity
2090% (non-condensing)

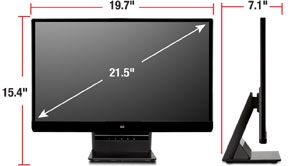

DIMENSIONS (WxHxD)
Physical With Stand
19.7 x 15.4 x 7.1 in. / 499.5 x 392 x 179.5 mm
Physical Without Stand
N/A
Packaging
21.9 x 18.1 x 7.1 in. / 556 x 460 x 179 mm
WEIGHT
Gross
12.6 lb. / 5.7 kg
Net With Stand
7.9 lb. / 3.6 kg
Net Without Stand
N/A
Tilt
Forward 5, Back 20
Vesa Mount
N/A
Regulations
CE,CB, BSMI, PSB, SASO, C-tick, UL/cUL, FCC-B (including ICES003), TUV-S, NOM, GOST-R/Hygienic, UkrSEPRO, Erp, CCC, China Energy, ENERGY STAR 5.2, EPEAT Silver, WEEE, RoHS, SVHC list
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS
VX2270Smh-LED display, power cable, AC/DC adapter, VGA cable, HDMI cable, Quick Start Guide, ViewSonic Wizard CD
Warranty
Three-year limited warranty on parts, labor and backlight.
Power Management
ENERGY STAR standards, EPEAT Silver
3D REQUIREMENTS
N/A
3D GLASSES
N/A
INCLUDED ACCESSORIES
Power cable, AC/DC adapter, VGA cable, HDMI cable, Quick Start Guide, ViewSonic Wizard CD
