Forge Pure Copper base makes better connection to CPU with stronger thermal performance, provides maximum surface exposure area for cooling, and enhances heat transfer and liquid circulation efficiency.

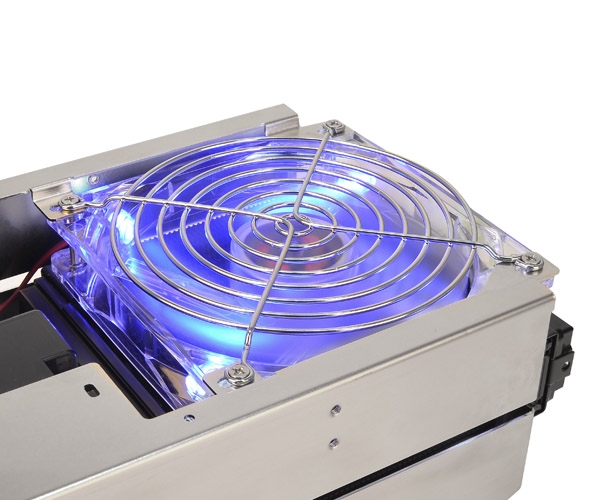

Controllable low noise and high performance 12CM blue LED fan comes with modding effect (fan speed between 1600 to 2400 RPM) with a front control VR knob to adjust fan speed with ease.

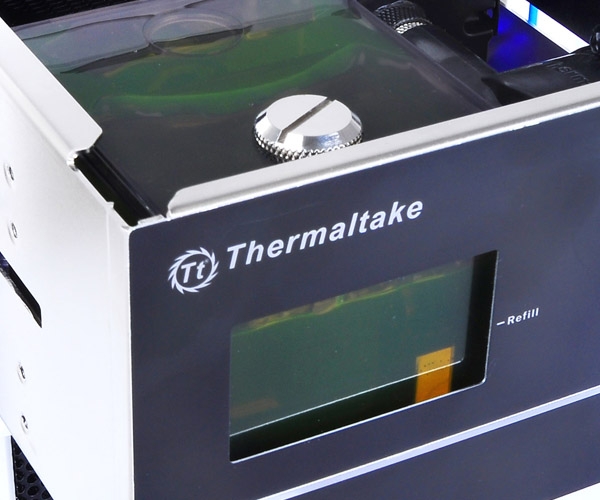

Coolant Level Monitoring
Precise and instant visualization of coolant level can be read on display, it shows users clear liquid level indicator and much easier liquid level and limited refill line reading.
Play with High Extendibility

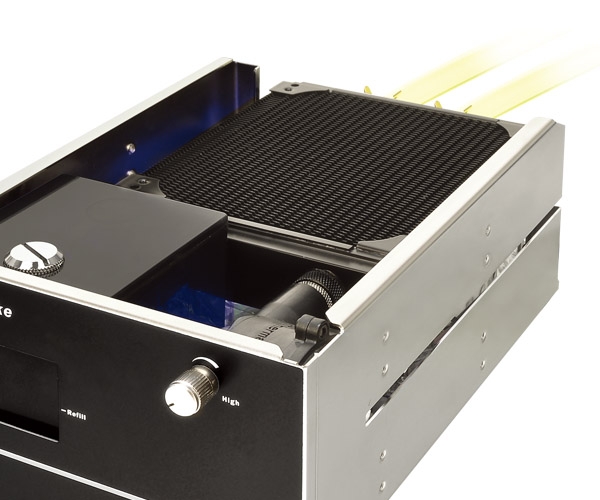

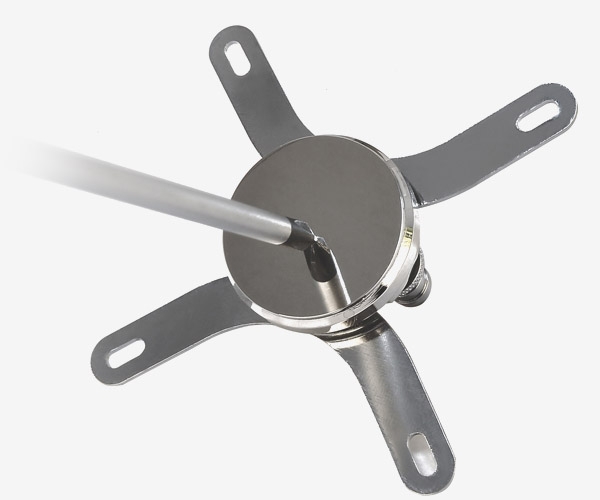

The ultra quiet P500 pump pushes 500L/H of water to improve the overall cooling efficiency and performance level in Bigwater 760 Pro that enables users to extend cooling heat sources to maximize the entire cooling system to extreme, such as CPU, GPU and Memory. Plus, along with all-in-one back-plate design, all Intel and AMD platforms are compatibly supported.
Specifications:
| 2U Bay Drives |
Dimension : 252.8mm(L) x 145.8mm(W) x 84mm(H)
Weight : 1.5kg
|
| Application |
CPU : AMD FM2/FM1/AM3+/AM3/AM2+/AM2
Intel LGA 2011/1366/1155/1156/1150/775 |
| Water Block |
Material : Copper
Dimension : 45mm x 35mm(H)
Connector : For 9.5mm ID (3/8) tubing
Weight : 156 (g) |
| Pump |
Dimensions : 75(L) x 70(W) x 75(H) mm
Bearing : Ceramic bearing
Maximum Capacity : 500 L/ hr
Rated Voltage : DC 12V
Input current : 600 mA
Connector : 3 pin
Noise : 16 dBA
Life time : 80,000 hr (MTBF)
|
| Radiator |
Dimensions : 144.3(L) x 120(W) x 33(H) mm
Material : Aluminum
Connector : For 9.5mm ID (3/8) tubing |
| Fan |
Fan Dimension : 120(L) x 120(w) x 25(H) mm
Fan Speed : 1600~2400 RPM
Rated Voltage : 12V
Noise : 29.4 ~39.9dB
Life Expectancy : 30,000 hr
Connector : 3pin |
| Liquid Tank |
Dimensions : 79.9 (L) x 67.8(W) x 76.4(H) mm
Capacity : 270 c.c
|
| Tube |
Dimensions : 9.5mm ID(3/8) tube
Material : Green UV |
| Coolant |
Capacity : 500 c.c
Major Material Ingredient : Propylene Glycol |
