All stock codes associated to this product
CLP0606, CFANCLP0606, CFAN-CLP0606

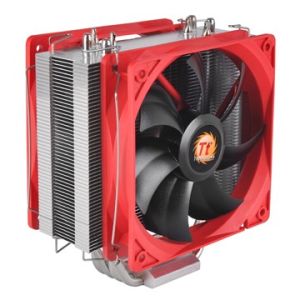

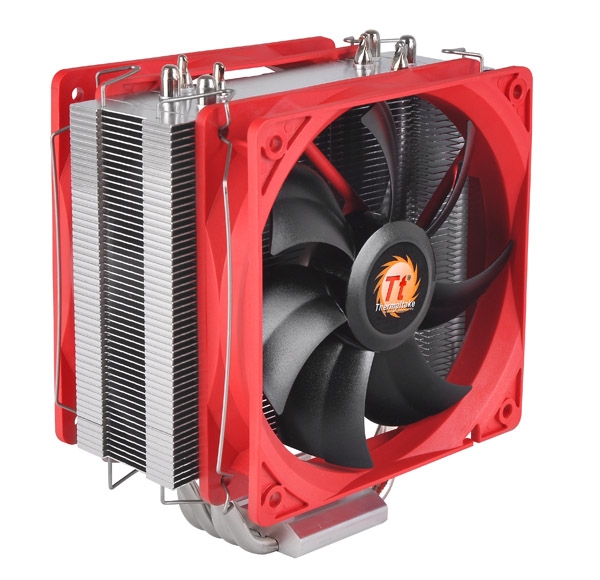

NiC F4 Untouchable CPU Cooler:
Incorporating the proprietary technology, all new Thermaltake NiC series ( lineup consists of the F3, F4, C4, and C5 ), the new CPU cooler series with non-interference cooling space for the ram and motherboard area, the advancement towards silence, performance and compatibility. Fully compatible with RAM of all kinds, ideally for power users to fill their RAM slots with high-end overclocked RAM.

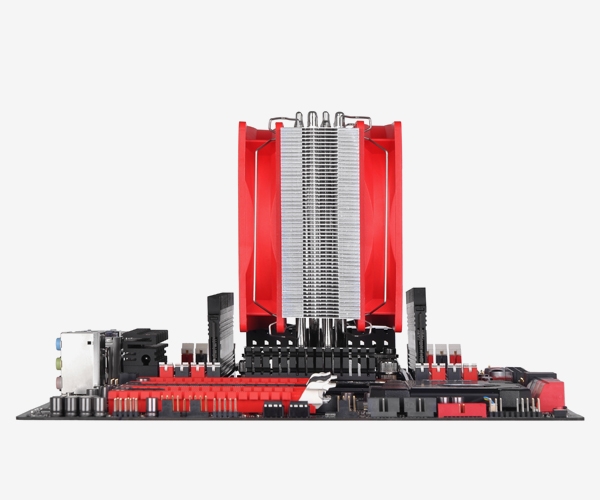

New Standard Non-Interference Cooler
The new NiC Series coolers solve the problem that high performance RAM and CPU coolers cannot co-exist in the past. NiC series coolers achieve the best RAM clearance allowing user to install high end overclock RAM with coolers with ease.
Overclock design support up to 180W

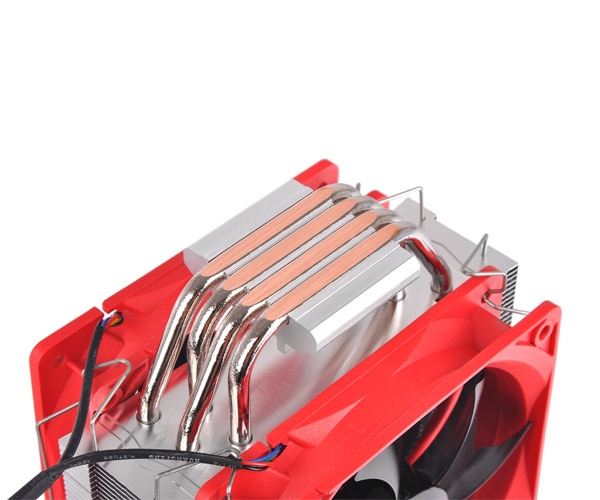

Although the overall dimension of the cooler is smaller than before, but thanks to the design of the cooler, the performance is stronger than before. Heat is conducted from the CPU onto the cooler with Direct Contact Heat-pipes and then onto the aluminum fins with 4 F6mm U-shaped heat-pipes. This ensures the best possible heat dissipation performance conducting heat effectively.

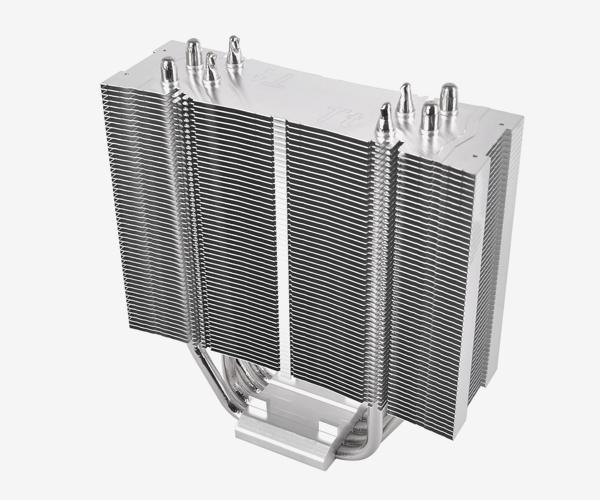

Curved Aluminum Fins
Aluminum fins are specially designed in a curved shape to reduce back air resistance and at the same time maximize airflow through them. The 0.4mm thick aluminum fins also increase the overall thermal dissipation area.

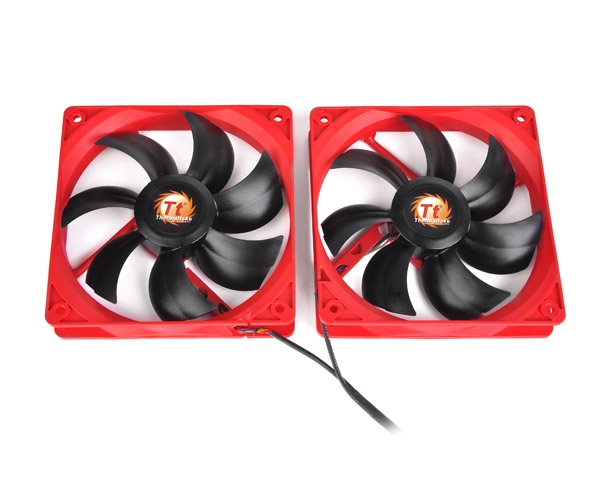

Integrated Dual 120mm PWM fans
Dual 120mm PWM fans with adjustable silent fan blades between 800-1600rpm. Convenient tool-less fan clip design allows user to install/dismantle the fans with ease
Universal Socket Compatibility
All-in-one back-plate design, the universal socket offers support all latest Intel and AMD platform.
Specifications:
| P/N |
CLP0606 |
| Compatibility |
Intel LGA
2011/1366/1155/1156/1150/1150/775
AMD
FM2/FM1/AM3+/AM3/AM2+/AM2 |
| Heatsink Dimension |
155H*140W*50L mm |
| Heatsink Material |
Aluminum Fins
Copper Heatpipes |
| Heatpipe |
6mm x 4 pcs |
| Fan Dimension |
120 x 120 x 25 mm(L xW x H) |
| Fan quantity |
2 pcs |
| Fan Speed |
800-1600RPM |
| Rated Voltage |
12V |
| Start Voltage |
9.0V |
| Rated Current |
0.17A |
| Power Input |
2.04W |
| Air Flow |
79.283CFM |
| Air Pressure |
1.911 MM-H2O |
| Noise |
18.0~ 30.2 dBA |
| Life time/Fan Life time |
40,000 hours |
| Fan control |
PWM |
| pin connect |
4 pin |
| Cooling Power |
180W |
| Weight |
688 g |
