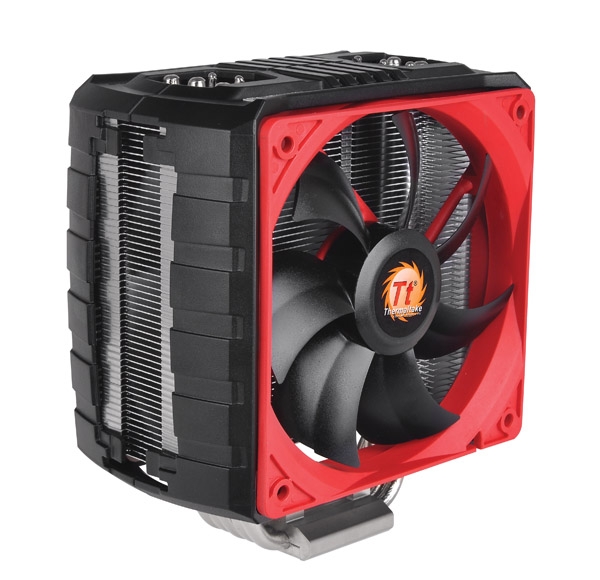

Incorporating the proprietary technology, all new Thermaltake NiC series ( lineup consists of the F3, F4, C4, and C5 ), the new CPU cooler series with non-interference cooling space for the ram and motherboard area, the advancement towards silence, performance and compatibility. Fully compatible with RAM of all kinds, ideally for power users to fill their RAM slots with high-end overclocked RAM.
New Standard Non-Interference Cooler

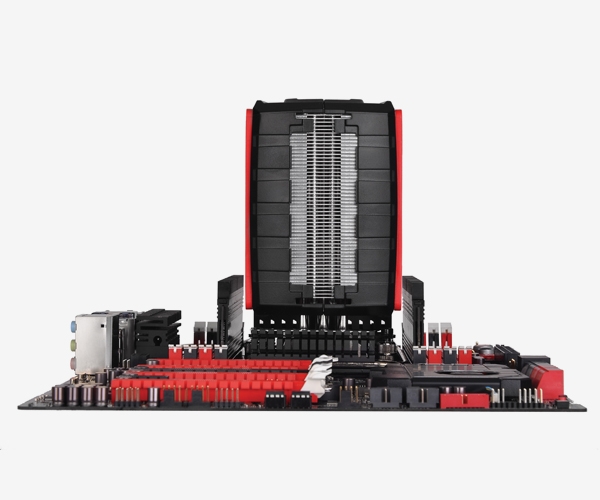

The new NiC Series coolers solve the problem that high performance RAM and CPU coolers cannot co-exist in the past. NiC series coolers achieve the best RAM clearance allowing user to install high end overclock RAM with coolers with ease.
Overclock Design support up to 230W

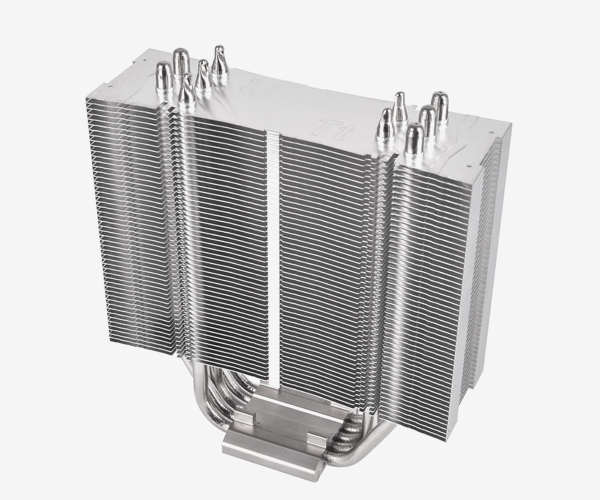

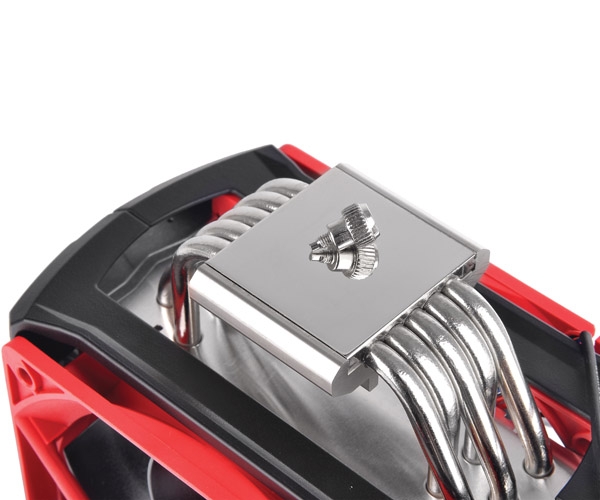

Heat is conducted from the CPU onto the cooler through the thick nickel coated copper base and then onto the aluminum fins with 5 F6mm U-shaped heat-pipes. This ensures the best possible heat dissipation performance conducting heat effectively.
Curved Aluminum Fins
Aluminum fins are specially designed in a curved shape to reduce back air resistance and at the same time maximize airflow through them. The 0.4mm thick aluminum fins also increase the overall thermal dissipation area.

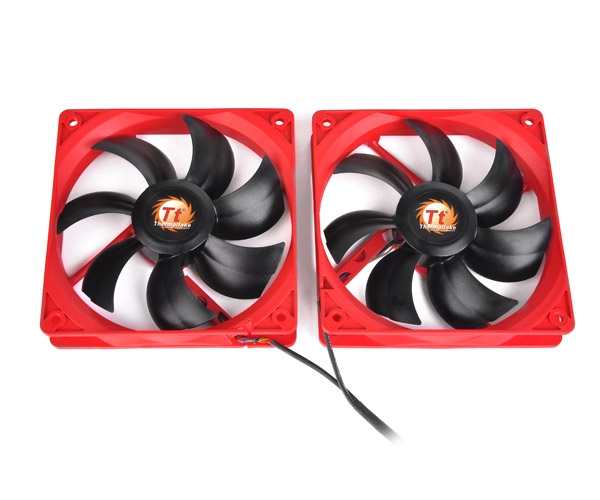

Integrated Dual 120mm VR fans
Both VR fans are contacted to an adjustable fan speed knob where the fans speed can be manually adjusted from 1000 to 2000rpm. A convenient tool-less fan mounting bracket design makes installation easier.
VR Control knob
Universal Socket Compatibility

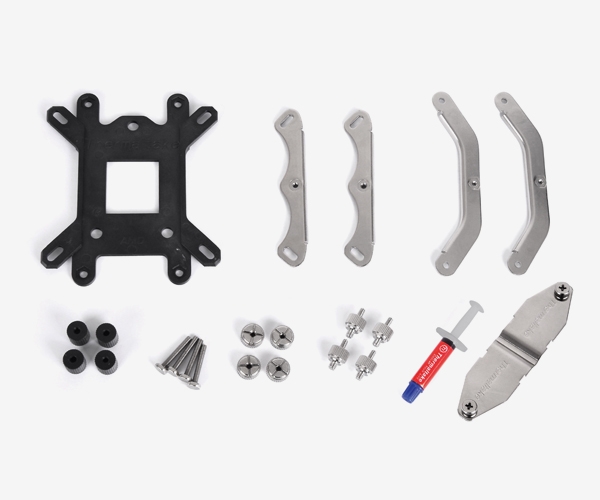

All-in-one back-plate design, the universal socket offers support all latest Intel and AMD platform.
Specifications:
| P/N |
CLP0608 |
| Compatibility |
Intel LGA
2011/1366/1155/1156/1150/1150/775
AMD
FM2/FM1/AM3+/AM3/AM2+/AM2 |
| Heatsink Dimension |
160H * 140W * 50L mm |
| Heatsink Material |
Aluminum Fins
cu base
Copper Heatpipes
|
| Heatpipe |
6mm x 5 pcs |
| Fan Dimension |
120 x 120 x 25 mm(L xW x H) |
| Fan quantity |
2 pcs |
| Fan Speed |
1000-2000RPM |
| Rated Voltage |
12V |
| Start Voltage |
9V |
| Rated Current |
0.32A |
| Power Input |
3.84W |
| Air Flow |
99.1 CFM |
| Air Pressure |
2.99 MM-H2O |
| Noise |
20 ~39.9 dBA |
| Life time/Fan Life time |
40000 hr |
| Fan control |
VR |
| pin connect |
3 pin |
| Cooling Power |
230W |
| Weight |
811 g |
