All stock codes associated to this product
A85XMA, A85XM-A
A85XM-A
Overview
Precise Digital Power Control for APUs and Superb Graphics with Native HDMI/DVI Outputs on the AMD A85X Platform
- DIGI+ VRM - Digital Power Design for the APU
- USB 3.0 Boost - Lightning Fast Transfer Speeds!
- HDMI & DVI Outputs High-definition Visual Enjoyment
- UEFI BIOS - Flexible and Easy BIOS Interface
- AI Suite II - One-stop Access to Innovative ASUS Features!
- Superior Components -100% All Solid Capacitors & Extra Durable Stainless Steel Back I/O Materials
APU,FCH and Graphics features
AMD A-series Accelerated Processor with AMD Radeon HD 7000 Series Graphics
This motherboard supports AMD A-series Accelerated Processor with AMD Radeon HD 7000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s.
AMD A85X FCH(Hudson D4)
AMD A85X FCH (Hudson D4) is designed to support up to 5GT/s interface speed and PCI Express 2.0 x 16 graphics. It natively supports 8 x SATA6Gb/s ports and 4 x USB 3.0 Ports.
AMD Dual Graphics Technology
AMD Radeon Dual Graphics is an exclusive technology only available to AMD platforms. It allows AMD APUs and selected AMD Radeon HD 6000 series graphics cards to work together, delivering an unrivalled 3D gaming graphics quality and performance. By combining both the discrete and integrated graphics processors, gamers can now enjoy faster and smoother frame rates on any latest gaming titles.
AMD Eyefinity Technology
Supporting multiple independent display outputs simultaneously, AMDEyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.
ASUS Exclusive Features
ASUS Home Entertainment Motherboard
ASUS A85XM-A features USB 3.0 connections with exclusive USB 3.0 Boost technology, along with native HDMI & DVI support to serve your home entertainment needs perfectly. With a slower transfer interface, HD video and audio files can become choppy or lag, ruining your HD entertainment experience. ASUS knows this, so thats why our Home Entertainment Motherboards were created.
HDMI & DVI Outputs
High-definition Visual Enjoyment
Maximize your multimedia enjoyment! Enjoy high quality visuals with a digital display monitor via HDMI or DVI output.

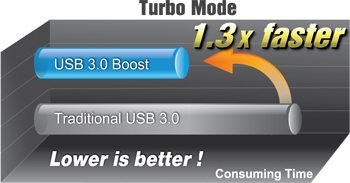

ASUS Exclusive USB 3.0 Boost
1.3x Faster than Traditional USB 3.0
With USB 3.0 Boost technology, USB transfer speeds are significantly increased up to 1.3x, enhancing an already impressive USB 3.0 transfer rate. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any further user configuration.
DIGI+ POWER CONTROL: Digital Power Design for the APU
ASUS motherboards using the AMD A85X chipset employ precise digital voltage regulation for the APU, called DIGI+ VRM (Voltage Regulation Modules) digital power design. The APU voltage is adjusted via either carefully developed automated modes, or by using user-defined profiles. The effect is that DIGI+ VRM technology ensures greater energy efficiency and the most precise power delivery. Boosted by world-renowned ASUS quality, it creates an ideal computing platform for a diverse range of applications, from gaming to multimedia or office work and heavy multitasking. Engineered and tested to assure unmitigated performance, ASUS A85X boards with DIGI+ VRM remain efficient and accurate, for reliable application in every scenario.
DIGI+ VRM functions also available in FM2 socket compatible CPUs.
Superior Compenents Excellent Quality and Durability

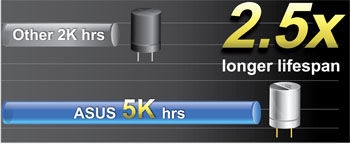

100% All High-quality Solid Capacitors
ASUS high-quality solid capacitors assure a 5,000 hours lifespan equivalent to 2.5 times longer than traditional capacitors. All capacitors pass testing under temperatures as high as 105 degree and meet Japanese Industrial Standards to provide excellent durability and enhanced thermal capacity.

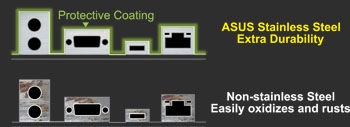

Extra Durable Stainless Steel Back I/O
ASUS Motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance the anti-corrosion properties. Thats why ASUS stainless steel back I/O panels have a usage life three times longer compared to ordinary panels.
USB 3.0 Support
Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10x faster and is also backward compatible with USB 2.0 components.
Native SATA 6Gb/s Support
The AMD A85X FCH natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems
Network iControl
Real-time Network Bandwidth Control
With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.
AI Suite II
One stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise Overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
UEFI BIOS
ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems.
ASUS Exclusive Interface
EZ Mode displays frequently-accessed info. Users can choose system performance settings and drag and drop boot priorities. Advanced Mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight.
New Upgrade! Quick and Easy Info for Enhanced System Control
- F12 BIOS snapshot hotkey for sharing UEFI setup info and troubleshooting
- New F3 Shortcut for most accessed info
- ASUS DRAM SPD (Serial Presence Detect) Information for accessing memory info, detecting faulty DIMMs and helping with difficult POST situations
ASUS Anti-Surge Protection
Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.
- Real-time over voltage detection.
- Active protection against potential damage to your motherboards and systems.
Windows 8 Ready
Windows 8 Ready
With hardware driver compatibility tested and assured, ASUS provides a complete solution for Windows 8 support. Starting now, users can experience the next generation operating system on ASUS hardware, and can rest assured that they can easily upgrade once the final driver versions are released without any compatibility issues!
RoHS
GreenASUS
The motherboard is European Unions Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.

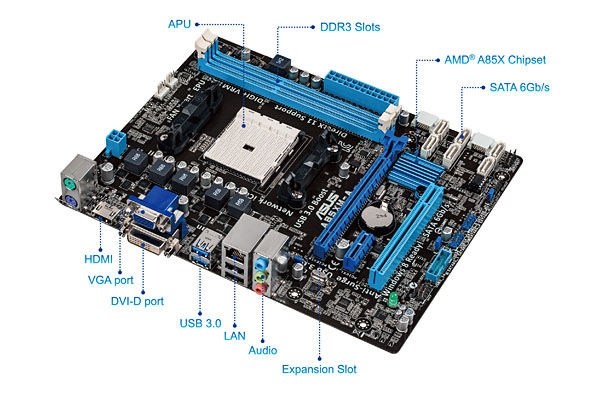

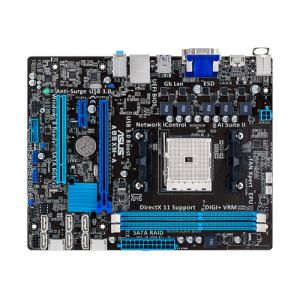

A85XM-A Product Overview
Specifications:
CPU
AMD Socket FM2 Athlon/A- Series Processors
Supports CPU up to 4 cores
Supports AMD Turbo Core 3.0 Technology
Chipset
AMD A85X FCH(Hudson D4)
Memory
2 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Support AMD Memory Profile (AMP) memory
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
Graphic
Integrated AMD Radeon HD 7000 Series Graphics in A-series APU
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
Maximum shared memory of 2048 MB
AMD Dual Graphics technology support *1
Supports DirectX 11
Expansion Slots
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
1 x PCI
Storage
AMD A85X FCH(Hudson D4) chipset :
8 x SATA 6Gb/s port(s), black
Support Raid 0, 1, 5, 10, JBOD
LAN
Realtek 8111F
Audio
Realtek ALC887-VD 8-Channel High Definition Audio CODEC *2
USB Ports
AMD A85X FCH(Hudson D4) chipset : *3
4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
AMD A85X FCH(Hudson D4) chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Special Features
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 3 +2 Phase Power Design
ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ESD Guards
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS
64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
Support Disc
Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)
Form Factor
mATX Form Factor
9.3 inch x 7.4 inch ( 23.6 cm x 18.8 cm )
Note
*1: Refer to https://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3 for the discrete GPUs which support Dual Graphics technology
*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*3: Supports ASUS USB 3.0 Boost
