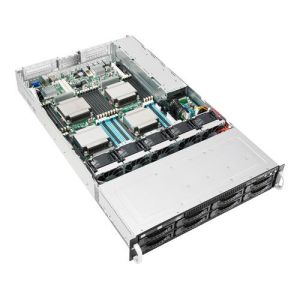

The RS920-E7/RS8 delivers outstanding performance with up to four new Intel Xeon E5-4600 processors, which together offer a max 32 computing cores in a 2U system. The 32 DDR3 DIMM slots support up to 1024GB (RDIMM) memory. Furthermore, it supports up-to-date Intel Xeon Phi 5110P and 3100 series as well as NVIDIA Tesla K10/K20 Family and GRIDTM K2of GPU accelerators.
Enhanced reliability, better efficiency, and improved serviceability
Quad Intel Gigabit LAN ports optimize load balance and fault tolerance functions, while hot-swap hard drive trays enable easy maintenance and upgrades. In addition, the 1+1 redundant 1620W 80 PLUS Platinum power supplies provide up to 94% power efficiency, by that combining easy maintenance with significant cost savings, making the server both power-saving and easy to maintain.
Exclusive ASUS PIKE upgrade kit
To improve storage capacity, the RS920-E7/RS8 supports SATA and SAS hard drives to offer users integrated RAID Solution PIKE for better data protection. The optional ASUS PIKE SAS2 6G upgrade kit provides a cost-effective storage interface upgrade, for more flexible storage options.
Quad LAN with Gigabit high performance
The quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions, which reduce data processing bottlenecks in virtualization environments by enhancing virtualized traffic.
Integrated server remote management
With the web GUI-based ASMB6-iKVM module, users can fully control the server with out-of-band management using the IPMI 2.0 standard, achieving 24/7 real time remote monitoring. Meanwhile, ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, power control, and asset supervision, all through a user-friendly interface.
Specifications
- Processor / System Bus
4 x Socket 2011
Intel Xeon processor E5-4600 product family (130W)
- Core Logic
Intel C602-A PCH
- Memory
Total Slots : 32 (4-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 1024GB RDIMM/Maximum up to 256GB UDIMM/Maximum up to 1024GB LRDIMM
Memory Type :
DDR3, 800/1066/1333/1600, RDIMM
DDR3, 1066/1333, UDIMM
DDR3, 1066/1333, LRDIMM
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB, 32GB RDIMM
1GB, 2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM
- Expansion Slots
Full-length
4 * PCI-E x16 (2 * Gen3 x16 Link or 4 * Gen3 x8 Link)
Half-length/Low-profile
2 * PCI-E x8 (Gen3 x8 Link)
- Storage
SATA Controller :
Intel C602-A
2 x SATA3 6Gb/s ports
4 x SATA2 3Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
- HDD Bays
8 * Hot-swap 3.5" "HDD Bays
- Networking
1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN
- Graphic
Aspeed AST2300 with 16MB VRAM
- On Board I/O
1 x External Serial Port
5 x RJ-45 ports (One for ASMB6-iKVM)
6 x USB 2.0 ports (Front x 2, Rear x 1)*4
2 x USB 3.0 ports
1 x Internal A Type USB Port
1 x VGA port
1 x PS/2 KB/MS port
- OS Support
CentOS 5.6 32/64-bit
Windows Server 2008 R2
Windows Server 2008 R2 Enterprise
Windows Server 2008 Enterprise 32/64-bit
RedHat Enterprise Linux AS5.6/6.0 32/64-bit
SuSE Linux Enterprise Server 11.2 32/64-bit
VMWare ESX4.1/ESXi4.1
*(Subject to change without any notice)
- Management Solution
default 1 x ASMB6-iKVM for KVM-over-IP
- Safety
Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
- EMI
US (FCC, CFR47 Part 15, Class A)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
- Dimensions
750mm * 444mm * 88mm
- Form Factor
2U
- Weight
20Kg
- Power Supply
1620W (80+) (Platinum level) 1+1 Redundant Power Supply (following different configuration by region)
- Environment
Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
- Accessory Box
1 x RS920-E7 User's Guide
1 x ASUS ASWM Enterprise User's Guide
1 x Bag of Screws
2 x AC Power Cable
1 x ASWM ENTERPRISE DVD
1 x RS920-E7 Support DVD
1 x ASMB6 SERIES DVD
1 x ASMB6 User's Guide
- Optional Items
Second 1620W Redundant Power Supply Module (04G180001700)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)
ASUS PIKE 2208 H/W RAID card
Part List
- Chassis
ASUS R21C 2U Rackmount Chassis
- MB
ASUS Z9PX-Q32 Server board
- HDD Backplane
1 x RS920-X7/RS8 SAS/SATA Backplane (BP8LX-R21B) (60SC0180-SC0A02)
- Front Panel Board
1 x Front I/O Board (FPB-AR14) (60SC0070-SC0C05)
- Power Distribution Board
1 x Power Distribution Board (60SC0200-SC0A01)
1 x Power Distribution Extension Board (60SC0210-SC0A01)
- Midplane/Connection Board/Convert Board
1 x Power Sharing Board (08003-00220100)
- Riser Card
3 x PCI-E Riser Card
- CPU Heatsink/ Cooler
4 x CPU Heatsink (13071-00090600)
- Power Supply Unit
2 x 1620W Redundant Power Supply (04G180001700)
- HDD Tray
8 x Hot-swap 3.5" HDD trays (13GS1I0AM010-1)
- Fan
5 x System Fans(80mm x 38mm) (13070-00230000)
- Optical Drive
1 x Slim DVD-RW (Optional) (17G14113400N)
(DVD-RW default for North America)
- Mounting Rails
1 x Friction rail kit (13GS190AM042-1)
- Cable
1 x W.H CABLE HSG 8P TO 8P (14003-00090100)
1 x W.H CABLE HSG 8P TO 8P (14003-00090200)
1 x PMBUS CABLE 6P TO 6P (14G000611220)
2 x W.H CABLE 10P TO 8P,L=700mm (14G030028210)
2 x SATA 6G CABLE L=900+800+700*2 (14001-00280000)
1 x USB CABLE 2*4 TO 2*5,L=850mm (14001-00300000)
1 x MINI SATA 13P TO 7P+4P,L=800mm (14001-00240000)
1 x POWER 8P TO TERMINAL, L=80mm (14001-00190100)
1 x POWER 24P TO TERMINAL, L=80mm (14001-00180000)
1 x FPB CBL 2*8 TO 2*10,L=730mm(14003-00100000)
1 x POWER 8P TO TERMINAL, L:200MM (14001-00190000)
2 x W.H CABLE 10P TO 8P,L=700MM (14G030028210)
1 x W.H CABLE 6P TO 6P,L= 550MM (14G03001120C)
