All stock codes associated to this product
GVNTITANOC6GDB, GV-NTITANOC-6GD-B
GV-NTITANOC-6GD-B

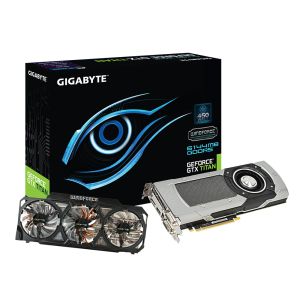

GIGABYTE Supercomputing graphics card
- Bundle with WINDFORCE 3X 450W Cooling system
- Powered by NVIDIA GeForce GTX TITAN GPU
- Integrated with industry's best 6GB GDDR5 memory 384-bit memory interface
- Features Dual-link DVI-I/ DVI-D / HDMI / DisplayPort
- BASE:928MHz / BOOST:980 MHz
- System power supply requirement: 600W
Overview
NEW WINDFORCE 3X 2 SLOT 450W cooling system
Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm and four 6mm cooper heat-pipes , inclined fans, and GIGABYTE “Triangle Cool” technology. This not only provides an effective heat dissipation capacity but GPU Boost 2.0 technology also enables higher performance due to a lower temperature.
OC GURU ll
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK, FAN, GPU VOLTAGE, Memory VOLTAGE, OSD, ONLINE SUPPORT and update driver, BIOS directly.
Up to 4 displays on a Single Card
In the Kepler architecture, support up to four displays on a single card. Satisfy your multi-screen setup, high definition and extreme gaming experience.
Specifications:
| Chipset |
GeForce GTX TITAN |
| Memory Clock |
6008 MHz |
| Process Technology |
28 nm |
| Memory Size |
6144 MB |
| Memory Bus |
384 bit |
| Card Bus |
PCI-E 3.0 |
| Memory Type |
GDDR5 |
| DirectX |
11.1 |
| OpenGL |
4.3 |
| PCB Form |
ATX |
| Digital max resolution |
2560 x 1600 |
| Analog max resolution |
2048 x 1536 |
| Multi-view |
4 |
| I/O |
Dual-link DVI-I*1
DVI-D*1
DisplayPort*1
HDMI*1 |
| Power requirement |
600W (with one 6-pin and one 8-pin external power connectors) |
