1110 MHz Boost clock for better performance and outstanding gaming experience
DIGI+ VRM with Super Alloy Power
30% less power noise and 2.5X greater durability
Acclaimed DIGI+ VRM has been applied via a 10-phase power design that uses digital voltage regulators to minimize power noise by 30%, enhance power efficiency by 15%, widen voltage modulation tolerance, and improve overall stability and longevity by 2.5 times over reference.
GPU Tweak
Real-time intuitive graphics tuning
- Shows detailed specs and actual card status with GPU-Z
- Monitoring widget provides real-time detailed multi-parameter info
- Automatically checks and updates drivers and BIOS versions
Gigantic 2GB GDDR5 Memory
On-board memory for the best gaming experience & the best resolution
Graphics GPU Features
Powered by GeForce GTX 770
NVIDIA® Adaptive V-Sync
Get more than just faster frame rates. Get ultra-smooth gaming every time with NVIDIA® gaming innovation Adaptive Vertical Sync. This technology dynamically adjusts vsync to current frame rates for maximum playability.
SLI Support
Multi-GPU technology for extreme performance.
PCI Express 3.0
Delivers double the bandwidth per lane of PCIe 2.0 for faster GPU-CPU communication.
Microsoft Windows 8 compatible
Gives you access to advanced computing experiences with the latest operating system so you get more done with your PC.
NVIDIA® GPU Boost 2.0
Technology for intelligent monitoring of clock speed, ensuring that the GPU runs at its peak and the game is at its highest frame rate possible. It offers new levels of customization, including GPU temperature target, overclocking, and unlocked voltage.
NVIDIA® PhysX™
Play games with advanced effects such as blazing explosions and lifelike characters with 10X faster switching between graphics and physics processing, enabling more complex effects to be rendered in real time.
NVIDIA® 3D Vision™
Transform hunreds of PC games into stereoscopic 3D and enjoy immersive full HD 3D gaming across three displays at an incredible 5760 x 1080 resolution.
DirectX® 11
DirectX® 11 GPU-accelerated tessellation allows more detailed geometry to be packed into a scene, allowing characters to be rendered with cinema-quality detail.

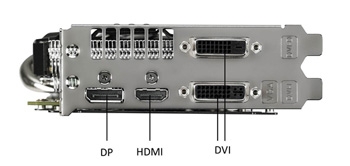

I/O Ports Highlight
1x Native Dual-link DVI-I
1x Native Dual-link DVI-D
1x Native HDMI
1x Native DisplayPort
Specifications:
Graphics Engine
NVIDIA GeForce GTX 770
Bus Standard
PCI Express 3.0
Video Memory
GDDR5 2GB
Engine Clock
GPU Boost Clock : 1110 MHz
GPU Base Clock : 1058 MHz
CUDA Core
1536
Memory Clock
7010 MHz ( DDR2 )
Memory Interface
256-bit
Interface
DVI Output : Yes x 1 (DVI-I), Yes x 1 (DVI-D)
HDMI Output : Yes x 1
Display Port : Yes x 1 (Regular DP)
HDCP Support : Yes
Accessories
1 x Power cable
Power Consumption
up to 300Wadditional 6+8 pin PCIe power required
Software
ASUS GPU Tweak & Driver
ASUS Features

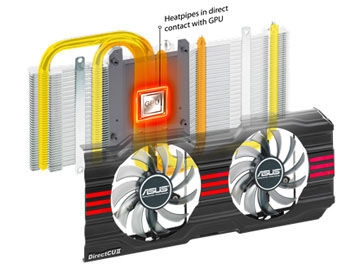

DirectCU Series
OC Series
Super Alloy Power
Dimensions
10.7 " x 5.2 " x 1.6 " Inch
27.17 x 13.2 x4.06 Centimeter
Note
To have the best cooling performance, ASUS GTX770-DC2-2GD5 extends the fansink to 2 slots. Please double check you Chassis and Motherboard dimension prior to purchase to make sure it fits in your system!
Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit https://www.geforce.com/
Specifications are subject to change without notice.
PCB color and bundled software versions are change without notice.
Brand and product names mentioned are trademarks of their respective company.
