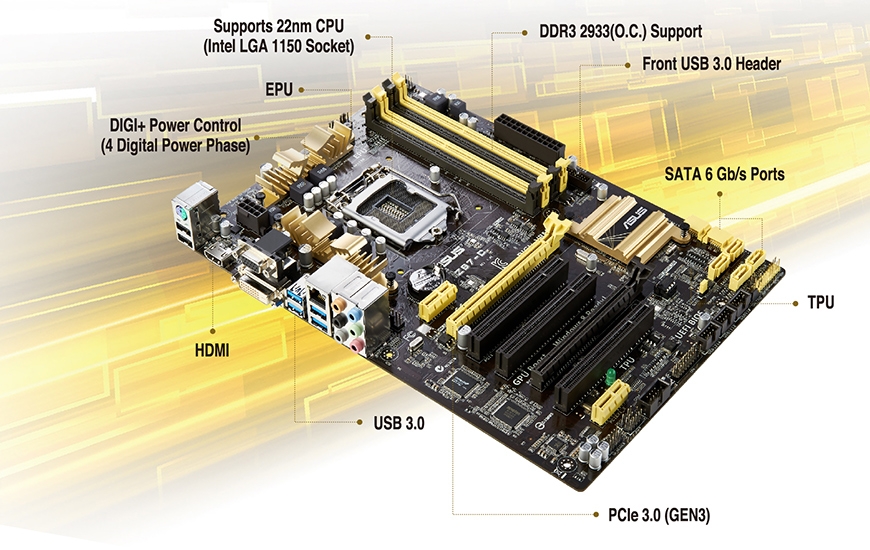

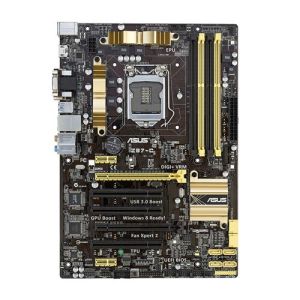

ASUS Z87-C Motherboard
  • LGA1150, Z87, 4xDDR3-1600, 1xPCI-Ex16 v3.0, 1xPCI-Ex16 v2.0, 2xPCI-Ex1 v2.0, 3xPCI, 6xSATA-III, RAID, 1xGigLAN, 8Chl-HD, USB3.0, VGA, DVI, HDMI, ATX

IMG 1 of 3
No Longer Available
Part Number:
222529
(?) Brand:
ASUS Web Site
Manuf No:
Z87-C
Z87C
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/6/2013
Details Files Images & Video
All stock codes associated to this product
Z87C, Z87-C
Z87-C

Get a performance boost with precise digital power delivery on Intel Z87

  • Dual Intelligent Processors 2 with DIGI+ VRM
  • Fan Xpert 2 - The Most Customizable Fan Controls
  • USB 3.0 Boost - Faster USB 3.0 with UASP in Windows 8
  • AI Suite 3 - One-Stop Access to Innovative ASUS Features


Dual Intelligent Processors 2

The worlds first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). The new generation of Dual Intelligent Processors 2 with DIGI+ VRM provides precise Vcore PWM, integrated graphics voltages and frequency module adjustments with minimal power loss through BIOS tuning and an exclusive user interface to increase the boards overclocking range while performance reaches its full potential. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency.


DIGI+ VRM

VRM, or voltage regulator modules, are considered among the most essential motherboard design components. They supply the voltage demanded by the CPU, and a good VRM must intelligently detect actual CPU power draw to provide precise power accordingly.


TPU

The ultimate turbo processor

Unleash your performance through the AI Suite 3 utility. The TPU chip offers precise voltage control and advanced monitoring through Auto Tuning , GPU Boost and TPU functions. Auto Tuning offers a user friendly way to automatically optimize the system for fast, yet stable clock speeds, while TPU enables unlimited freedom to adjust CPU frequencies and ratios for optimized performance in diverse situations.


EPU

All-round energy efficiency and detailed CPU wattage settings

Tap into the world's first real-time PC power saving chip through the AI Suite 3 utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. It can directly reduce CPU wattage to an indicated level on demand and manually switch to Max Power Saving Mode for further energy savings, creating a more efficient PC.

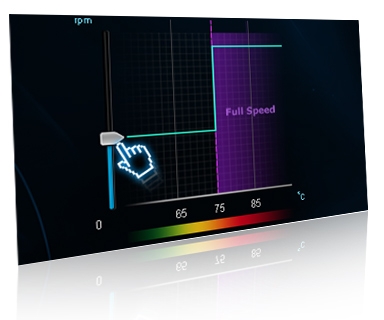

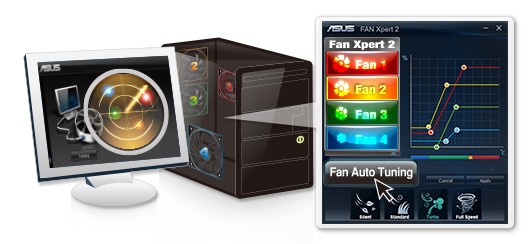

Fan Xpert 2

For more fine-tuned control, hardware-level ASUS Fan Xpert 2 features Fan Auto Tuning, providing a tailored fan speed setting for each fan with exclusive automatic fan speed detection. This achieves the best balance of cooling performance and low noise. It even provides an RPM Fixed Mode for users who wish to reduce noise levels to near 0dB using a specific fan speed setting.

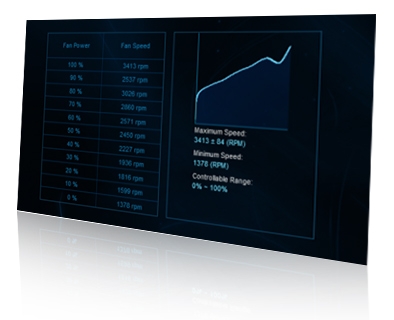

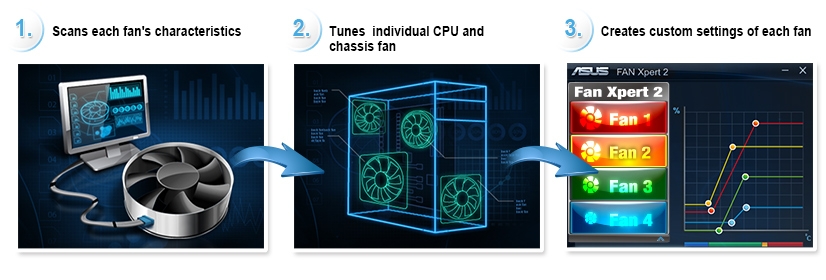

Fan Auto Tuning Mode

Scans fan parameters through exclusive automatic speed detection to provide custom settings for each fan with a single click. This achieves the best cooling for your components beyond just the mere number of fans in your case. Fan Xpert 2 provides individual data and control for each fan connected to your motherboard as well as built-in fan profiles to deliver cooling that is as automated or as customizable as you need it to be.


RPM Fixed Mode

Fan Xpert 2 includes an RPM Fixed Mode for users who wish to reduce noise levels to near 0dB with highly specific fan speed control. It reacts to system loads for greater response.


Informative fan controls

Delivers complete information that allows you to take advanced control over each fan.

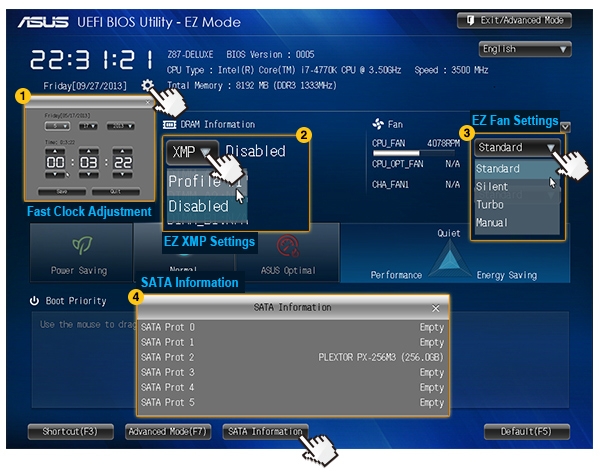

New UEFI BIOS

New UEFI BIOS friendlier and more Intuitive

Exclusive EZ Mode adds useful info to become even easier

Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.

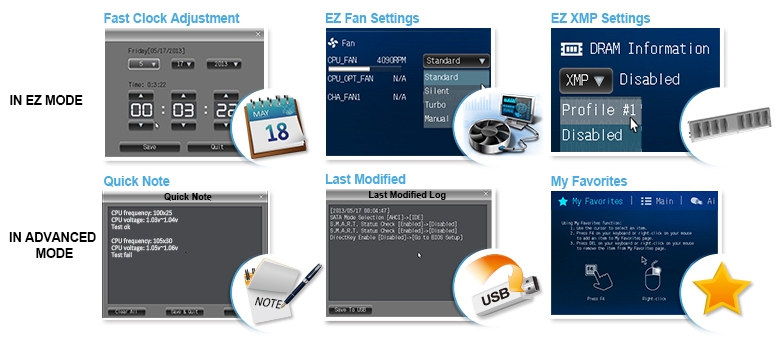

1.Fast Clock Adjustment

Easily change the time and date in EZ Mode using the mouse.

2.EZ XMP Settings

Quickly apply XMP settings in UEFI BIOS EZ Mode, achieving better DRAM performance.

3. EZ Fan Settings

As demanded by the community, detailed fan controls come to EZ Mode so you can switch fan profiles for quick cooling and noise-level supervision.

4. SATA Information

Displays each SATA port details for you to easily recognize devices.

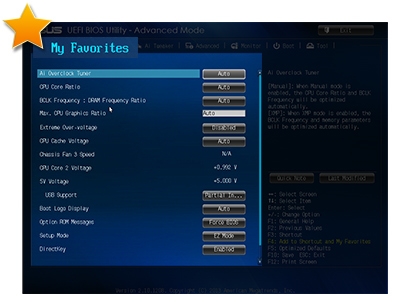

My Favorites

Get all your favorite functions on one page

F4 or right click to add settings to My Favorites under Advance Mode, which cuts time spent on searching and further speeds up system tuning.

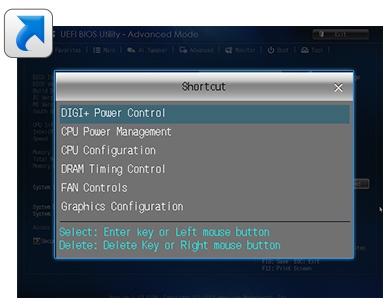

Shortcut

One press to apply and access frequent settings

Now you can customize your own shortcut log by pressing F4 or right clicking to create shortcuts to frequently-used settings. Instantly access them by simply hitting the F3 hotkey.

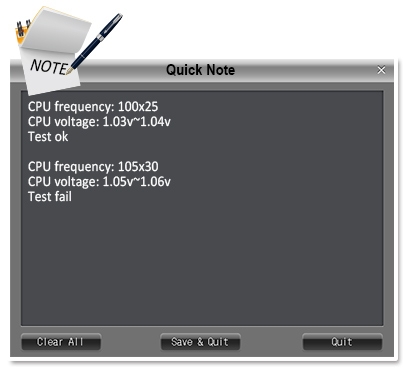

Quick Note

You no longer need to have a pen and paper notepad around. Quick Note works inside the BIOS so you can just type remarks and ideas to help you remember important settings info and save time on trial and error.

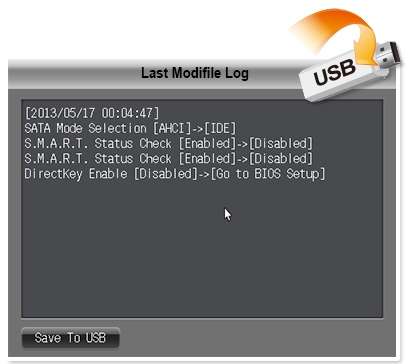

Last Modified

Always forget those important BIOS changes you did? This friendly function creates a tuning log to track your BIOS settings history , which can be saved onto a USB drive.

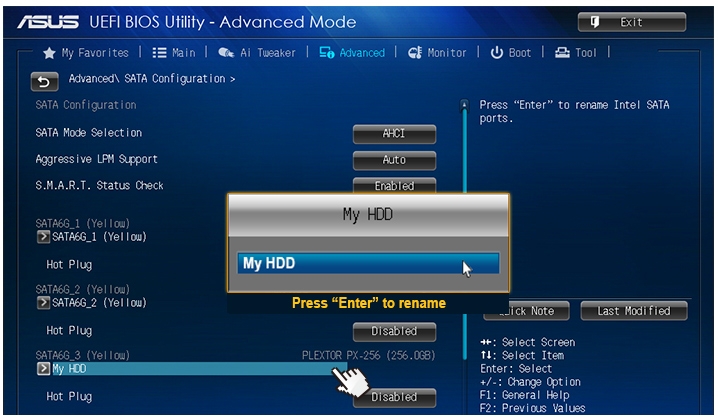

SATA Port Renaming

You can rename your SATA ports for easy identification, including by usage scenario. Get greater convenience and spend less time on finding the right devices when you want to change settings.


The Latest Transfer Speed

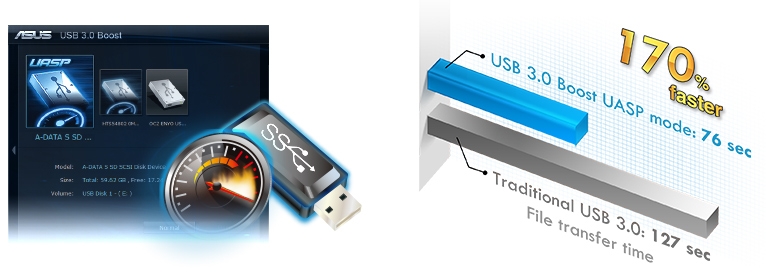

USB 3.0 Boost (UASP Support)

170% faster transfer speeds than traditional USB 3.0

ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) USB 3.0 in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.

  • Worlds 1st USB 3.0 UASP support instantly 170% faster.
  • Complete USB 3.0 solution performance boost under Turbo Mode or UASP Mode for most USB devices.

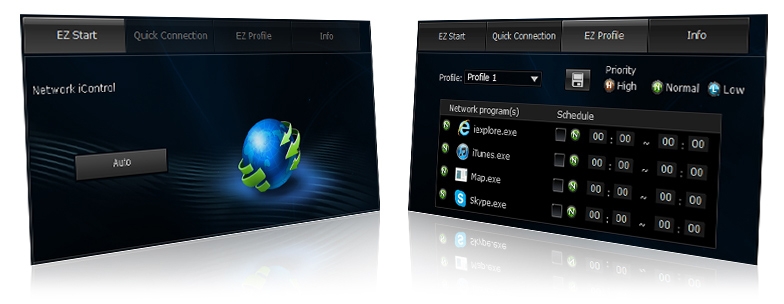

Network iControl

Real-time network bandwidth management

One click to prioritize network traffic for applications you're currently using or set up favorite profiles to run at specific times. Avoid network congestion, speed up downloading, and make sure online gaming runs optimized, all through an intuitive user interface.



PCI Express 3.0

PCI Express 3.0 uses improved encoding that provides twice the performance of PCI Express 2.0. Total bandwidth for an x16 link reaches 32GB/s, delivering unprecedented data speeds combined with the convenience and seamless transition offered by complete backward compatibility.

Complete USB 3.0 integration

Double USB access, double the convenience

ASUS facilitates USB 3.0 accessibility for both the front and rear panel. Experience the latest plug n play connectivity at speeds up to 10 times faster than USB 2.0. Our motherboards afford greater convenience with high speed connectivity.

SATA 6.0 Gb/s

Twice the speed

ASUS provides SATA 6.0 Gb/s ports with enhanced scalability, faster data retrieval, and double the bandwidth of SATA 3Gb/s.


EZ DIY

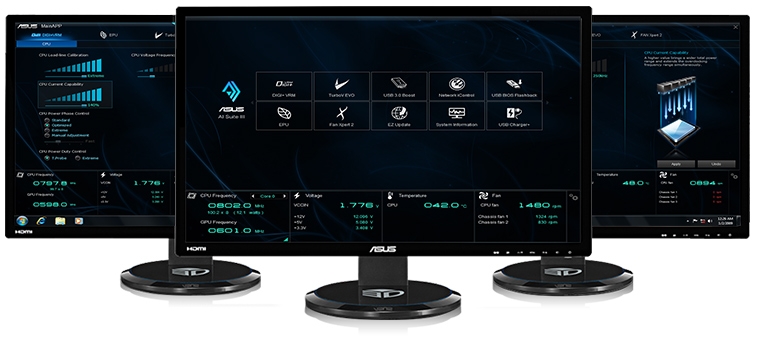

AI Suite 3

One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.



One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

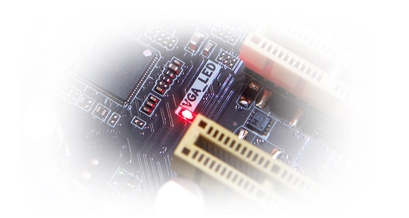

Q-LED

Easy PC diagnostics

When there's a problem with your PC, quickly being able to diagnose and remedy the issue can eliminate a great deal of frustration. ASUS Q-LED immediately indicates when there's a problem with the CPU, memory, graphics card or boot device by lighting up in the vicinity of that component.

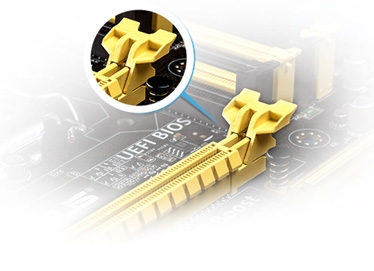

Q-Slot

Effortless PCI Express component removal

Press the Q-Slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you dont have to struggle with installing or removing even the biggest graphics cards.





Windows 8 Exclusive Features

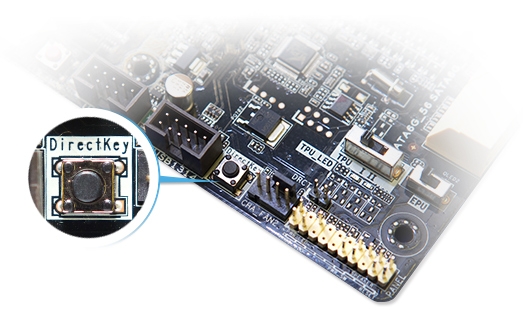

DirectKey

Dedicated direct BIOS access button

Designed for those requiring frequent BIOS access, users can easily enter the BIOS when the PC is on standby power with a simple press of a button. It saves you time during boot-up as you dont have to repeatedly press the DEL key. Convenience and ease at their best!

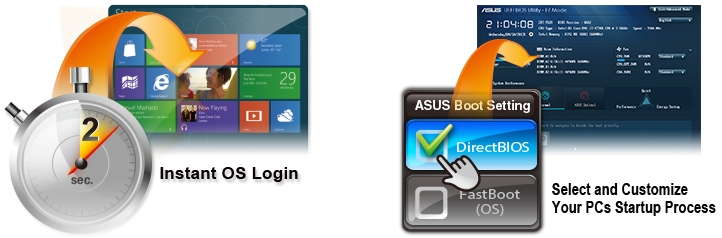

ASUS Boot Setting

Multiple startup options

Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.

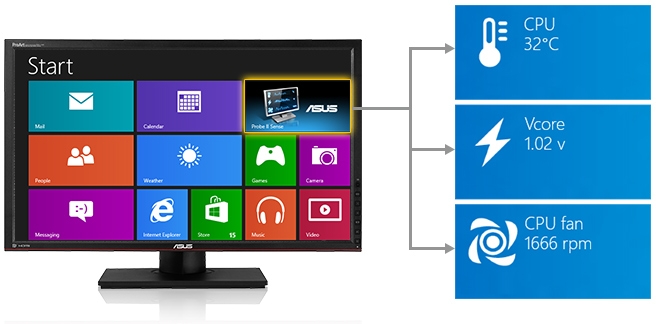

Probe II Sense

Handy system monitoring

Popular ASUS real-time system monitoring software now available for Windows 8. It helps you supervise your entire PC through a live tile on the Windows 8 start screen, and make quick adjustments. Probe II Sense is a free app available from the Windows Store.



5X PROTECTION

DIGI+ VRM

Precise power control and long-lasting stability

Voltage regulator modules (VRMs) are among the most essential motherboard components. A good VRM intelligently delivers CPU power based on actual needs at any given time. ASUS was first with digital power design featuring faster sensing and response to deliver precise CPU power on demand. This great accuracy reduces energy waste and of course improves system stability thanks to more consistent delivery.

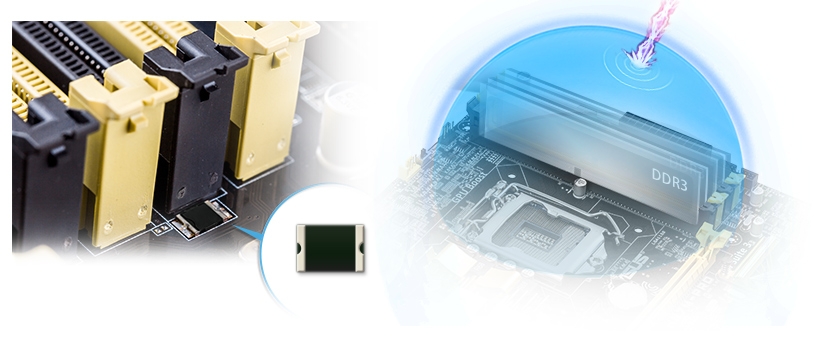

Enhanced DRAM Overcurrent Protection

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard system and device lifespan.

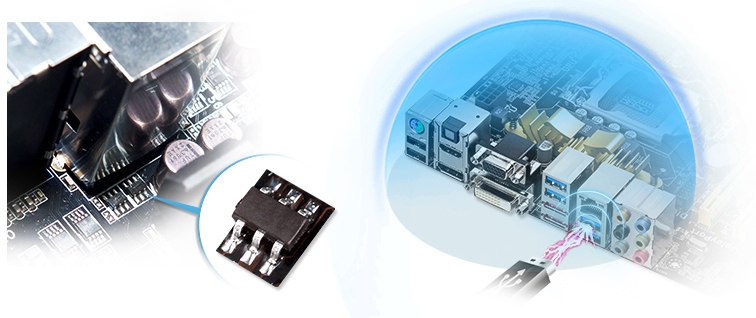

ESD Guards

Strong ESD protection for extended component lifespan

Electrostatic discharges (ESD) can happen suddenly, and their damaging effects are often underestimated. ASUS ESD Guards offer an active protective circuit design that ensures electrostatic discharges are properly grounded, providing greater component longevity.

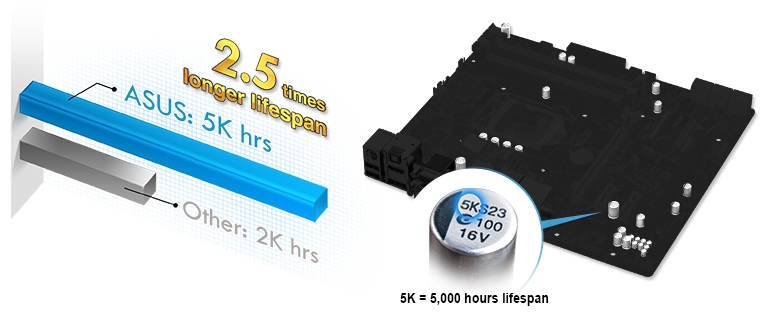

All 5K-hour solid state capacitors

2.5X longer lifespan with excellent durability

ASUS high-quality solid state capacitors assure a 5,000-hour lifespan, equivalent to 2.5 times longer than traditional capacitors. All capacitors pass testing under temperatures as high as 105 degrees centigrade and meet Japanese industrial standards to provide excellent durability and enhanced thermal capacity.

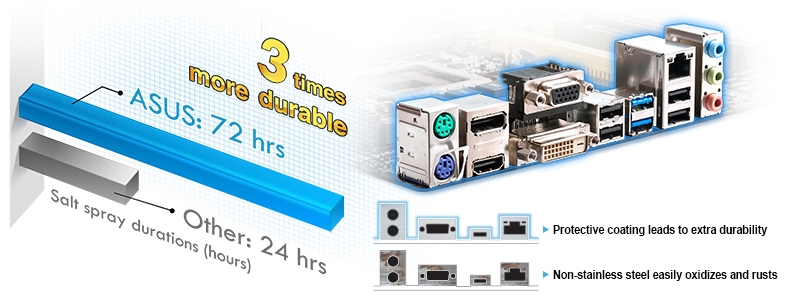

Stainless Steel Back I/O

3X more durable corrosion-resistant coating

ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a usage life three times longer compared to ordinary panels.



Multi GPU / Multi-Monitor/4K

4K Ultra HD ready

Discover future visual experiences

Following up on popular 1080p full HD, 4K Ultra HD is the next big thing, and youre ready for the upgrade thanks to integrated graphics that natively support up to 4096 x 2160 via HDMI or DisplayPort. Thats four times the pixel count of 1080p (1920 x 1080), offering incredible visual clarity, detail, and realism.

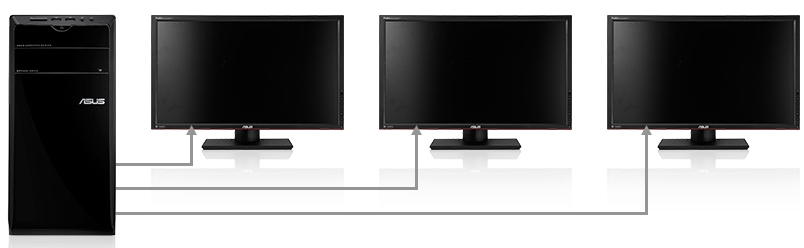

Work with up to 3 displays

Connect up to three independent monitors at once using video outputs such as DisplayPort, Mini DisplayPort, HDMI, DVI, or VGA. Choose your outputs and set displays to either mirror mode or collage mode.

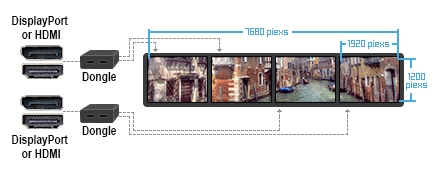

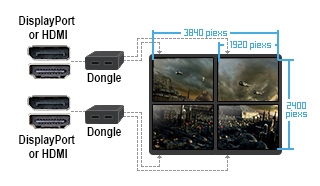

Intel Collage Display

Intel Collage Display allows images to be shown across multiple monitors, with each depicting a portion of a larger image. You can connect multiple displays to a single system and get video on several monitors with higher quality and resolution up to 4K. Connect up to six displays to drive a total resolution as high as 7680 x 1200 for Horizontal Collage Display or 3840 x 2400 for Vertical Collage Display with special dongles, like DisplayPort splitter adapters. Horizontal mode offers an extended desktop experience thats ideal for commercial applications such as finance, while vertical mode offers a simple way to enjoy 4K ultra HD content using standard HD displays.

Horizontal Collage Display: up to 7680 x 1200



Vertical Collage Display: up to 3840 x 2400



Quad-GPU CrossFireX Support

Brings you multi-GPU support using AMD CrossFireX. The Z87 chipset optimizes PCI Express allocation in multiple graphics card configurations, so you can expect brand-new gaming like youve never experienced before!



CPU and Chipset Features

Intel LGA1150 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Ready






This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world.

Intel Z87 Express Chipset


The Intel Z87 Express Chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z87 provides a maximum 6 USB 3.0 ports and 6 SATA 6Gb/s ports for faster data retrieval. Moreover, the Intel Z87 Express Chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

Intel Smart Response Technology

SSD speed with HDD capacity

Uses an installed fast SSD (min18.6GB available capacity required) as a cache for frequently-accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system.


Intel Smart Connect Technology

Auto application refresh and shorter wait times

Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience.


Intel Rapid Start Technology

Instantly awaken your PC from sleep mode

Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping energy use low.



RoHS

GreenASUS

Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.


Specifications:

  • CPU
    Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
    Supports Intel 22 nm CPU
    Supports Intel Turbo Boost Technology 2.0
    * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
  • Chipset
    Intel Z87
  • Memory
    4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    Multi-VGA output support : HDMI/DVI-D/RGB ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB
    Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
    Supports up to 3 displays simultaneously
  • Multi-GPU Support
    Supports AMD Quad-GPU CrossFireX Technology *1
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16
    1 x PCIe 2.0 x16 (x4 mode) *2
    2 x PCIe 2.0 x1
    3 x PCI
  • Storage
    Intel Z87 chipset :
    6 x SATA 6Gb/s port(s), yellow
    Support Raid 0, 1, 5, 10
    Supports Intel Dynamic Storage Accelerator, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology*3
  • LAN
    Realtek 8111GR, 1 x Gigabit LAN Controller(s)
  • Audio
    Realtek ALC892 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • USB Ports
    Intel Z87 chipset :
    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
    Intel Z87 chipset :
    8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
  • Special Features
    ASUS Dual Intelligent Processors 2 with DIGI+ VRM :

    ASUS 5X PROTECTION :
    - ASUS DIGI+ VRM - 4 Phase digital power design
    - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    - ASUS ESD Guards - Enhanced ESD protection
    - ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
    ASUS EPU :
    - EPU
    ASUS Digital Power Design :
    - Industry leading Digital 4 Phase CPU Power Design
    - ASUS DIGI+ VRM Utility
    ASUS Exclusive Features :
    - MemOK!
    - AI Suite 3
    - Ai Charger
    - Anti-Surge
    - Front Panel USB 3.0 Support
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - Network iControl
    - USB 3.0 Boost
    - Disk Unlocker
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    ASUS EZ DIY :
    - DirectKey
    - Precision Tweaker 2
    - ASUS O.C. Profile
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - Multi-language BIOS
    ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    100% All High-quality Conductive Polymer Capacitors
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
  • Back I/O Ports
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.0 (blue)
    2 x USB 2.0
    6 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x TPM header
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    3 x Chassis Fan connector(s) (3 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x DirectKey Button(s)
    1 x DRCT header(s)
    1 x MemOK! button(s)
    1 x Clear CMOS jumper(s)
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
  • BIOS
    64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
    ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 2.7, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM Version Only)
  • Form Factor
    ATX Form Factor
    12 inch x 8.4 inch ( 30.5 cm x 21.4 cm )
  • Note
    *1: With 2 PCIex16 graphics card.
    *2: The PCIe 2.0 x16 slot shares bandwidth with PCIe 2.0 x1_1 slot, and PCIe 2.0 x1_2 slot. The PCIe 2.0 x16 slot default setting is in x2 mode.
    *3: Supports on Intel Core processor family

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 3 | TM: 6 | LM: 1 | TY: 14 | T: 1896

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2024 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
