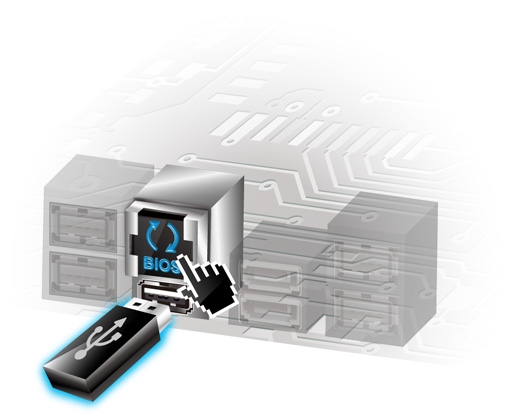

USB BIOS Flashback
Simple plug and press hardware-based BIOS flashing
Hardware-level USB BIOS Flashback allows users to update to new UEFI BIOS versions even without a CPU or DRAM installed. Just plug in a USB flash drive containing the BIOS file and press the BIOS Flashback button for 3 seconds with the power supply connected. Hassle-free updating for ultimate convenience!

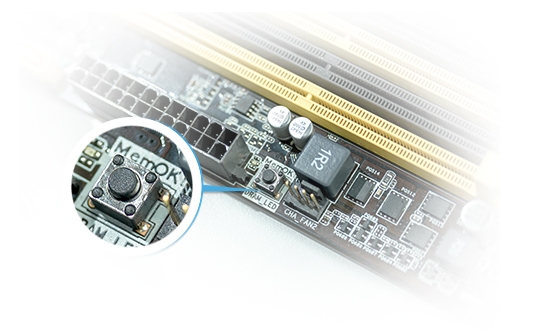

MemOK!
Enhanced memory compatibility: save time on trial and error
Memory issues can be difficult to diagnose and even harder to fix or work around. If RAM problems are preventing your system from booting, MemOK! helps by automatically loading failsafe settings to enable basic functionality with a simple push of a button on the motherboard. This troubleshooting feature saves you time and annoyance, and adds to the confidence of DIY builders.

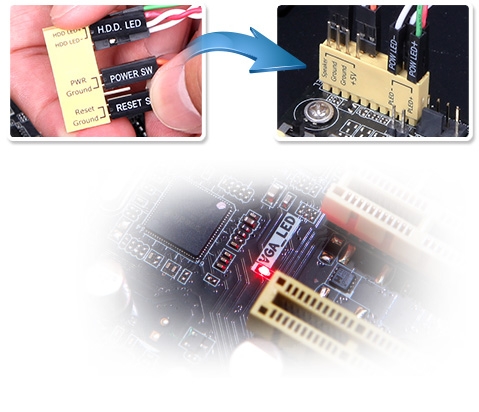

Q-Connector
Easy, quick, and accurate connections
Motherboard front panel wires and connectors used to be notorious as the hardest and most tedious part of the build process. You had to figure out which one went where, or consult confusing manuals. This took forever and caused needless frustration. The Q-Connector steps in to take care of all that. Its a one-piece plug that sits on top of the front panel headers, with clearly marked inputs for each. You no longer have to mess with easily-bent pins. The wires go into the Q-Connector, and youre good to go.
Q-LED
Easy PC diagnostics
When there's a problem with your PC, quickly being able to diagnose and remedy the issue can eliminate a great deal of frustration. ASUS Q-LED immediately indicates when there's a problem with the CPU, memory, graphics card or boot device by lighting up in the vicinity of that component.
Q-DIMM
Easy memory removal
Even if you work with a smaller case, plugging in memory is easy with one-sided clips that are right at the edge of the board and always accessible. Just push down on the clip and push or pull RAM modules in or out couldnt be simpler!

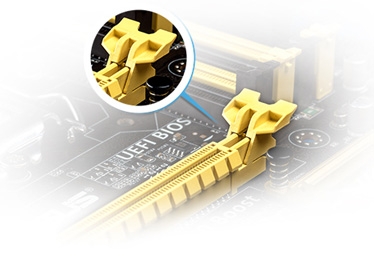

Q-Slot
Effortless PCI Express component removal
Press the Q-Slot clip lightly, and graphics cards just pop out. The large winged clip is easy to reach so you dont have to struggle with installing or removing even the biggest graphics cards.
Windows 8 Exclusive Features

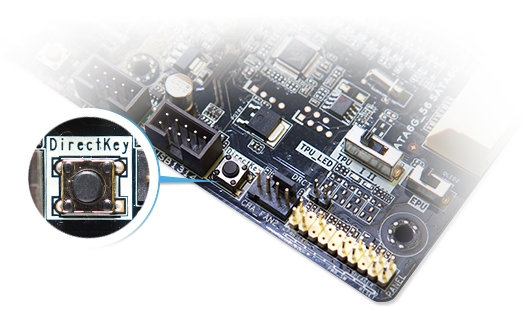

DirectKey
Dedicated direct BIOS access button
Designed for those requiring frequent BIOS access, users can easily enter the BIOS when the PC is on standby power with a simple press of a button. It saves you time during boot-up as you don’t have to repeatedly press the DEL key. Convenience and ease at their best!

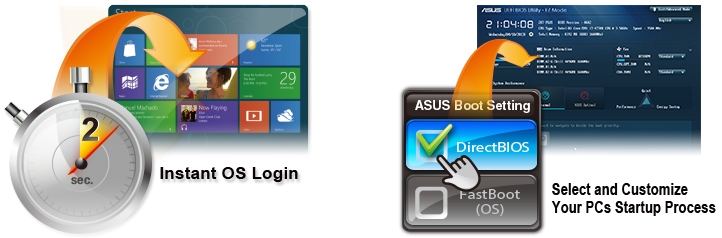

ASUS Boot Setting
Multiple startup options
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.

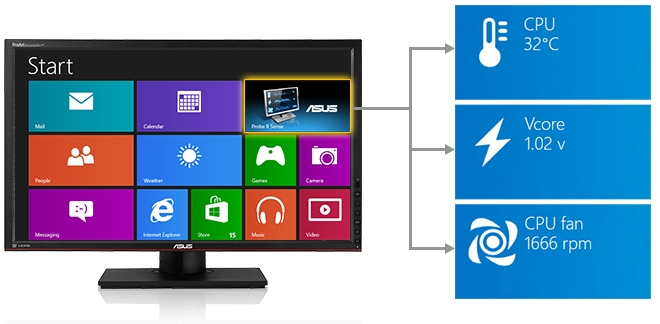

Probe II Sense
Handy system monitoring
Popular ASUS real-time system monitoring software now available for Windows 8. It helps you supervise your entire PC through a live tile on the Windows 8 start screen, and make quick adjustments. Probe II Sense is a free app available from the Windows Store.
5X PROTECTION
ASUS 5X PROTECTION
All-round protection provides the best quality, reliability, and durability
ASUS motherboards guard your PC with 5X PROTECTION. We use quality components like DIGI+ VRM digital power design for precise CPU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage. We also use corrosion-resistant back I/O shields, all examples of ASUS providing the best possible reliability and durability.

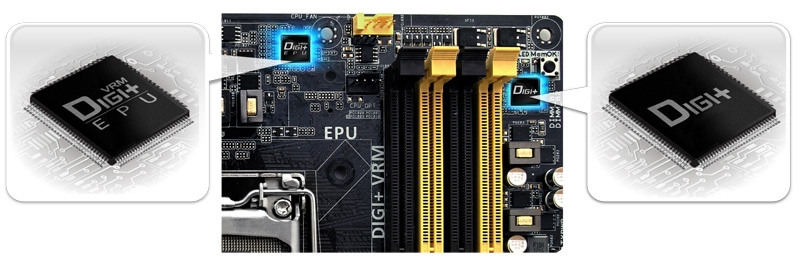

DIGI+ Power Control (DIGI+ VRM & DRAM)
Precise Digital Power Control for both CPU and DRAM
Power control is one of the most essential motherboard designs. Intelligent CPU power draw detection with ASUS DIGI+ Power Control is an innovative, industry-leading technology that fully complies with Intel VRD12.5 specifications, increasing overclocking potential, enhancing system stability, and improving power efficiency with superior flexibility and accurate control.

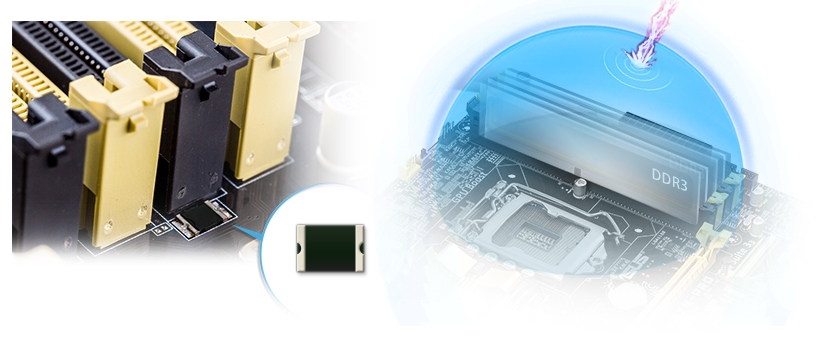

Enhanced DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard system and device lifespan.

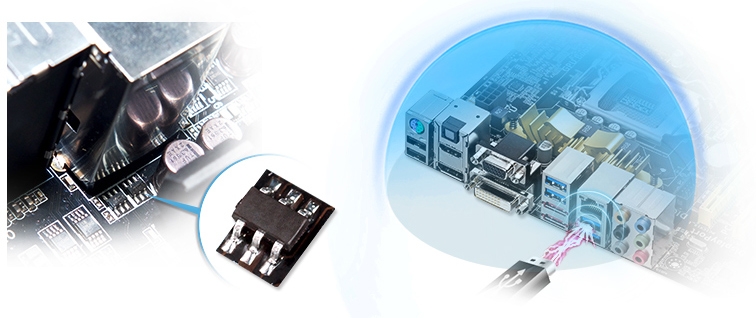

ESD Guards
Strong ESD protection for extended component lifespan
Electrostatic discharges (ESD) can happen suddenly, and their damaging effects are often underestimated. ASUS ESD Guards offer an active protective circuit design that ensures electrostatic discharges are properly grounded, providing greater component longevity.

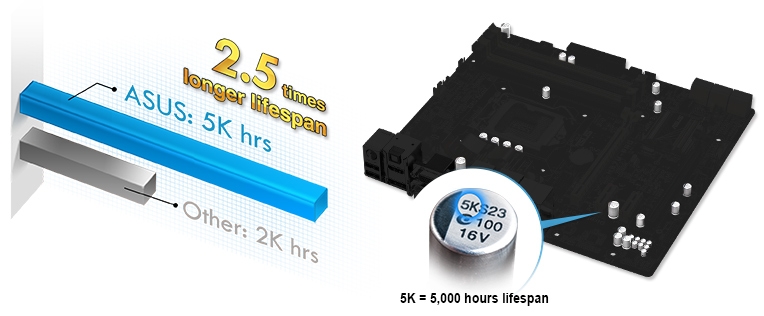

All 5K-hour solid state capacitors
2.5X longer lifespan with excellent durability
ASUS high-quality solid state capacitors assure a 5,000-hour lifespan, equivalent to 2.5 times longer than traditional capacitors. All capacitors pass testing under temperatures as high as 105 degrees centigrade and meet Japanese industrial standards to provide excellent durability and enhanced thermal capacity.

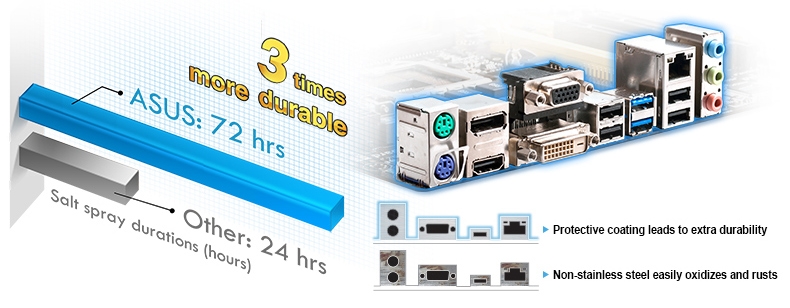

Stainless Steel Back I/O
3X more durable corrosion-resistant coating
ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a usage life three times longer compared to ordinary panels.
Multi GPU / Multi-Monitor/4K
4K Ultra HD ready
Discover future visual experiences
Following up on popular 1080p full HD, 4K Ultra HD is the next big thing, and youre ready for the upgrade thanks to integrated graphics that natively support up to 4096 x 2160 via HDMI or DisplayPort. Thats four times the pixel count of 1080p (1920 x 1080), offering incredible visual clarity, detail, and realism.

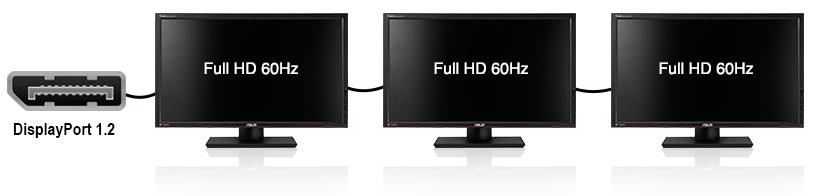

Connect up to 3 Full HD monitors via one port
DisplayPort 1.2 with Multi-Stream Transport (MST) allows you to connect up to three 1080p displays to a single output with daisy chaining, splitting the signal into three Full HD (1080p@60Hz) links.

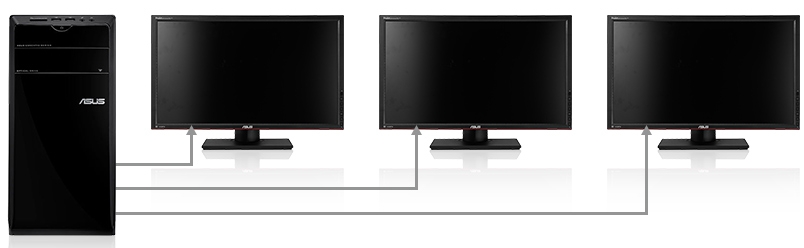

Work with up to 3 displays
Connect up to three independent monitors at once using video outputs such as DisplayPort, Mini DisplayPort, HDMI, DVI, or VGA. Choose your outputs and set displays to either mirror mode or collage mode.

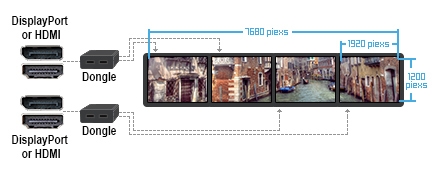

Intel Collage Display
Intel Collage Display allows images to be shown across multiple monitors, with each depicting a portion of a larger image. You can connect multiple displays to a single system and get video on several monitors with higher quality and resolution up to 4K. Connect up to six displays to drive a total resolution as high as 7680 x 1200 for Horizontal Collage Display or 3840 x 2400 for Vertical Collage Display with special dongles, like DisplayPort splitter adapters. Horizontal mode offers an extended desktop experience thats ideal for commercial applications such as finance, while vertical mode offers a simple way to enjoy 4K ultra HD content using standard HD displays.
Horizontal Collage Display: up to 7680 x 1200
Vertical Collage Display: up to 3840 x 2400
Quad-GPU SLI and Quad-GPU CrossFireX Support
Brings you multi-GPU support using NVIDIA SLI or AMD CrossFireX. The Z87 chipset optimizes PCI Express allocation in multiple graphics card configurations, so you can expect brand-new gaming like youve never experienced before!
CPU and Chipset Features
Intel LGA1150 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Ready
This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world.
Intel Z87 Express Chipset
The Intel Z87 Express Chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z87 provides a maximum 6 USB 3.0 ports and 6 SATA 6Gb/s ports for faster data retrieval. Moreover, the Intel Z87 Express Chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.
Intel Smart Response Technology
SSD speed with HDD capacity
Uses an installed fast SSD (min18.6GB available capacity required) as a cache for frequently-accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system.
Intel® Smart Connect Technology
Auto application refresh and shorter wait times
Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience.
Intel® Rapid Start Technology
Instantly awaken your PC from sleep mode
Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping energy use low.
RoHS
GreenASUS
Motherboards are EU Energy-related Products (ErP) ready, which requires products meet high efficiency standards with regards to energy consumption. This is in line with the ASUS vision of creating environmentally-friendly and energy-efficient products through design and innovation that reduce the carbon footprint of products and thus mitigate ecological impact.

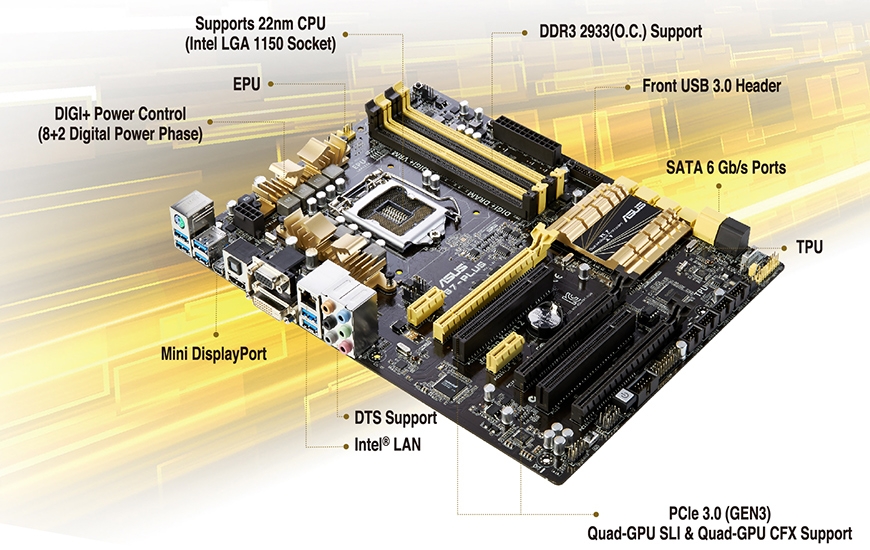

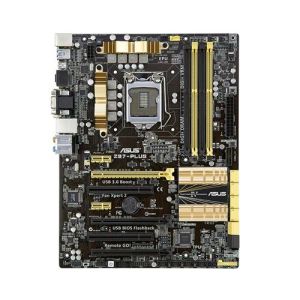

Specifications:
- CPU
Intel Socket 1150 for 4th Generation Core i7/Core i5/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
- Chipset
Intel Z87
- Memory
4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
- Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI-D/RGB/Mini DisplayPort ports *1
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports Mini DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
- Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology *2
Supports AMD Quad-GPU CrossFireX Technology
- Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x2 mode)
2 x PCIe 2.0 x1
2 x PCI
- Storage
Intel Z87 chipset :
6 x SATA 6Gb/s port(s), yellow
Support Raid 0, 1, 5, 10
Supports Intel Dynamic Storage Accelerator, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology*3
ASMedia ASM1061 controller : *4
2 x SATA 6Gb/s port(s), dark brown
- LAN
Intel I217V, 1 x Gigabit LAN Controller(s)
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
- Audio
Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- USB Ports
Intel Z87 chipset :
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
ASMedia USB 3.0 controller :
4 x USB 3.0/2.0 port(s) (4 at back panel, blue)
- Special Features

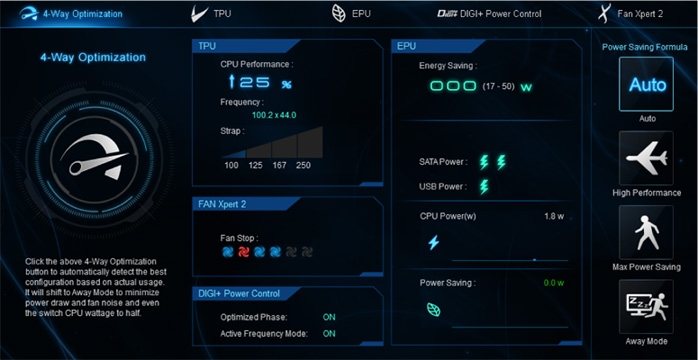

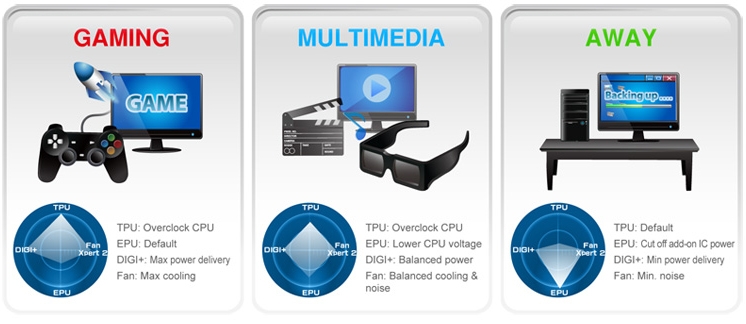

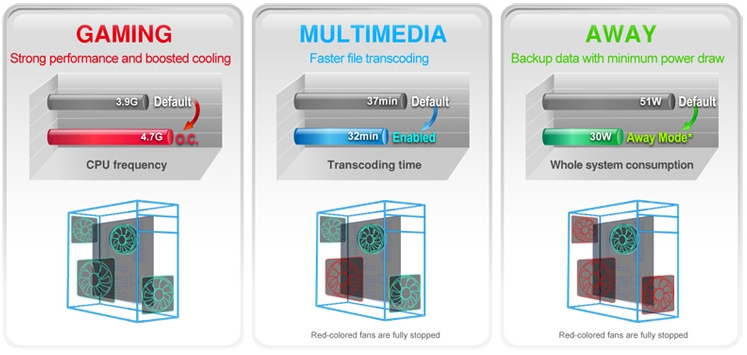

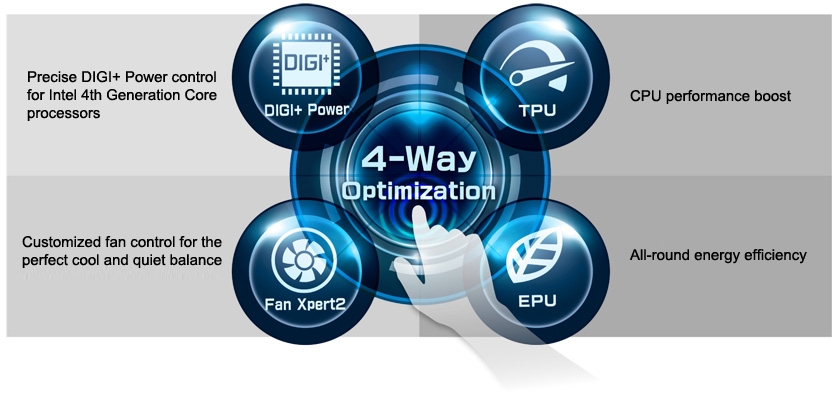

ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
ASUS 5X PROTECTION :
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS All 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating

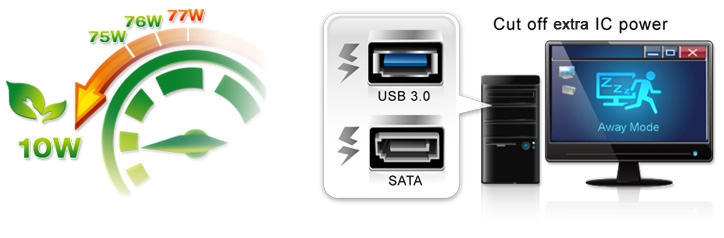

ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase CPU Power Design
- Industry leading Digital 2 Phase DRAM Power Design
- ASUS DIGI+ VRM Utility
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features :

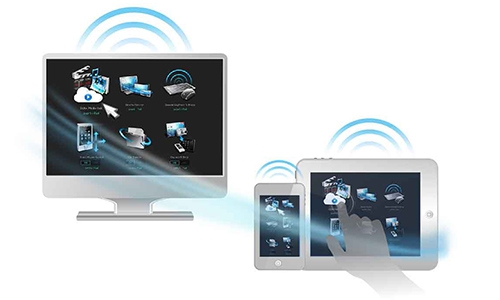

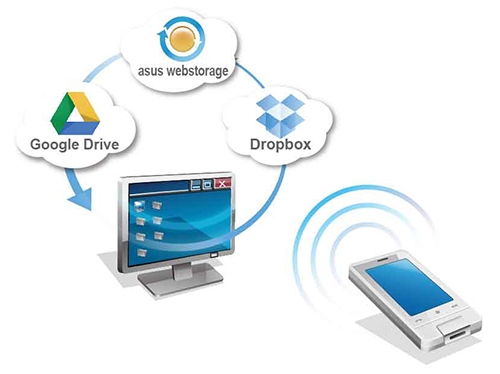

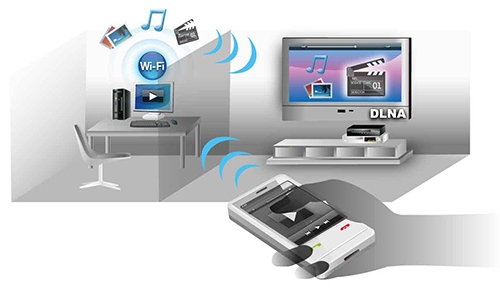

- Remote GO!
- USB BIOS Flashback
- MemOK!

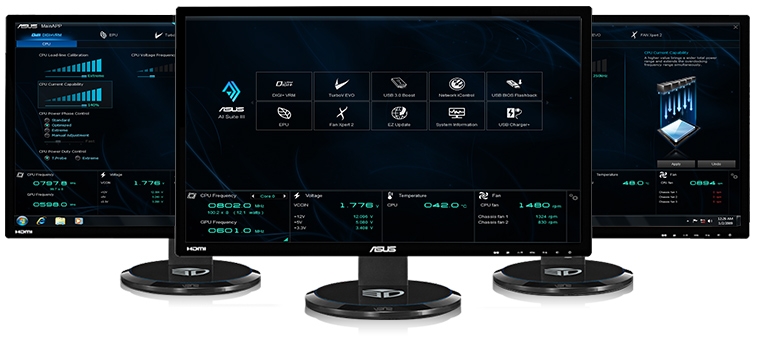

- AI Suite 3
- Ai Charger+
- USB Charger+
- Anti-Surge
- Onboard Button : Power
- Front Panel USB 3.0 Support

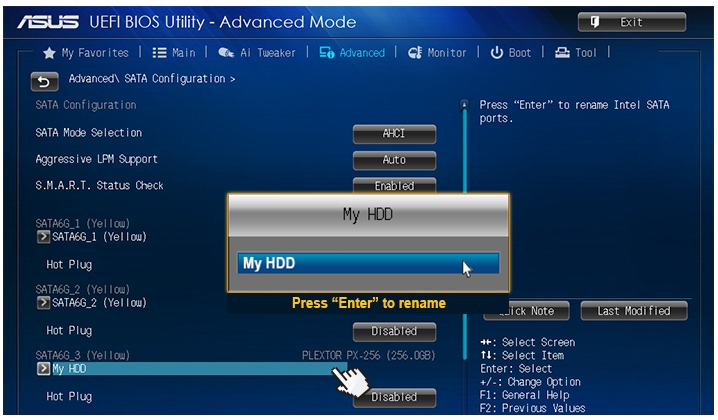

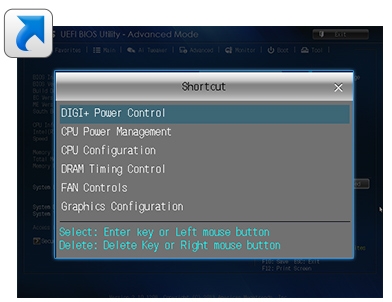

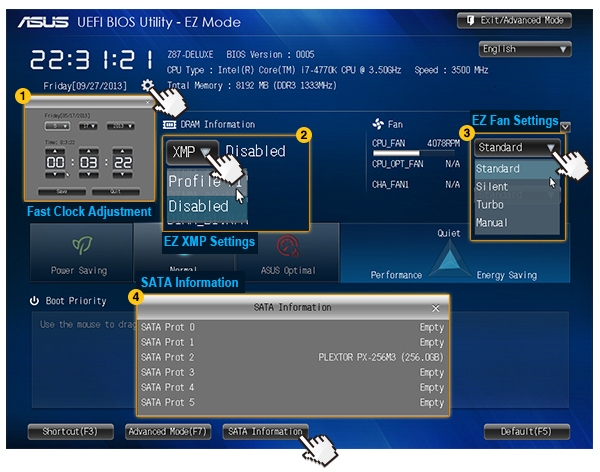

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

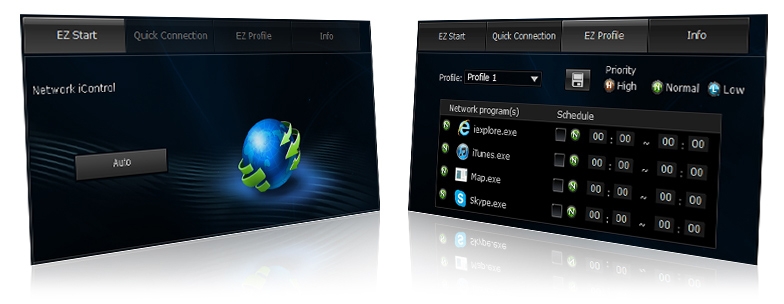

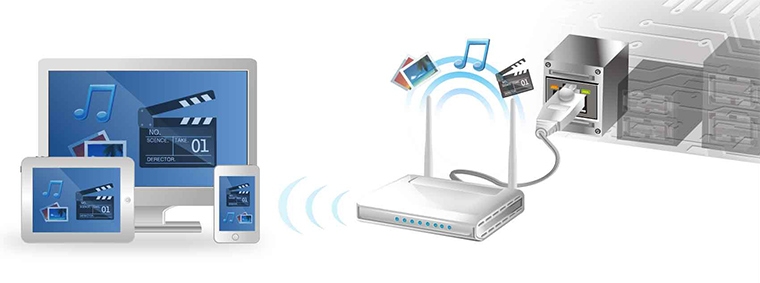

- Network iControl

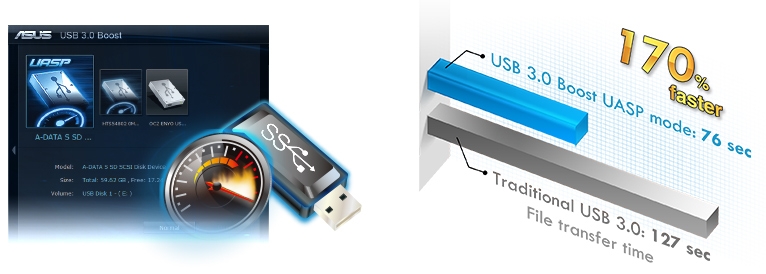

- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution

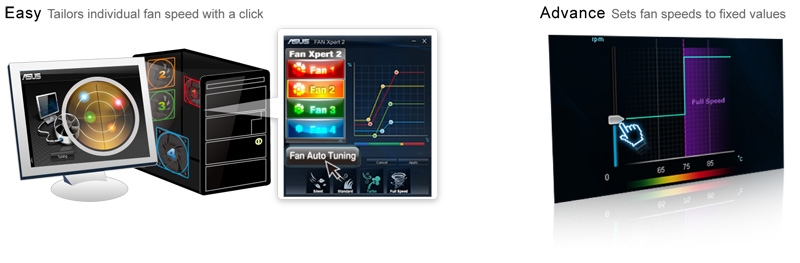

- ASUS Fan Xpert 2
ASUS EZ DIY :
- DirectKey
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
- Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Mini DisplayPort(s)
- Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)

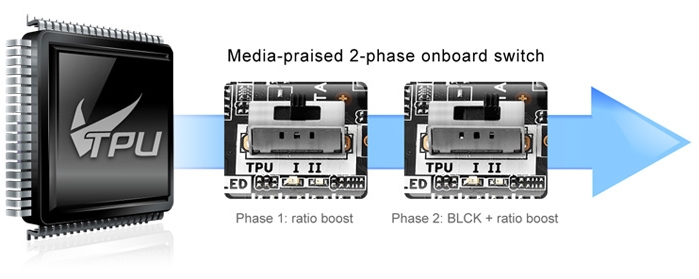

1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x USB BIOS Flashback button(s)
- Accessories
User's manual
I/O Shield
3 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
- BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,

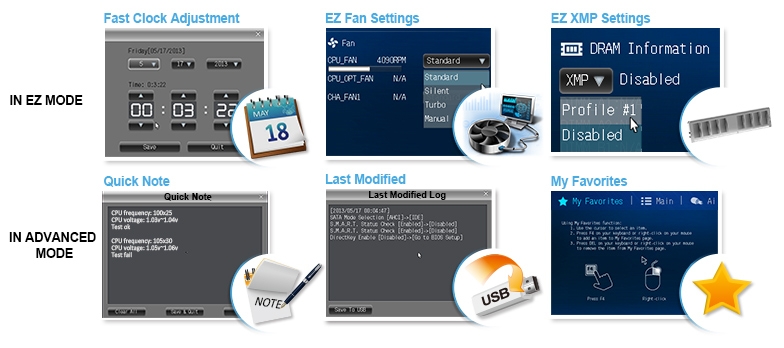

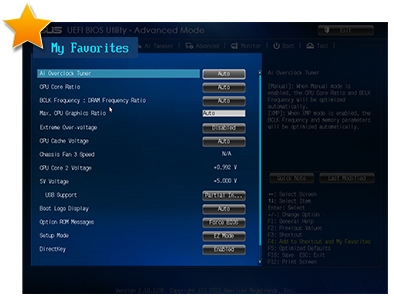

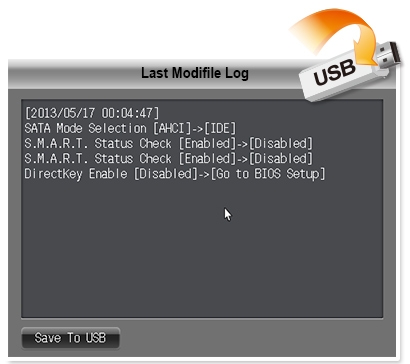

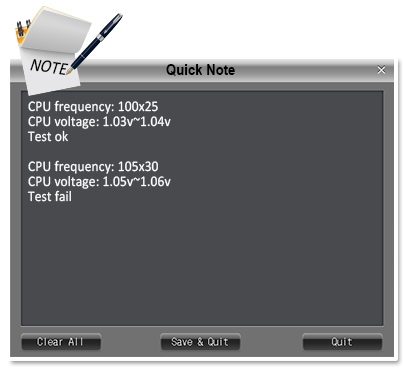

ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
- Form Factor
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.37 cm )
- Note
*1: DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
*2: With 2 PCIex16 graphics card.
*3: Supports on Intel Core processor family
*4: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
