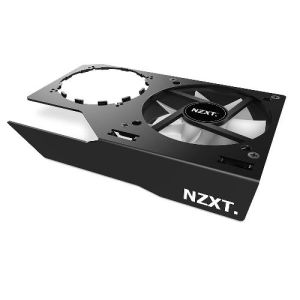

NZXT Kraken G10 GPU Bracket - 92x92x25mm Fan, Sleeve Bearing, 1500rpm - Black

IMG 1 of 1
No Longer Available
Part Number:
312657
(?) Brand:
NZXT Web Site
Manuf No:
8A-KG10YC1-B0M
8AKG10YC1B0M
Shipping Weight:
0.85 KG (Includes product packaging)
Estimate Shipping
Date Added:
5/2/2014
Details Files Images & Video
All stock codes associated to this product
8AKG10YC1B0M, 8A-KG10YC1-B0M, ACNZG10B

Kraken G10


GPU Bracket

Features

With an included 92mm fan to cool the VRM and the high performance abilities of the Kraken cooler, the Kraken G10 offers over 40% cooling increases over stock coolers, a level of performance only previously achievable with a costly custom liquid cooled setup.

Based on tests performed using Kraken G10 & Kraken X40 vs GTX-780 stock cooler

Compatibility

Kraken G10 features wide compatibility for over 24 different reference graphics cards and more than 19 different all-in-one liquid cooling solutions. See spec chart for full compatibility details.

92 mm fan included to provide addition VRM cooling

EASY INSTALLATION

Universal mounting hardware provides easy installation.

Zip-tie points also included to hide tubing for a cleaner installation.

Specifications

Tech Spec.

Model Number RL-KRG10-W1 (White)
RL-KRG10-B1 (Black)
RL-KRG10-R1 (Red)
Dimensions 177 (W) x 32.5 (H) x 110.6 (D) mm
Fan Bearing Sleeve
Fan Connector 3-Pin
Compatibility Nvidia : GTX 780 Ti, 780, 770, 760, Titan, 680, 670, 660Ti, 660, 580, 570, 560Ti, 560, 560SE
AMD : R9 290X, 290, 280X*, 280*, 270X, 270 HD7970*, 7950*, 7870, 7850, 6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830
The compatibility list is based on AMD Radeon and NVIDIA's reference board layout, screw spacing and die height only. Please check the height restriction before purchase.
* Some variations in AMD die height may require the use of a shim.
Compatibility NZXT : Kraken X60, Kraken X40
Corsair : H110, H90, H75, H55 , H50
Antec : KUHLER H2O 920V4, KUHLER H2O 620V4, KUHLER H2O 920, KUHLER H2O 620
Thermaltake : Water 3.0 Extreme, Water 3.0 Pro, Water 3.0 Performer, Water 2.0 Extreme, Water 2.0 Pro, Water 2.0 Performer
Zalman : LQ-320, LQ-315, LQ-310
Fan Dimensions 92 (W) x 92 (H) x 25 (D) mm
Fan Input Power 2.16W
Fan Current 0.18A
Fan Speed 1500 10% R.P.M.
Fan Voltage 12V DC
Warranty 2 Years (Removing your stock cooler will potentially void your GPU warranty, NZXT is not liable for any damage resultant of incorrect installation.)
