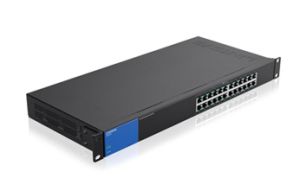

LINKSYS SWITCH LGS124P
24-Port Gigabit PoE Switch


OVERVIEW

  • Wired connection speed up to 1,000 Mbps
  • 24 Gigabit Ethernet autosensing ports
  • Quality of Service (QoS) traffic prioritization
  • Power over Ethernet (PoE) support
  • Easy plug & play connection

FEATURES


GIGABIT PERFORMANCE

The unmanaged switch offers Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.


POWER WHERE YOU NEED IT

With PoE+ built-in, networking devices such as network hubs, IP phones, and IP cameras can be located anywhere without the need for AC outlets.


PLUG AND PLAY CONVENIENCE

The Linksys unmanaged switch offers a quick and easy solution to extend your office network with plug & play installation.


QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

QoS traffic prioritization provides the ability to give precedence to particular devices or activities to ensure mission critical data throughput is maintained regardless of network congestion. Auto-sensing ports automatically optimize speed for each connected device.

Specifications:


Model: LGS124P
Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+)
Number of Ports: 24-ports switch with 12 PoE+ ports (ports 16 and 1318) and dedicated PoE power budget of 120 W
Bandwidth: 48 Gbps (non-blocking)
Performance: Full line rate and forwarding rate of 64B frame at: 1.488 Mpps for 1000M port, 0.1488 Mpps for 100M port, 0.01488 Mpps for 10M port
Quality of Service: 802.1p and DSCP
Status LEDs: Link, speed, activity, and PoE indicators
Power Supply: Internal
Power: 100240 VAC, 50/60 Hz
Power Saving: Cable connected detection Sleep mode
Power Consumption n Idle/Use (100% Traffic) 7.79 W / 17.65 W
Fan One
Unit Dimensions 440 x 200 x 44 mm (171.6 x 78 x 17.16 in.)
Unit Weight 2.758 kg (6.08 lbs)
Temperature (Operating) 050C (32122F)
Temperature (Storing) -4070C (-40158F)
Humidity (Operating) 1090% (non-condensing)
Humidity (Storing) 1090% (non-condensing)
Certifications FCC Class A, CE, UL, CB
Mounting Rack mount
Minimum System Requirements Connected devices need Ethernet connectivity and Ethernet cables
Warranty and Support Lifetime limited warranty
Package Contents Linksys LGS124P 24-Port Gigabit Ethernet PoE Switch, Power Cord, Quick Start Guide
MAC Address Table 8K

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Linksys) web site.
