All stock codes associated to this product
HG32AA470PW, HG32AA470PWXXY

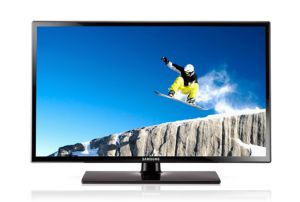

32" 470 Series Hospitality Display (HA470)
HG32AA470PW
Hospitality Displays With Simple And Easy Solution
Enjoy great performance with features like optional swivel stand and welcome message and logo display. Integrated solutions like REACH and SIRCH will help enhance content and add to the simple and sleek design.
Your guests have high standards, and the 32 inch Series 47 can help you exceed their expectations with in-room displays that are changing the face of the hospitality business. This display's features deliver world-class performance, complementing the feel of your rooms. This HDTV will help to make their stay a memorable one for all the right reasons.
REACH
REACH (Remote Enhanced Active Control for Hospitality) is the integrated solution that allows your Hospitality Display to combine amazing quality for your guests with brand-building tools for your business. Display your corporate logo and images, programme guides and hotel information at the touch of a button, either centrally or room-by-room. Moreover, you can use REACH through your existing coax cables with the minimum amount of hassle, adding value to your guests' experience.

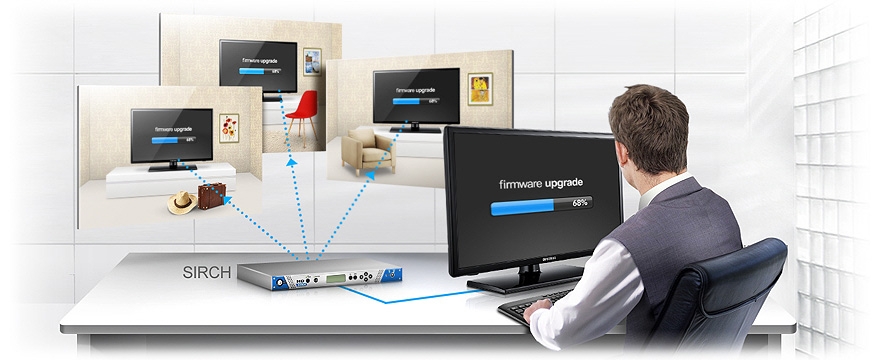

SIRCH
The 32 inch Series 47 Hospitality Displays incorporate compatible efficient SIRCH solution (Samsung Interactive Remote Control for Hospitality), which allows you to manage hundreds of displays remotely from a single central location. With this system you can configure settings such as volume control, upgrade firmware and update channel lists and other content. SIRCH significantly reduces the effort involved in managing each television set, saving you time, resources and stress. Moreover, unlimited service and protection from programme interruptions serve to improve your guests' overall experience.

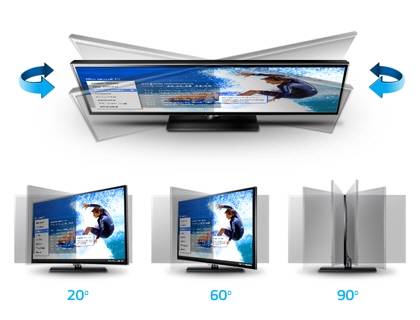

Swivel Stand With Optional Stops
Our Hospitality Displays rotate in both directions, with optional 20, 60 and 90 degree settings, giving your guests an excellent view of their TV wherever they are in the room.
Specifications:
Audio
| Dolby |
Dolby Digital Plus / Dolby Pulse |
|
| SRS |
SRS TheaterSound |
|
| dts 2.0+Digital Out |
Yes |
|
| Speaker Type |
Down Firing + Full Range |
|
| Sound output |
SRS TheaterSound |
|
| Bathroom Speaker Out |
4W Mono |
|
Display
| Screen Size |
32" |
|
| HD/FHD |
HD |
|
| Brightness |
330cd/m2 |
|
| Resolution |
1366 x 768 |
|
| Response Time |
8ms |
|
| Picture Engine |
HyperReal Engine |
|
| Clear Motion Rate |
100 |
|
| Wide Colour Enhancer |
Wide Color Enhancer Plus |
|
| Film Mode |
Yes |
|
| Viewing Angle (Horizontal/Vertical) |
178/178 |
|
| Backlight |
LED |
|
| Static Contrast Ratio |
4000:1 |
|
Smart Content
| Samsung SMART TV |
No |
|
| Web Browser |
No |
|
Mechanical Specification
| VESA Mount |
200*200 |
|
| VESA Screw Size |
M6 |
|
Interface
| D-Sub |
1 |
|
| RF In |
1 |
|
| RJ12 for External Control |
1 |
|
| RJ45 |
No |
|
| HDMI(Side/Rear) |
1/2 |
|
| USB(Side/Rear) |
1/0 |
|
| Component In (Y/Pb/Pr) (Side/Rear) |
0/1 |
|
| Composite In (AV) (Side/Rear) |
0/2(Common Use for Component Y) |
|
| Headphone |
1 |
|
| Headphone ID |
1 |
|
| Digital Audio Out (Optical) |
No |
|
| Audio Out (Mini Jack) |
1 |
|
| Variable Audio Out |
1 |
|
| Variable Audio Out Volume Control |
1 |
|
| RJP Jack (Remote Jack Pack) |
1 |
|
| PC Audio In (Mini Jack) |
1 |
|
| DVI Audio In (Mini Jack) |
1 (Common Use for PC Audio in) |
|
| Ethernet (LAN) |
No |
|
General Feature
| Samsung 3D |
No |
|
| Allshare (Powered by DLNA) |
No |
|
| Wireless LAN Builit-in |
No |
|
| EPG |
Yes |
|
| Teletext (TTX) |
Yes |
|
| OSD Language |
Local Languages |
|
| Digital Noise Filter |
Yes |
|
| ConnectShare (USB2.0)-Movie |
Movie |
|
| Anynet+ (HDMI-CEC) |
Yes |
|
| Caption (Subtitle) |
Yes |
|
| Picture-in-Picture |
1 Tuner PIP |
|
| Auto Channel Search |
Yes |
|
| Auto Power Off |
Yes |
|
| Auto Volume Leveller |
Yes |
|
| Clock & On/Off Timer |
Yes |
|
| Game Mode |
Yes |
|
| Sleep Timer |
Yes |
|
| Soft AP |
No |
|
Hospitality Feature
| Smart Widget Solution (CMS) |
No |
|
| Smart Widget Solution (H-browser) |
No |
|
| REACH |
Yes |
|
| SIRCH Compatibility |
Yes |
|
| Hospitality Plug&Play (Easy Setup) |
Yes |
|
| RJ12/IR Pass Through |
Yes |
|
| Music Mode (Input: PC/AV/Component) |
Yes |
|
| Music Mode Backlight on/off |
Yes |
|
| Power On Status Setting (Keycard/Master Power off) |
Yes |
|
| Jack Pack Compatiblity |
Yes |
|
| USB Cloning |
Yes |
|
| Variable Audio Output |
Yes |
|
| Hotel Channel List |
Yes |
|
| Logo Display with Time out Setting(BMP/Movie) |
Yes |
|
| Welcome Message |
Yes |
|
| Auto Source Mode |
Yes |
|
| Energy saving mode (BLU Control) |
Yes |
|
| Multi Code Remote |
Yes |
|
| Screwed Remote Battery Cover |
Yes |
|
| Alarm Key |
Yes |
|
| Mixed Channel List (DVB T, Analog) |
Yes |
|
| Soundbar Compatibility |
Yes |
|
System
Design
| Slim Type |
Normal |
|
| Stand Design |
Square |
|
| Swivel (left/right) |
20/60/90 |
|
| Colour |
Black |
|
Power
| Power Supply (V) |
AC220-240V 50/60Hz |
|
| Power Consumption (Rated) |
52W |
|
| Power Consumption (Stand-by) |
0.3W |
|
| Power Consumption (IEC 62087 Edition 2) |
34W |
|
Eco
| Eco Sensor |
No |
|
| Energy Saving Mode Power Consumption |
Medium |
14W |
| |
Low |
22W |
| |
High |
18W |
Security
Dimension
| Set Weight with Stand |
7.8 |
|
| Set Weight without Stand |
5.8 |
|
| Set Dimension with Stand (WxHxD) |
738.8*500.8*191.7 |
|
| Set Dimension without Stand (WxHxD) |
738.8*436.7*93.2 |
|
| Package Dimension (WxHxD) |
902.0*530.0*162.0 |
|
Accessory
| Remote Controller Model |
TM1050 |
|
| Battery (for Remote Control) |
Yes |
|
| Power Cable |
Yes |
|
| RJ 12 Cable |
Yes |
|
| Installation Manual (Quick Guide) |
Yes |
