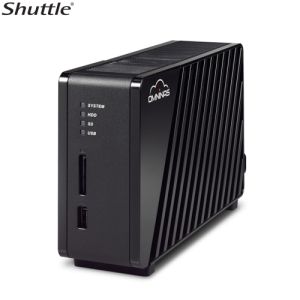

The KS10 is a 1-bay NAS which supports a 3.5 hard disk and maximum capacity of 4TB. Thanks to its screw-free design, the KS10 is one of a kind among NAS products and features super easy hard drive installation.
Superb Transfer Performance
The KS10 is equipped with Marvell 88F6707 800MHz SOC, DDR3 256MB memory, support Gigabit LAN, and the read/write speed reach up to 80MB/s & 60MB/s. The OMNINAS KS10 allows for up to 256 users to access data at the same time to meet home, SOHO, and SMB sector needs.
Transmission performance according to environmental conditions may vary.
PTP Camera Copy
Simply connect any PTP compatible camera via USB port and the KS10 will automatically save photos and videos to a specified folder without the use of a computer.
iTunes Server
Creating an iTunes server based on an OMNINAS is easy to set up and allows users to play back media content and stream it directly to other devices with iTunes clients over a network.
Print Server
The OMNINAS works as a print server. Simply connect a printer to the NAS to share copies over the network.
Energy saving & Green power
The KS10 consumes a mere 5.8W in standby mode and as low as 11.9W during normal operation. The device complies with IEEE 802.3az network energy conservation standards for a smaller environmental footprint.
BT Download without PC
Users need only load BT seeds to the NAS. Download files without the use of a PC and save electricity costs with the BT function. This feature supports schedule download, task download, and download configuration etc.
Online Firmware Update
Unlike other NAS products with complicated updating procedures, the KS10 offers easy online firmware update. Users will receive notification of firmware updates and have the option for automatic download to keep NAS up to date.
Hotspot Function
The KS10 is a built-in Wireless AP (IEEE 802.11 b/g/n) that supports the Hotspot function. The KS10 extends wifi environment allowing for all wifi compatible devices to connect. Users can conveniently search and access the NAS database wirelessly from mobile devices.
USB ports & SD Card Reader
The KS10 supports Auto Copy function on USB 2.0 ports and SD card reader meaning automatic storage of files to the NAS without the use of a PC.
DLNA Media Server-Twonky
The integrated Twonky DLNA Media Server software automatically sorts all the media stored on the NAS (photos, videos, music), so users no longer need to spend time organizing files. The KS10 features high compatibility with other DLNA devices. Users can easily play multimedia content by media player.
FTP Server
The KS10 supports FTP server function. Users need only complete the Router and NAS setting to build FTP server on NAS, by internet allowing friends and family easily to transfer data at anytime from anywhere.
OMNINAS App
All of OMNINAS series products feature internet cloud sharing (Remote Access) and can easily be connected to laptops, smart phones, tablets, etc. By downloading OMNINAS App to smart mobile devices, users can easily share and store files to family and friends from any place in the world.
Fanless design
The KS10 features a fanless and nearly silent design with excellent cooling. It not only maintains high stability for long-term operation but also keeps the system very quiet.
Schedule on/off & Wake on LAN
Users can easily schedule the KS10 to turn on/off automatically at various times in the day. Additionally, it features Wake on LAN function. Users can wake the device up via internet from remote locations.
Specifications
| CPU |
Marvell 88F6707 800GHz |
| HDD |
3.5" HDD |
| OS |
Linux |
| Largest single HDD capacity supported |
over 4TB |
| DRAM |
256MB DDR3 |
| NAND |
1Gb |
| USB 2.0 |
2 |
| Card Reader |
SD |
| 10/100/1000 Ethernet |
YES |
| RTC |
YES |
| Power Adaptor |
40W |
| Power Consumption (Standby/Operational) |
5.8W / 11.9W |
| Performance (Read/Write) MB/s |
80/60 |
| Max. # of users |
256 |
| Max. # of share folders |
256 |
| Max. # of concurrent connections |
256 |
| LED Indicators |
Power/Status button ,HDD, USB devices, Card Reader |
| Alarm Buzzer |
YES |
| Reset Button |
YES |
| Power Button |
YES |
| Secure lock |
YES |
| Operation Temperature |
0 - 40 C |
| Certification |
CE, FCC, C-Tick, BSMI, CB, EuP Lot6, R&TTE |
| Chassis |
Plastic |
| Size |
124mm (H) x 60mm (W) x 205mm (L) |
| Weight |
550g |
| Accessories |
Power Adaptor (40W), AC Power Cord, Ethernet Cable, CD, QSG |
| Secure lock 10/100/1000 Ethernet |
IEEE 802.11 b/g/n |
| Wireless Support |
AP mode |
| Supported OS |
Microsoft Windows XP and above, Mac OS and Linux |
| Mobile Device Access |
iPhone, iPAD, Android phone, Android tablet |
| Supported Mobile OS |
iOS 4.2 and above, Android 2.3 and above |
| Mobile Device Application |
App Store for iPhone & iPAD, Google Play for Android phone & tablet |
| Supported Browser |
IE 8.0 or later, Firefox 3 or later, Safari 3 or 4 and Google Chrome |
| Languages |
12 (English, , , , Deutsch, Franais, , Nederlands, Espaol, Italiano, Dansk,Trke) |
| File System |
Internal : XFS
External: EXT2, EXT3, EXT4, XFS, NTFS, FAT, FAT32 |
| LAN Configuration |
DHCP/Static IP
Auto IP
Hostname/Group name |
| Networking Services |
Samba Server (File sharing)
DHCP client
USB Storage devices sharing
Printer Server
iTunes Server
Twonky DLNA Media Server
Apple File Protocol (AFP)
NTP for time synchronization
FTP/SSL FTP Server |
| Backup |
Quick Copy for USB Storage devices (USB Storages to NAS)
Time Machine support
NAS to USB Storage backup
NAS to NAS backup
Memory card to NAS |
| Scheduling |
Schedule backup
Schedule for NTP time synchronization |
| Remote Access |
Remote Access by Internet Browser
Remote Access by Smartphone / TabletWake on Lan |
| Disk Management |
HDD Spin-down timer
Single disk
Check Disk
Disk usage status management
Disk Format
SMART information report |
| Download |
BT Download without PC
(schedule download, tasks download, download configuration, etc.) |
| System Setup/Tools |
On line Firmware upgrade
Time-Zone Settings
Wizard and installer for easy setup
NAS Discovery tool (Finder to search/connect/map drives)
Factory Reset
System log
Schedule on/off
Power Interrupt auot resume |
