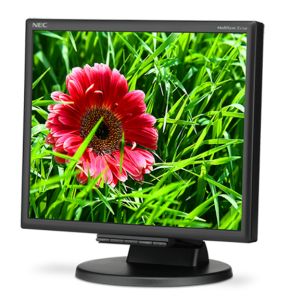

17" Desktop Monitor with LED Backlighting
MODEL: E171M-BK
Boost your productivity while being environmentally friendly with the 17” NEC MultiSync E171M, an eco-conscious LED backlit LCD desktop monitor that enhances your computing experience. The LED backlighting of the E171M allows for lighter weight and increased power savings compared to previous generation models, a carbon footprint meter for tracking the conservation of green gas emissions and Intelligent Power Manager (IPM) system. These advantages, combined with an ergonomic design make this model ideal for corporate environments.
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Height-adjust, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
- Full connectivity, including DVI-D and VGA inputs
- Integrated speakers and headphone jack bring additional usability
- ECO Mode™ allows you to manually adjust the display’s brightness to your liking, saving power and reducing your energy costs
- ENERGY STAR 6.0 and TCO 6.0
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Technologies
Rapid Response™
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
Ambix®
Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.
XtraView®
Delivers wide viewing angles of up to 176º horizontally and vertically (up to 88º up, down, left and right) without any glare, reflection or distortion.
No Touch Auto Adjust™
Allows the monitor to be automatically adjusted to optimal image settings when initially turned on.
LED Backlight
Provides for industry-leading low power consumption and less hazardous materials.
Specifications
Display
Panel Technology: TN
Viewable Image Size: 17"
Aspect Ratio: 5:4
Native Resolution: 1280 x 1024
Pixel Pitch: 0.26mm
Pixels Per Inch: 96@ native resolution
Backlight Type: W-LED
Brightness (typical): 250cd/m2
Contrast Ratio (typical): 1000:1
Viewing Angle (typical): 170° Vert., 170° Hor. (85U/85D/85L/85R) @ CR>5
ResponseTime (typical): 5ms
Displayable Colors: More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital): 31.5-81.1 kHz
Vertical: 56-76 Hz
Input Signal
Video: Analog RGB 0.7 Vp-p/75 Ohms
Sync:
Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
Input Connectors
DVI-D, VGA 15-pin D-sub
Power Consumption (typical)
On: 12W
Power Savings Mode: 15W
Physical Specifications
Dimensions (WxHxD)
Net (with stand): 14.5 x 14.1-16.1 x 9.1 in. / 368 x 358.5-408.5 x 230mm
Net (without stand): 14.5 x 12.6 x 2.4 in. / 368 x 320.5 x 61mm
Weight
Net Weight (with stand): 9.3 lbs. / 4.2 kg
Net Weight (without stand): 6.6 lbs. / 3.0 kg
VESA Hole Configuration Specifications
100 x 100mm
Environmental Conditions
Operating Temperature: 41-95°F / 5-35°C
Operating Humidity: 20-80%
Operating Altitude: 6562 ft. / 2000m
Storage Temperature: 14-140°F / -10-60°C
Storage Humidity: 10-85%
Storage Altitude: 40,000 ft. / 12,192m
Environmental Compliance
ENERGY STAR: 6.0
TCO: 6.0
EPEAT: Silver
RoHS: Yes
Limited Warranty (parts & labor, including backlight)
3 years
Additional Features
ECO Mode
Carbon footprint meter
Thin frame
Tilt
Height-adjustable stand
Integrated speakers
Rapid Response
Ambix
XtraView
OSD user controls
NaViSet software
Cable management
Touch-integratable
VESA mount
HDCP
DDC/CI
No Touch Auto Adjust
Plug and Play (VESA DDC 1/2B)
VESA DPMS power management
AccuColor color control
Digital smoothing
Digital controls
ISO 13406-2 Class II
Ships With
Setup sheet
User manual
Power cord
15-pin D-sub cable
Audio cable
