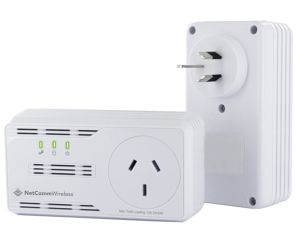

500Mbps Powerline Kit with AC Pass-through - NP505
Overview
500Mbps Powerline Kit with AC Pass-through
Transform your existing electrical wiring into a high-performance online network capable of supporting todays most bandwidth-intensive activities. With the 500Mbps Powerline Kit with AC Pass-through, all you need is an available power point to create a high speed Internet connection in any room of the house. Enjoy high-definition streaming, multimedia and online gaming in any area of the home. With two Ethernet ports and a compact design, these Adapters will allow multiple convenient connections to the Internet.
Lightning fast Powerline
A 500Mbps data signal is transmitted between the adapters over Powerline to create an instant access point for bandwidth-intensive devices such as HD-TVs, gaming consoles and Blu-ray players. Simply connect your devices directly to the Ethernet ports for a powerful broadband connection in any room.
Connect with Ethernet
With two Ethernet ports on each Adapter, multiple connections can be made to your Powerline network at the same time. Perfect for setups like home entertainment centres where a gaming console and TV can be connected at the same time.
Noise filtering
The AC pass-through socket also improves network performance over Powerlines by reducing noise interference from other electrical devices to give you an optimal online experience.
Simply plug and play
The user-friendly 500Mbps Powerline Adapters work straight out of the box so you can focus on enjoying your online activities. With no setup required, simply connect the adapters to power and you're connected.
Technical Specifications
PACKAGE INCLUDES
- 2 x Powerline Adapters with AC Pass Through
- 2 x Ethernet Cables (RJ-45)
- Printed Quick Start Guide
- Warranty Card
MINIMUM SYSTEM REQUIREMENTS
- Modem Router
- Active Internet Connection
- Available Power Sockets
- Computer or network device with a free Ethernet port
MAIN CHIPSET
- Powerline: Atheros AR7420 + AR1540 chipset
STANDARDS
- Powerline: IEEE 1901/HomePlug AV
- Ethernet: IEEE 802.3 10/100/1000 Mbps Auto MDI/MDIX
- Compliant to EuP
MODULATION SUPPORT
- Powerline: OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK and ROBO
DATA TRANSFER RATE
- Up to 500Mbps over Powerline
RANGE
- Up to 200m over Powerline
SECURITY
- 128-bit AES Encryption (enabled with Simple Connect button)
EXTERNAL CONNECTORS
- 2 x 10/100 Ethernet LAN ports
- 1 x Reset button
- 1 x Simple Connect push button
- 1 x Filtered AC pass-through socket
LED INDICATORS
- 1 x Bicolour Power LED
- 1 x Bicolour Powerline Link/Activity Status LED
- 1 x Bicolour Ethernet Link/Activity Status LED
POWERLINE FILTERING
- Filtering at frequency band 2MHz to 68MHz
- Filter characteristics: -25dB to -45dB
POWER SUPPLY
ENVIRONMENTAL
- Operating: 00C to 400C
- Non-Operating: -250C to 700C
- Operating: 30% to 80% Relative Humidity (Non-Condensing)
- Non-Operating: 30% to 95% Relative Humidity (Non-Condensing)
MEASUREMENTS
- Dimensions 62 mm x 116 mm x 42 mm
- Weight 200g
CERTIFICATIONS
Specifications are subject to change without notice
