All stock codes associated to this product
LH75EDDPLGC/XY
ED75D
Overview
The essential way to deliver your message and engage your audience
An affordable digital display for your essential signage needs
Features
Captivate your audience with stunning, full high-definition (FHD) images and crisp text on Samsung EDD large format display (LFD) Series. This digital signage solution gives you the essentials you need to easily produce attention-getting messages in one affordable display. Their slim, lightweight design makes installation a snap compared with cumbersome conventional displays, saving you needless start-up expenses. The displays feature direct LED (d-LED) BLU technology for rich picture quality, low power consumption and reduced operating costs. In addition, the EDD Series come in a wide array of offerings ranging from 32 to 75 allowing you to select the exact fit to meet your specific needs.
Captivate your audience with an immersive viewing experience

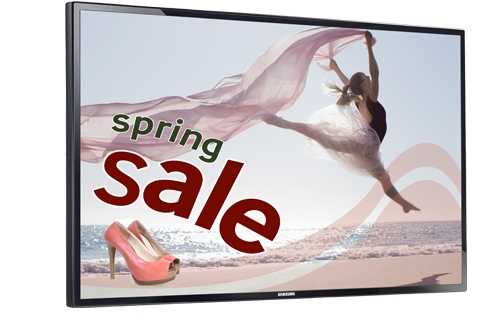

Entice your audience with crisp, clear FHD images and realistic colour on a sleek display with Samsung d-LED technology. A sleek, lightweight design and slim bezels keep your audience focus on your message, helping you capture more business opportunities. The accompanied pivot function gives you the flexibility to display your message vertically or horizontally for the optimal view.
Opt for Samsung EDD LFDsthe smart choice for your business
Samsung EDD Series displays are perfectly suited to various business environments and demands, with clear advantages:
Higher reliability. LFDs are required to undergo stricter, more rigorous quality assurance testing under various environmental conditions. Stringent testing includes lifecycle, dust testing and power surges.
Optimised display connectivity. LFDs offer RS-232C connection that provides you with a simple way to link multiple displays for access to broader range of digital content. The accompanied multiple display control (MDC) program gives you easy control of all connected displays and content from one central location through the RS-232C connection. You can even merge the MDC protocol into your existing technology.
Increase content possibilities with external content drives and the optional Samsung PIM
EDD Series displays are designed to use content from various external sources, including PCs, external hard drives and USB drives, with an optional PIM. Samsung PIMs use Intel Open Pluggable Specification (OPS) connectivity to enable power and video source delivery through a single cable. No additional power cord is necessary. With the optional PIM installed, external clutter is reduced so that the slim design of EDD Series displays is retained.
Enhance visual communication for increased productivity
EDD series 65 and 75 displays come with an optional, easy-to-install Touch Overlay accessory that enriches the user experience and elevates your brand in any environment. Improved IR touch technology using vertical and horizontal sensing ensures every inch of the screen provides a realistic multi-touch experience. The durable 3.2mm thick overlay protects your display from countless sources of damage including dust to assure long-lasting performance.
Connectivity
Connect the display to other digital signage easily with interfaces based on your specific needs. The displays provide not only the essential connections businesses use the most but support for a wide range of source device types. Interfaces include HDMI, DVI, D-sub, Component and Composite input as well as RS-232C for extensive connectivity.
Sustainable design
Samsung digital displays emit less heat and carbon dioxide, use less energy, and are mercury- and lead-free. The eco-friendly design helps reduce your companys environmental footprint.
Specifications
Panel
| Diagonal Size |
32 / 40 / 46 / 55 / 65 / 75" |
|
| Type |
120Hz LED BLU |
|
| Resolution |
1920 x 1080 (16:9) |
|
| Pixel Pitch(mm) |
0.2865 (H) x 0.8595 (V) |
|
| Active Display Area |
1,650.24 (H) x 928.26 (V) |
|
| Brightness |
320nit |
|
| Contrast Ratio (Dynamic) |
4,000:1 |
|
| Viewing Angle (Horizontal/Vertical) |
178 / 178 |
|
| Response Time (G-to-G) |
4ms |
|
| Display Color |
10 bit Dithering - 1.07 Billion |
|
| Color Gamut |
70% |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D |
| |
Video |
CVBS, Component, HDMI |
| |
AUDIO |
Stereo mini Jack |
| Output |
AUDIO |
Stereo mini Jack |
Mechanical Specification
| Dimension |
Set Dimension (WxHxD) |
1,675.0 x 959.1 x 64.8mm |
| |
Package Dimension (WxHxD) |
1,853 x 1,100 x 488mm |
| weight |
Set Weight |
28.8kg |
| |
Package Weight |
48.8kg |
| VESA Mount |
400 x 400mm |
|
| Stand Type |
Foot Stand (Optional) |
|
| Media Player Option Type |
PIM |
|
Power
| Power Supply |
AC 100 - 240V ~ (+ / - 10 %), 50 / 60Hz |
|
| Power consumption |
Off Mode |
less than 1W |
| |
On Mode |
360 (Max) / 247 (Typ.) / 1,227.6 (BTU) |
| |
Sleep Mode |
less than 1W |
Accessory
| Included |
Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries |
|
| Optional |
Mount |
WMN4675MD |
| |
Specialty |
CML450D (Ceiling Mount) |
| |
Stand |
STN-L75E |
