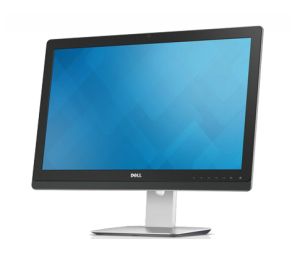

Dell UZ2315H LCD Monitor
23"IPS LED, Widescreen, 8ms, 1920x1080, 1000:1, 300cd/m2, VGA, HDMI, DisplayPort, USB3.0, Webcam, Speakers

No Longer Available

Part Number:

365819

(?) Brand:

Dell

Manuf No:

UZ2315H

Shipping Weight:

12 KG (Includes product packaging)
Estimate Shipping

Date Added:

2/7/2014

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

UZ2315H

Team up with a monitor thats fully flexible.

Video conference from your desk with a fully adjustable 23-inch multimedia monitor that features a Full HD webcam and speakers optimized for Microsoft Lync.

Overview

Connect with Full HD multimedia

With the Dell^TM UltraSharp 23 Multimedia Monitor, you get a complete multimedia configuration that makes it easy to collaborate with colleagues and improve productivity.

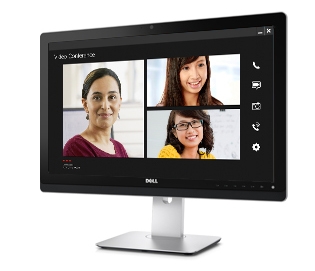

Desktop video conferencing is easy with a 2.0MP Full HD webcam, integrated speakers, and a dual digital headphone/microphone combo jack. Plus, its optimized for Microsoft Lync.
Enjoy 23 inches of superb screen clarity with Full HD resolution across an ultrawide 178/178 viewing angle.

Dell UltraSharp 23 Monitor - UZ2315H - Connect with Full HD multimedia

Boost productivity with adjustable viewing

Modify your monitor to fit the way you work for more flexible viewing, plus comprehensive digital connectivity.

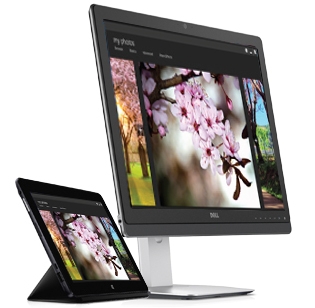

Experience enhanced viewing with HDMI (MHL) connectivity, so you can display content from smartphones and tablets on your monitor screen for superior viewing.

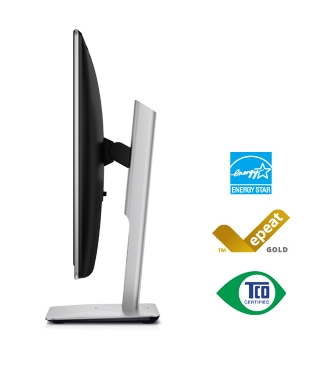

Maximize comfort with adjustability features and built-in cable management so you can view the way you want. Tilt 5.5 forward or 21 backward, swivel left and right 45, raise up to 125 mm or pivot 90 clockwise for portrait view. Customize the monitor to your ideal position so you can be more productive and efficient.
Connect easily to your desktop, laptop or other peripherals with digital connectivity ports, including DisplayPort 1.2a, HDMI (MHL), VGA and USB 3.0.

Count on reliability and eco-efficiency

Environmentally conscious design

The Dell UltraSharp 23 Multimedia Monitor UZ2315H meets the latest regulatory and environmental standards

ENERGY STAR Qualified.
EPEAT Gold¹ Rated.
TCO Certified Displays.

Made with premium-quality materials, the UZ2315H has BFR/PVC-free laminates in its circuit boards and has arsenic-free glass and a mercury-free LED panel. The chassis is made of more than 25 percent post-consumer recycled plastics.

Enhanced power management

Manage power consumption wisely with PowerNap, enabled through the Dell Display Manager to either dim the monitor to the minimum brightness level or put it into sleep mode when it is not in use.

Dell UltraSharp 23 Monitor - UZ2315H - Count on reliability and eco-efficiency

Accessories

Your Dell Monitor is just the start. Look for these great additions when finalizing your purchase.

Dell Single Monitor Arm (MSA14):

Free up space on your desk and help eliminate cable clutter with this flexible monitor arm.

Dell Premium Lock (LP500):

Secure your monitor with a keyed locking mechanism and steel cable that attaches easily to a standard slot on your monitor.

Dell Wireless Keyboard & Mouse (KM714):

Count on a clutter-free workspace with wireless connectivity, plus scissor chiclet keys and a Windows 8 laser mouse.

Limited Hardware Warranty:

Your Dell Monitor is backed by a 3-Year Limited HardwareWarranty² and Advanced Exchange Service³, helping to minimize downtime for you.

Premium Panel Guarantee:

The Dell Premium Panel Guarantee⁴ allows a free panel replacement during the Limited HardwareWarranty² period even if only one bright pixel is found.

Specifications

Dell UltraSharp 23 Multimedia Monitor - UZ2315H

Display

Diagonally Viewable Size:

23" (23-inch wide viewable image size)

58.42 cm

Aspect Ratio:

Widescreen (16:9)

Panel Type, Surface:

In-plane switching, anti glare with hard coat 3H

Optimal resolution:

1920 x 1080 at 60 Hz

Contrast Ratio:

1000: 1 (typical)

Dynamic Contrast Ratio : Mega⁵

Brightness:

300 cd/m² (typical)

Response Time:

8 ms (gray to gray) with Overdrive

Viewing Angle:

(178 vertical / 178 horizontal)

Color Support:

16.77 Million colors

Pixel Pitch:

0.265 mm

Backlight Technology:

LED

Display Type:

Widescreen Flat Panel Display

Display Screen Coating:

Antiglare with hard-coating 3H

Connectivity

1 VGA connector

2 HDMI(MHL) connector

1 DisplayPort (version 1.2a)

2 USB 3.0 ports - Downstream

1 USB 3.0 port - Upstream

1 Headphone out/ Microphone-in combo jack

Stand

Height-adjustable stand, pivot, swivel, tilt and built in cable-management

Flat Panel Mount Interface:

VESA (100 mm)

Built-in Devices

Full HD Webcam (2.0 mega-pixel)

Dual digital microphone (Omni-directional)

Speakers (2 x 3.0W)

USB3.0 Hi-Speed Hub (with 1 USB upstream port and 2 USB downstream ports)

Security

Security lock slot (cable lock sold separately)

Anti-theft stand lock slot (to panel)

Size and Weight

Dimensions with stand (H x W x D):

14.84"~19.76" (376.9 mm ~ 501.9 mm) x 22.20" (563.8 mm) x 7.09" (180.0 mm)

Dimensions without stand (H x W x D):

14.21" (361.0 mm) x 22.20" (563.8 mm) x 1.76" (44.6 mm)

Preset Display Area(H X V):

20.1" x 11.3" (509.2 mm x 286.4 mm)

Weight (panel only - for VESA mount):

7.70 lbs (3.50 kg)

Weight (with packaging):

17.73 lbs (8.06 kg)

Environmental and Regulatory

Electrical

Voltage Required:

90 to 264 VAC / 50 or 60 Hz/ 1.5 A RMS @ 90 VAC & 0.8 A RMS @180 VAC

Power Consumption (Operational):

25W (typical) / 60W (maximum)⁶

Power Consumption Stand by / Sleep:

Less than 1.2W

Environmental

Temperature Range Operating:

32 to 104F (0 to 40C)

Temperature Range Non-operating:

Storage : -4 to 140 F (-20 to 60 C)

Shipping : -4 to 140 F (-20 to 60 C)

Humidity Range Operating:

10% to 80% (non-condensing)

Humidity Range Non-operating:

Storage : 5% to 90% (non-condensing)

Shipping : 5% to 90% (non-condensing)

Altitude Operating:

16,404 ft (5,000 m) max

Altitude Non-operating:

40,000 ft (12,192 m) max

Compliance and Standards

ENERGY STAR 6

EPEAT Gold

TCO Certified Displays

RoHS Compliant

Product Safety, EMC and Environmental Datasheets

Dell Regulatory Compliance Home Page

Dell and the Environment

What's in the box

Monitor with stand

Power adapter and cable

HDMI cable

DP cable (DP to DP)

USB 3.0 upstream cable (enables the USB port on the monitor)

Drivers and documentation media

Quick setup guide

Product and safety information guide

Warranty

3-Year Advanced Exchange Service and Premium Panel Guarantee

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Please note: Most LCD monitors are covered by a 'dead pixel' policy that is manufacturer and model dependent, please contact the manufacturer for exact policy specifications.
