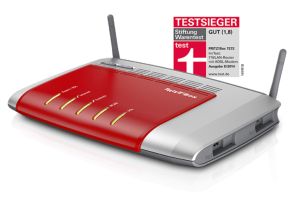

FRITZ! Box 7272
Variety for your home network
With his usual comfort combines the FRITZ! Box 7272 your computers, smartphones, tablets and other network-compatible devices to each other on the home network and the Internet. Quick wireless technology ensures even greater range and much higher speed of up to 450 MBit / s. As Internet and landline telephone system offers the FRITZ! Box 7272 you best voice quality when making calls.
ADSL - Wireless N - DECT - USB - Telephony - Media
Versatile Telephony
The FRITZ Box 7272 convinces with a versatile phone system: You can both the ISDN and operate on analog connector, it supports Internet telephony and provides an ISDN device and two analog phones connection. With the integrated DECT base you can use up to 6 cordless telephones.
Perfect for the digital lifestyle
Thanks to modern WLAN architecture can be reached with the FRITZ! Box 7272 data transfers of up to 450 MBit / s. You can rapidly access your Mulitmediasammlung including fast internet access via Wi-Fi in the entire home network.
Certainly FRITZ! Box
With FRITZ! Box, you can be sure! The comprehensive approach to security protects your communications. It is constantly tested by us and developed. Thanks to the free updates, so stay on the safe side.
FRITZ OS - there's a lot in it
FRITZ! OS, the operating system of your FRITZ! Box, you regularly brings new features. Thanks to the FRITZ! Apps you can access via smartphone also go to your data, making phone calls in the home network or control a webcam. All updates and apps are free of charge.
Excellent simplicity
The excellent by the press and praised by users operating concept of the FRITZ Box has only one goal: to make everything as easy as possible. This is ensured by a clear user interface and wizards that guide you step by step.
Details
Internet
Runs on every port
You can use the FRITZ! Box on each DSL line. Alternatively, they can be operated and integrated easily into existing wireless networks behind a glass fiber or cable modem. Even the use with a UMTS stick is possible.
With MyFRITZ! anywhere in your home
With the MyFRITZ! Of Service AVM access anywhere safely and comfortably on your FRITZ! Box. You can reach the files in FRITZ NAS, the list of recent calls and messages on the answering machine - by MyFRITZ app even on your smartphone and tablet!.
Playing it safe
The FRITZ! Box provides full protection for your home network. The default firewall, filter functions and encryption for DECT and WLAN provide for secure connections. Parental control and separate Internet access for guests are of course included.
Encrypted communication via VPN
With the recognized industry standard IPsec You connect via Virtual Private Network (VPN) to your FRITZ! Box or corporate network. The settings can be set directly in the FRITZ! Make box and transferred to smartphones, tablets and computers.
Future proof with IPv6
FRITZ! Box supports both IPv4 and IPv6 Internet protocol. Existing services are comfortable and many new applications are much easier with IPv6. So you can look forward to the switch to the new technology allowed.
Wi-Fi
WLAN N with 450 Mbit / s
FRITZ! Box enables wireless connections with 450 Mbit / s. This provides enough bandwidth even for large amounts of data. The FRITZ! Box uses the 2.4 GHz frequency band and automatically request the optimal WLAN channel.
WLAN guest access
Offer your guests an easy access to the Internet. Guest access has its own network key and name. Your guests do not have access to the home network. Your data will remain private.
FRITZ! Box as a private Hotspot
If you use your FRITZ! Box as a hotspot, you can limit the use to surfing and mailing. You will receive a usage log, while your guests from the integrated QR Code benefit and can even combine playing easy.
WLAN under control
Wi-Fi on or off? Let's assume the automatic Wi-night circuit. Or access manually: on the WLAN button on the FRITZ Box or even completely comfortable with the FRITZ Fon as remote control!.
Encrypted out
Each FRITZ! Box factory a personal wireless key that protects your network from unauthorized access. The radio network of the FRITZ! Box and the WLAN guest access can be secured each with its own key.
Connected in Nu
Thanks to the WPS method (W i-Fi P rotected S etup) you can connect new wireless devices in no time. Simply press on the box and on the freshman WPS or Wi-Fi button and the login is automatically safe.
Telephony
Complete connectivity
All current phones can operate on the FRITZ! Box. It provides connection for analog phones, fax machines, IP and ISDN telephones and PBXs. All connected devices can be conveniently managed in clear menus.
Wireless freedom with DECT
Can register up to 6 cordless telephones with integrated DECT base. All calls are securely encrypted factory. FRITZ! Box uses the DECT standard and offers more comfort features in conjunction with FRITZ! Fon.
Answering machine with voice mail to
The integrated answering machine can store voice messages on request and will send you a copy by e-mail. So you can call back to the same if necessary. The answering machine can also be timed on and off.
All contacts sync
Your phone book contacts can be used either in the FRITZ! Box store or existing telephone books to Google, 1 & 1, GMX and WEB.DE. The FRITZ! Box automatically synchronizes the messages and keeps them always up to date.
Send and receive faxes
The fax function of the FRITZ! Box makes external fax machines obsolete. In the clearly arranged menu, text and images can be edited and put together for shipping. Received faxes are forwarded in PDF format by e-mail.
Telephoning in perfect HD
Enjoy the best quality calls. Using the latest technology, to hear voices so clear and precise, as if you were sitting across from your interviewer. Both the FRITZ! Box and FRITZ! Fon support HD voice directly from the factory.

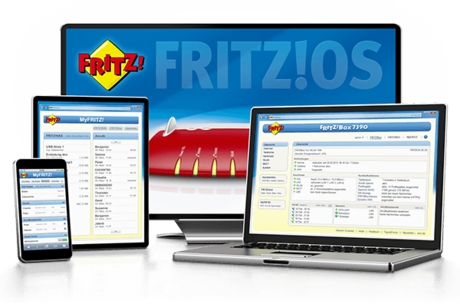

FRITZ! OS
Fritz box - but everything just
FRITZ! OS is the operating system of the FRITZ! Box and can be operated in the browser easily. Clear menus, understandable assistants and the optional Expert Mode assist in all scenarios.
Free Updates
FRITZ! OS is constantly evolving for even more comfort and performance. And the best part: The latest developments is available via download. So your FRITZ! Box is always up to date.
Media Server for the best entertainment
The FRITZ! Box manages all attached USB storage and provides the content residing on the network. The media server then allows playback of music, photos and videos on corresponding output devices in the home network.
FRITZ! Apps for iOS and Android
The practical FRITZ! Apps offer many exciting additional features for smartphones and tablets. Use the mobile apps for even more comfort! All apps are free of charge.
Smart Home: the smart home
FRITZ! OS allows for convenient control of smart home appliances. Thus, with the FRITZ! DECT 200 the power consumption of connected devices to measure and evaluate. Even automated switching is possible.
Maximum energy efficiency
The FRITZ! OS functionality requires additional equipment such as fax and answering machine unnecessary. The transmission power of DECT and WLAN is reduced when not in use. This saves electricity and saves money.
Specifications

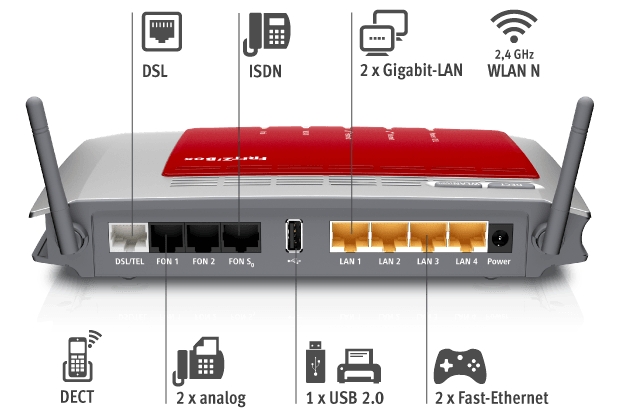

Connections
- ADSL / ADSL2 + connection
- All IP, analog or ISDN landline
- 2x Gigabit Ethernet, Fast Ethernet, 2 x
- WLAN N with up to 450 MBit / s
- 1 x USB 2.0 for storage and printer
- DECT base for up to 6 handsets
- ISDN S bus for ISDN telephones and ISDN telephone system
- 2 a / b ports for analog telephones, answering machines and fax
Specifications
Internet
- DSL Router with Firewall / NAT, DHCP server, DynDNS client, UPnP AV
- ADSL connection with either analog or ISDN landlines to 1TR112 / U-R2
- Use of existing Internet connections via LAN and Wi-Fi
- Router is equipped with cable modem, fiber optic terminal or UMTS stick (UMTS / HSPA)
- IPv6 Support
- Stateful Packet Inspection firewall with port forwarding
- Secure remote access over the Internet using VPN (IPSec)
Wi-Fi
- WLANs 802.11n (up to 450 MBit / s, 2.4 GHz) and 802.11b / g
- From work safely with WPA2 encryption enabled
- AVM Stick & Surf: surf safely and wirelessly automatically
- WLAN button (manual on / off wireless)
- Wi-Fi Protected Setup (WPS)
- WLAN guest access - secure surfing for friends and visitors
- Extension of wireless radio range using repeater function
- Wireless Auto Channel: automated search for a trouble-free wireless radio channel
- WLAN Eco for optimal performance with minimal power consumption
Telephony
- Telephone system with DECT base for up to 6 cordless telephones
- Encrypted Voice Factory
- ISDN S-Bus for connecting ISDN telephones / ISDN PBX
- 2 a / b ports for connecting analog telephones, answering machines and fax
- Supports HD telephony for natural sound
- DECT Eco: radio shutdown for maximum ergonomics
- 5 integrated answering machine including e-mail forwarding (voice to mail)
- Fax function, including e-mail forwarding (fax to email)
- Call divert internal calls, three-way conferencing, mediation
- Call barring, wake-up call, baby monitor, VIP calls and Disturb
- Internet telephony SIP-compliant with RFC 3261
- Registration of IP phones (LAN / WLAN) based on SIP standard
- Telephony app (WLAN) for Apple iPhone 4 from iOS, Google Android from 2.1
Comfort for the home network
- Media server provides devices in the home network music, pictures and videos available (SMB, FTP, UPnP AV)
- With MyFRITZ! from anywhere secure access to your own FRITZ! Box
- FRITZ NAS - easy access to all files on the network
- Networked applications such as IPTV, Video on Demand and Streaming Media
- Child Lock, Push Service, cloud contacts, online storage
- Joint use existing Internet access via LAN or WLAN: Guest access
- Wake on LAN over the Internet
- Supports DLNA-enabled devices
FRITZ! OS
- "Fritz box": clear user surface, intuitive to use via the browser
- User interface optimized for smartphones and tablets (responsive design)
- Free updates for new functions and security
- Advanced View for specific settings, help function with full text search
- FRITZ! Apps for wireless phone calls in the home network, for file access on the move, the control of webcams and more (Android and iOS)
- Smart Home features integrated into user interface
- Smart home appliances are manually in the home network and the internet as well as automatically switchable
Connections
- For ADSL and ADSL2 + connection
- Analogue or ISDN landlines to 1TR112 / U-R2
- Compatible with Annex-J terminals of the Deutsche Telekom
- 2x Gigabit Ethernet (10/100/1000 Base-T)
- 2 x Fast Ethernet (10/100 Base-T)
- Wireless Access Point IEEE 802.11n, g, b
- 1 x USB 2.0 for storage and printer
- DECT base for up to 6 handsets
- ISDN S bus (RJ45) for ISDN telephones and ISDN telephone system
- 2 a / b ports (TAE, RJ11) for analog phones, fax and answering machine
Scope of delivery
- FRITZ! Box 7272
- Power Supply
- 4.25 m long DSL / telephone cable
- 1.5 m LAN cable
- TAE / RJ45 adapter for connection to the analogue fixed line
- DSL adapter
- FRITZ! Box CD and installation guide
Device Properties
- Dimensions (W x D x H): 210 x 155 x 25 mm
- Desk or wall mountable
- Average power consumption: 6-8 watts
Warranty
- 5 year manufacturer's warranty
Article number
- FRITZ! Box 7240
- FRITZ! Box 7320
