Specifications
Type
Compact digital still camera with built-in flash, 30x Optical, 4x Digital and 120x Combined Zoom with Optical Image Stabilizer
Image Capture Device
Type
16.0 Megapixel, 1/2.3-inch CCD
Total Pixels
Approx. 16.6 Megapixels
Effective Pixels
Approx. 16.0 Megapixels*
*Image processing may cause a decrease in the number of pixels.
Lens
Focal Length
4.3 (W) - 129.0 (T) mm (35mm film equivalent: 24-720mm)
Digital Zoom
4.0x
Focusing Range
Normal: 2.0 in. (5cm) - infinity (W), 4.6 ft. (1.4m) - infinity (T)
Auto/Manual: 0.0 in. (0cm) - infinity (W), 4.6 ft. (1.4cm) - infinity (T)
Macro AF: 0.0 in. - 1.6 ft. (0-50cm) (W)
Autofocus System
TTL Autofocus
Viewfinders
Optical Viewfinder
Not available
LCD Monitor
3.0-inch TFT Color LCD with wide viewing angle
LCD Pixels
Approx. 230,000 dots
LCD Coverage
Approx. 100%
Aperture and Shutter
Maximum Aperture
f/3.4 (W), f/5.8 (T)
Shutter Speed
1-1/1600 sec.
15-1 sec. (shooting long exposures)
Exposure Control
Sensitivity
Auto, ISO 100-1600
Light Metering Method
Evaluative*, Center-weighted average, Spot**
* Facial brightness is evaluated in Face Detection AF.
** Metering frame is fixed to the center.
Exposure Control Method
AE Lock
Exposure Compensation
Still Images: 2 stops in 1/3-stop increments
White Balance
White Balance Control
Auto*, Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom
* Camera automatically sets the optimal ISO speed according to shooting mode.
Flash
Built-in Flash
Auto, Flash On, Slow Synchro, Flash Off
Facial brightness is also evaluated in Face Detect.
Flash Range
1.6 ft. - 16 ft. (W), 4.6 - 9.8 ft. (T) (50cm - 5.0m (W), (1.4m - 3.0m (T))
*Image brightness may diminish depending on the shooting distance.
Recycling Time
10 sec. or less (battery voltage: 3.7 V)
Flash Exposure Compensation
Not available
Shooting Specifications
Shooting Modes
P, Live View Control, Auto, Portrait, Face Self-timer, Low Light, Fish-eye Effect, Miniature Effect, Toy Camera Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, Long Shutter

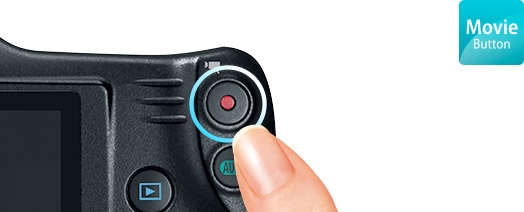

Shooting movies is done with the movie button
Photo Effects
My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color *
*Adjustment of contrast sharpness, saturation, red, green, blue and skin tone are available
Self Timer
Approx. 10-sec. delay/approx. 2-sec. delay/custom*
*Delay time (0-15 sec. (in one-second increments), 20/25/30 sec.) and number of shots (1-10 shots (in one-shot increments)) can be specified.
Wireless Control
Not Available
Continuous Shooting
Normal: Approx. 0.8 shots/sec. (in P mode)
Normal: Approx. 3.2 shots/sec. (in Low Light mode)
Under conditions where the flash does not fire automatically.
Differs depending on the zoom position.
Image Storage
Storage Media
SD Memory Card, SDHC Memory Card, SDXC Memory Card
File Format
Design rule for Camera File system, DPOF (Version 1.1) compliant
Image Recording Format
Superfine / Fine
JPEG Compression Mode
Still Image: Exif. 2.3 (JPEG)
Video: MOV (Image: H.264; Audio: Linear PCM (Monaural))
Number of Recording Pixels
Still Images:
1) 16:9 - Large: 4608 x 2592; Medium 1: 3264 x 1832; Medium 2: 1920 x 1080; Small: 640 x 360
2) 3:2 - Large: 4608 x 3072; Medium 1: 3264 x 2176; Medium 2: 2048 x 1368; Small: 640 x 424
3) 4:3 - Large: 4608 x 3456; Medium 1: 3264 x 2448; Medium 2: 2048 x 1536; Small: 640 x 480
4) 1:1 - Large: 3456 x 3456; Medium 1: 2448 x 2448; Medium 2: 1536 x 1536; Small: 480 x 480
*2304 x 1728 (M) when in Low Light
Number of Recordable Images
Image data
|
16:9 |
3:2 |
4:3 |
File Size (KB) |
8GB |
32GB |
File Size (KB) |
8GB |
32GB |
File Size (KB) |
8GB |
32GB |
Large (L1) |
SF |
5,788 |
1,349 |
5,446 |
6,654 |
1,174 |
4,742 |
7,365 |
1,058 |
4,272 |
F |
3,673 |
2,116 |
8,545 |
4,148 |
1,874 |
7,567 |
4,546 |
1,705 |
6,883 |
Medium 1 (M1) |
SF |
3,199 |
2,431 |
9,814 |
3,593 |
2,154 |
8,695 |
3,889 |
1,996 |
8,059 |
F |
2,141 |
3,611 |
14,578 |
2,335 |
3,318 |
13,396 |
2,513 |
3,069 |
12,391 |
Medium 2 (M2) |
SF |
1,095 |
6,822 |
27,537 |
1,440 |
5,339 |
21,550 |
1,602 |
4,723 |
19,064 |
F |
604 |
12,280 |
49,567 |
793 |
9,446 |
38,128 |
893 |
8,469 |
34,184 |
Small (S) |
SF |
188 |
35,089 |
141,622 |
221 |
30,703 |
123,919 |
249 |
27,291 |
110,150 |
F |
113 |
49,125 |
198,271 |
133 |
40,937 |
165,225 |
150 |
40,937 |
165,225 |
Medium* (M) |
F |
NA |
NA |
NA |
NA |
NA |
NA |
1,597 |
4,815 |
19,437 |
|
1:1 |
File Size (KB) |
8GB |
32GB |
Large (L1) |
SF |
5,524 |
1,411 |
5,696 |
F |
3,409 |
2,273 |
9,178 |
Medium 1 (M1) |
SF |
2,941 |
2,640 |
10,659 |
F |
1,880 |
4,093 |
16,522 |
Medium 2 (M2) |
SF |
1,213 |
6,297 |
25,418 |
F |
668 |
11,164 |
45,061 |
Small (S) |
SF |
188 |
35,089 |
141,622 |
F |
113 |
49,125 |
198,271 |
Medium* (M) |
F |
NA |
NA |
NA |
Note: SF=Superfine F=Fine
* When in Low Light.
The approximate number of images recordable on memory cards other than the above can be calculated by using the above figures as a reference and extrapolating accordingly.
Time of Recordable Movies
Movie data
|
Miniature Effect |
HD: 1280 x 720 |
640 x 480 |
5x |
10x |
20x |
5x |
10x |
20x |
5 fps*2 |
3 fps*2 |
1.5 fps*2 |
6 fps*2 |
3 fps*2 |
1.5 fps*2 |
Movie Size (KB/sec.) |
319 |
159 |
80 |
84 |
42 |
21 |
8GB |
6 hrs. 40 min. 07 sec. |
13 hrs. 01 min. 08 sec. |
24 hrs. 46 min. 50 sec. |
23 hrs. 42 min. 12 sec. |
43 hrs. 36 min. 51 sec. |
75 hrs. 11 min. 50 sec. |
32GB |
26 hrs. 56 min. 23 sec. |
52 hrs. 35 min. 36 sec. |
100 hrs. 06 min. 24 sec. |
95 hrs. 45 min. 15 sec. |
176 hrs. 11 min. 17 sec. |
303 hrs. 46 min. 22 sec. |
|
Other |
HD: 1280 x 720 |
640 x 480 |
25 fps*1 |
30 fps*1 |
Movie Size (KB/sec.) |
1781 |
607 |
8GB |
1 hr. 11 min. 43 sec. |
3 hrs. 24 min. 26 sec. |
32GB |
4 hrs. 49 min. 46 sec. |
13 hrs. 45 min. 52 sec. |
*
1 Playback frame rate is 25 fps.
*
2 Actual frame rate is 29.97 fps.
Playback Specifications
Playback Modes File
Stills & Videos:
Auto Rotate (Automatic vertical/horizontal detection), Image Advance (Transition Effects, Scroll Display), Rotate, Favorites, My Category, Smart Shuffle, Group Playback, Slideshow (Repeat, Interval, Effect)
Still Images:
Single, Index (6-100 thumbnails), Magnification (2-10x), Information Display, Red-eye Correction, i-Contrast, Resize, My Colors, Histogram, Overexposure Warning
Videos:
Normal Playback*1, Skip Backward*2, Previous Frame*3, Next Frame*3, Skip Forward*2
Displays playback position and shooting time*1 Audio settings available in 5 levels *2 Approximately 4 seconds *3 Slow motion available
Erasing Specifications
Erase Modes
Select Image, Select Range, Select All Images
The image data in the memory card stored with the Design rule for Camera File systems format can be erased (however, protected images cannot be erased).
Using the Movie editing function, sections of the movie (1 sec. increments) can be deleted.
Interfaces
Video Out
NTSC/PAL (dedicated connector (female) with unified type of digital, audio and video)
Audio Out
Monaural (dedicated connector (female) with unified type of digital, audio and video)
Other
SD memory card slot; direct connection to Canon SELPHY, PIXMA Photo Printers & PictBridge compatible printers
Power Source
Battery Pack NB-11LH, AC Adapter Kit ACK-DC90
Shooting Capacity
Approx. 190 shots
Approx. 260 shots in ECO Mode
Playback Time
Approx. 5 hours
Physical Specifications
Operating Temperature
32-104F/0-40C
Operating Humidity
10-90%
Dimensions (W x H x D)
4.11 x 2.72 x 3.15 in. / 104.4 x 69.1 x 80.1mm
Weight
11.0 oz. / 313g (CIPA standard)
10.5 oz. / 297g (camera only)
