All stock codes associated to this product
CAPTAIN360, CAPTAIN 360, CFANCAPT360, CFAN-CAPT360
Design
Description

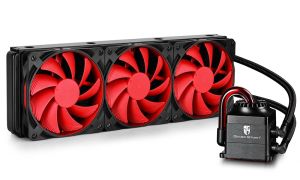

Captain series is the innovative high quality design of CPU liquid cooler from Gamer Storm, DEEPCOOL. Innovated by DEEPCOOL Steam Castle Design, Captain styled with Steam Punk appearance, built with visible liquid flow and LED lightening, offering an awesome sensation not only to your CPU cooling but also your aesthetic demand. Captain series is sure to be your ultimate choice for computer case with side window.
- AIO liquid radiator with original Separated Section design, self-governed circulation channel to offer more efficient heat dissipation.
- Crazy steam punk appearance &the unique reactor-style pump housing.
- Optimized Airflow With Centralized Flow Design
- Three-phase induction motor built-in the powerful closed impeller, the stronger liquid flow& bigger delivery head.

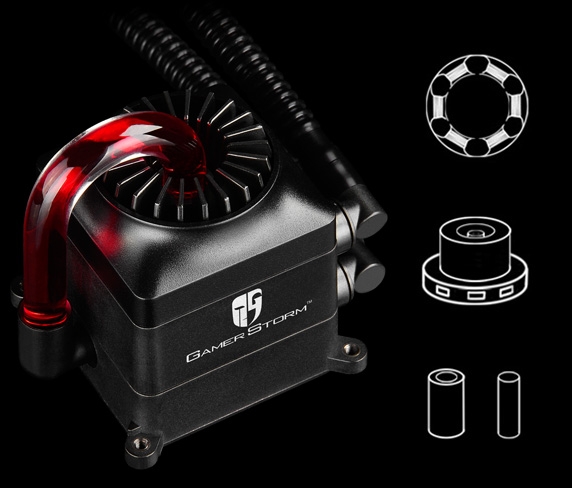

- The unique pump with closed impeller to offer a bigger power, de-vibration & Lower noise.
- Long lifetime zirconia ceramicbearing to make 120,000 hours running safely.

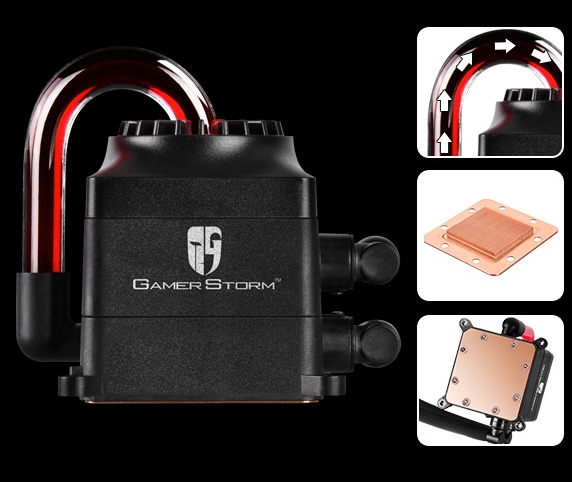

- Amazing transparent connection system, visual liquid flow design.
- 0.2mm high-density water microchannel (Skiving Fin technics),greatly extend the cooling area.
- 100% pure copper base to offer a highly effective thermal conduct
- Japanese Fluid Dynamic Bearing & high-quality IC to offer a super low noise level& longer lifetime.

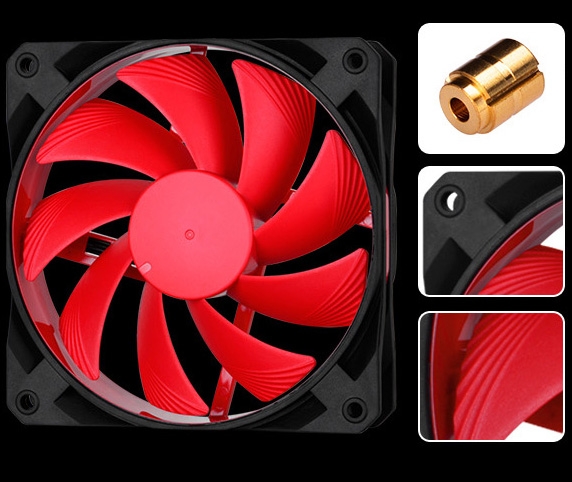

- 120mm PWM fan, 100%wrapped by a TPE layer, which can reduce vibration to a great extent.
- Optimized Airflow With Centralized Flow Design.
Detachable fan impeller with the function of recruited lubricating oil, greatly extend the lifetime.

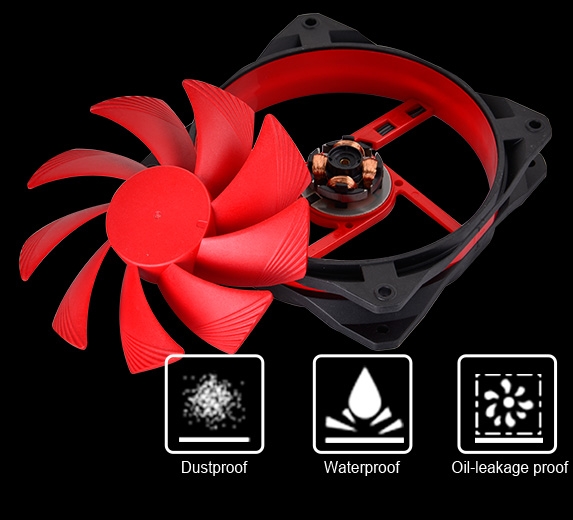

Optimized fan configuration with triple-proof (Dustproof, Waterproof, Oil-leakage proof) with estimated lifetime of 100,000 hours.
Equipped with multiple clips to support
Intel LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1150
AMD FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Features
- AIO liquid radiator with original Separated Section design, self-governed circulation channel to offer more efficient heat dissipation
- Amazing transparent connection system, visual liquid flow design
- Crazy steam punk appearance &the unique reactor-style pump housing
- Three-phase induction motor built-in the powerful closed impeller, the stronger liquid flow&bigger delivery head
- Long lifetime ceramic bearing with MTBF120,000 hours
- 0.2mm high-densitywater microchannel (Skiving Fin technics), 100% pure copper base
- 120mm rubber-covered PWM fan with de-vibration design, unique FDB bearing owned a lower noise &longer lifetime
- Patented detachable fan impeller easyto clear dust& lubricating oil recruited, DIY top-priority mounting
- Bionic red LED breathing light lightening up while operating
Application For
Intel Socket 150W
LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1150
High End Desktop i7
Core i7 Extreme/i7/i5/i3
Core 2 Extreme/Quad/Duo
Pentium/Pentium G
Celeron/Celeron G |
AMD Socket 140W
FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class |
Technical Spec
| Main system Dimensions |
89.0X65.4X76.0mm |
| Radiator Dimensions |
395X120X32mm |
| Radiator Material |
Aluminum |
| Fan Dimensions |
120X120X25mm(3pcs) +PWM |
| Fan Speed |
600200-220010%RPM |
| Fan Air Flow |
273.36CFM (MAX) |
| Fan Air Pressure |
3.71mmH2O(MAX) |
| Fan Life Expectancy |
100000 hours |
| Fan Noise Level |
17.639.3dB(A) |
| Fan Bearing Type |
Long lifetime ceramic FDBFluid Dynamic Bearing |
| Fan Connector |
4Pin |
| Fan Rated Voltage |
12VDC |
| Fan Rated Current |
0.2410%A(MAX) |
| Fan Power Consumption |
2.88W |
| Pump Life Expectancy |
120000 hours |
| Pump Connector |
3Pin |
| Pump Operating Voltage |
6~19VDC |
| Pump Rated Voltage |
12VDC |
| PumpSpeed |
6000150RPM |
| Pump Load Current |
0.4010%A(MAX) |
| Pump Power Consumption |
4.8W |
| Net Weight |
162710g |
