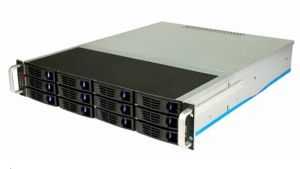

TGC TGC-2112-6ST Hot-Swap Server Case, 2U
  • 12x Hot-Swappable SATA II,III /SAS 6G Drive Bays, 4x 80mm Middle Fixed Fans, Smooth Border Prevent Lacerating Your Hands, Supports EEB, ATX, mATX

IMG 1 of 1
No Longer Available
Part Number:
388099
(?) Brand:
TGC
Manuf No:
TGC-2112-6ST
TGC21126ST
Shipping Weight:
14.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/12/2014
Details Files Finance Images & Video
All stock codes associated to this product
TGC21126ST, TGC-2112-6ST, TGC-2112-6ST

2U 12 bay Hotswap Server Case, 650MM depth,2U/Redundant 1+1 PSU Install


Features

  • 12x hot-swappable SATA II, III /SAS 6G drive bays
  • 12x SATA data connectors support up to 6x 3.5" or 2.5" SATA II, III/SAS 6G hard disk drives;
  • 12 x 3.5 " hot-swappable drive bays
  • LED indicators for power and activity on each HDD tray
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") motherboard
  • RoHS Compliant
  • Smooth border prevent lacerating your hands

Specifications

Drive Bay 12 x hot-swappable SATA II, III /SAS 6G drive bays
Cooling Fan 4 x 80mm middle fixed fans
Switch Power ON/OFF x 1, System reset x 1
Indicator Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector 12x SATA connectors, 3x 4-pin molex redundant power connectors.
Motherboard Compatibility Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7")
Power Supply Options Standard 2U power supply, 2U redundant power supply (W x H=3.98inch x 3.31inch)
Dimensions ( W x D x H ) 19" x 25.5" x 3.5" (483mm x 650mm x 88mm)
Packing Single box
Weight 13.5 kg(NET) 14.5 kg (GROSS)
Environment Temperature 0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity 5% to 95%,non-condensing
Vibration ( 5-500 Hz ) 1 Grms (Operating), 2 G (Non-Operating)
Shock 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
