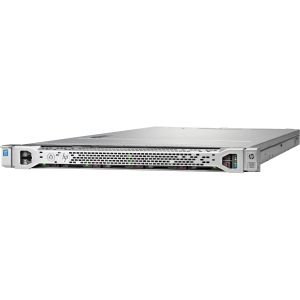

HP 783370-375 DL160 Gen9 E5-2620v3 LFF AP Svr/Promo

IMG 1 of 1
No Longer Available
Part Number:
389094
(?) Brand:
HP Web Site
Manuf No:
783370-375
783370375
Shipping Weight:
18.14 KG (Includes product packaging)
Estimate Shipping
Date Added:
23/1/2015
Details Files Finance Images & Video

Are you looking for options for HP Servers Systems?

Why not get us to send you a quote, the eaisest method is to simply fill our contact form with your requirements and we will get back to you.

Contact Form

All stock codes associated to this product
783370-375, 783370375, 2748456, 888793247013

Basic
Brand Name: HP
Form Factor: Rack
Green Compliant: Yes
Number of Processors Supported: 2
Processor Core: Hexa-core (6 Core)
Processor Manufacturer: Intel
Processor Model: E5-2620 v3
Processor Speed: 2.40 GHz
Processor Type: Xeon
Product Family: ProLiant DL160 G9
Product Type: Server
RAID Levels: 0, 1, 1+0, 5
RAID Supported: Yes
Rack Height: 1U
Standard Memory: 8 GB
Bays
Number of External 5.25" Bays: 1
Number of Total Expansion Bays: 5
Controllers
Controller Type: 6Gb/s SAS
Serial ATA/600
RAID Levels: 0, 1, 1+0, 5
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
General Information
Brand Name: HP
Manufacturer Part Number: 783370-375
Manufacturer Website Address: https://www.hp.com
Manufacturer: Hewlett-Packard
Product Line: ProLiant
Product Name: ProLiant DL160 Gen9 E5-2620v3 8GB-R B140i 4 LFF 550W PS Server/Promo
Product Series: DL160 G9
Product Type: Server
I/O Controller
Controller Type: 6Gb/s SAS
Serial ATA/600
RAID Levels: 0, 1, 1+0, 5
RAID Supported: Yes
I/O Expansions
Number of 3.5" Bays: 4
Number of External 5.25" Bays: 1
Number of PCI Express x16 Slots: 1
Number of PCI Express x8 Slots: 1
Number of Total Expansion Bays: 5
Number of Total Expansion Slots: 2
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Network (RJ-45): Yes
Number of USB 2.0 Ports: 1
Number of USB 3.0 Ports: 4
Remote Management: Yes
Total Number of USB Ports: 5
Media & Performance
Ethernet Technology: Gigabit Ethernet
Memory
Memory Card Reader: Yes
Memory Card Supported: microSD
Memory Standard: DDR4-2133/PC4-17000
Memory Technology: DDR4 SDRAM
Number of Total Memory Slots: 16
Standard Memory: 8 GB
Miscellaneous
Certifications & Standards:
  • ACPI 2.0b Compliant
  • PCIe 3.0
  • PXE Support
  • WOL Support
  • Microsoft Logo certifications
  • FCC Rating Class A
  • CISPR 22
  • EN55022
  • EN55024
  • FCC CFR 47
  • ICES-003
  • CNS13438
  • GB9254
  • K22
  • K24
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 60950-1
  • IEC 60950-1
  • ASHRAE A3
  • ASHRAE A4
Form Factor: Rack
Green Compliance Certificate/Authority: EU WEEE
WEEE
Green Compliant: Yes
Network & Communication
Ethernet Technology: Gigabit Ethernet
Remote Management: Yes
Physical Characteristics
Depth: 607.6 mm
Form Factor: Rack
Height: 43.5 mm
Rack Height: 1U
Weight (Approximate): 14.53 kg
Width: 434.6 mm
Power Description
Input Voltage: 120 V AC
230 V AC
Maximum Power Supply Wattage: 550 W
Processor & Chipset
64-bit Processing: Yes
Cache: 15 MB
Chipset Manufacturer: Intel
Chipset Model: C610
Hyper-Threading: Yes
Maximum Turbo Speed: 3.20 GHz
Number of Processors Supported: 2
Processor Core: Hexa-core (6 Core)
Processor Manufacturer: Intel
Processor Model: E5-2620 v3
Processor Speed: 2.40 GHz
Processor Type: Xeon
QuickPath Interconnect: 8 GT/s
Product Information
Form Factor: Rack
Width: 434.6 mm
Storage
Memory Card Supported: microSD
RAID Levels: 0, 1, 1+0, 5
Technical Information
64-bit Processing: Yes
Controller Type: 6Gb/s SAS
Serial ATA/600
Ethernet Technology: Gigabit Ethernet
Memory Card Reader: Yes
Memory Card Supported: microSD
Memory Standard: DDR4-2133/PC4-17000
Memory Technology: DDR4 SDRAM
Processor Core: Hexa-core (6 Core)
Processor Manufacturer: Intel
QuickPath Interconnect: 8 GT/s
RAID Levels: 0, 1, 1+0, 5
RAID Supported: Yes
Video
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Warranty
Limited Warranty: 3 Year

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (HP) web site.
