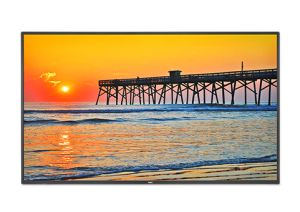

NEC E585 Commercial Grade LED LCD Display
  • 58"LED Direct-Lit, Widescreen, 9.5ms, 1920x1080, 4000;1, 350cd/m2, HDMI, VGA, HDMI, RS232C, Speakers

IMG 1 of 8
No Longer Available
Part Number:
393657
(?) Brand:
NEC
Manuf No:
E585
Shipping Weight:
62.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/5/2015
Details Files Finance Images & Video
All stock codes associated to this product
E585, 5028695111868
58" LED Backlit Display

MODEL: E585

The 58” NEC E585, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model’s LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

  • Integrated multimedia USB player makes digital signage simple
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer maintains power schedules
  • Full 1080p high-definition resolution provides stunning detail
  • Built-in, low-profile 10W speakers enhance the experience with superior sound

Product Specifications

Display




Panel Technology A-MVA

Viewable Image Size 58"

Native Resolution 1920 x 1080

Pixel Pitch 0.67mm

Backlight Type LED Direct-lit

Brightness (typical) 350cd/m2

Contrast Ratio (typical) 4000:1

Viewing Angle 178 Vert., 178 Hor. (89U/89D/89L/89R) @ CR>10

Response Time(Gray to Gray) 9.5ms

Refresh Rate 60Hz

Aspect Ratio 16:9

Active Screen Area 50.4 x 28.5 in. / 1279.9 x 724.3mm

Orientation Landscape

Displayable Colors More than 16.7 million

Synchronization Range




Horizontal (Analog/Digital) 31-83 kHz

Vertical 56-75 Hz

Input Signal




Video Analog RGB 0.7 Vp-p/75 Ohms

Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity




PC Signal Compatibility Yes

Macintosh Compatibility Yes

Input Terminals

Digital HDMI (3)

Analog VGA 15-pin D-sub, Component, Composite (shared with Component)

Audio HDMI Audio, Stereo Mini-Jack

External Control RS-232C


Output Terminals

Audio SPDIF

Power Consumption (typical)




On 143W

ECO Mode Standby <0.5W





Physical Specifications




Bezel Width (Left/Right, Top/Bottom) 0.54 in./0.54 in., 0.54 in./79 in. ; 13.8mm/13.8mm, 13.8mm/20.3mm

Dimensions (WxHxD)

Net (without stand) 51.4 x 29.9 x 4.3 in. / 1300.9 x 758.8 x 108.8mm

Shipping 56.1 x 34.3 x 7.9 in. / 1425 x 872 x 201mm


Weight

Net (without stand) 46.4 lbs. / 21.1 kg

Shipping 61.8 lbs. / 28.1 kg


VESA Hole Configuration Specifications



400 x 400mm (4-hole)

Environmental Conditions




Operating Temperature 32-104F / 0-40C

Operating Humidity 10-80%

Operating Altitude 6562 ft. / 2000m

Storage Temperature 32-104F / 0-40C

Storage Humidity 5-85%

Storage Altitude 40,000 ft. / 12,192m
Limited Warranty (parts & labor, including backlight)



3 years

Additional Features




  • Variable picture modes (Dynamic Standard/Energy Savings/Theater/Custom)
  • Advanced Video/Audio Settings
  • Sleep Timer
  • Built-In closed captioning
  • Parental Control (V-Chip Function)
  • Power management
  • USB Port

Ships With



  • Power cord
  • VGA cable (Mini 15-pin D-sub)
  • Wireless remote control
  • Batteries
  • CD-ROM (user manual)

Accessories




Optional

NEC
  • Optional table top stand accessory (ST-58E)
  • Wall Mount Kit (WMK-3257)
