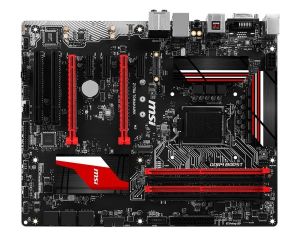

MSI Z170A TOMAHAWK Motherboard
LGA1151, Z170, 4xDDR4-3600(OC), 2xPCI-Ex16 v3.0, 3xPCI-Ex1 v3.0, 2xPCI, 6xSATA-III, 1xM.2, RAID, 1xGigLAN, 8Chl-HD, USB3.1, DVI, HDMI, ATX

No Longer Available

Part Number:

399585

(?) Brand:

MSI Web Site

Manuf No:

Z170A TOMAHAWK

Shipping Weight:

2.5 KG (Includes product packaging)
Estimate Shipping

Date Added:

19/10/2015

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

Z170ATOMAHAWK, Z170A TOMAHAWK, MBMZ170ATOMAHK, MBM-Z170ATOMAHK, 4719072425647

Z170A TOMAHAWK

Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
Supports DDR4-3600(0C)
DDR4 Boost: Give your DDR4 memory a performance boost
GAMING LAN: The best online gaming experience with lowest latency
GAMING DNA: LED ambient lights are added to give it an awesome look & feel, ready for battle
Audio Boost: Reward your ears with studio grade sound quality
Military Class 4: Top Quality & Stability
Guard-Pro: Improved Protection and Power Efficiency
MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire
Click BIOS5: Secure and Reliable UEFI BIOS solution
EZ Debug LED: Easiest way to troubleshoot
Overvoltage Protection:Prevent Unforeseen Damage
4K UHD Support: Ultra-high Definition Visual Experience
GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience
WHQL CERTIFIED.WINDOWS 10 READY.

Overview

NON-STOP GAMING

Equip yourself with the MSI Arsenal GAMING Series motherboards to improve your game. MSI Arsenal GAMING Series motherboards are covered in full black camouflage with LED ambient lights and is packed with gaming features, making them the perfect weapon to dominate the battlefield.

Unmatched memory performance and stability

With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

An added XMP LED highlights an active Extreme Memory Profile for the best memory speed and stability setting.

GAMING LED EFFECT

The Arsenal GAMING Series motherboards come with LEDs on the back of the motherboard to let you fully enjoy the gaming side of things. Like war paint, turn them on for the full Arsenal GAMING experience and you are ready to dominate any battlefield.

GAMING DNA DESIGN

GAMING on the inside, GAMING on the outside. Attention to detail, from red and black look & feel to PCB printing, make the next generation MSI GAMING motherboards stand out once again.

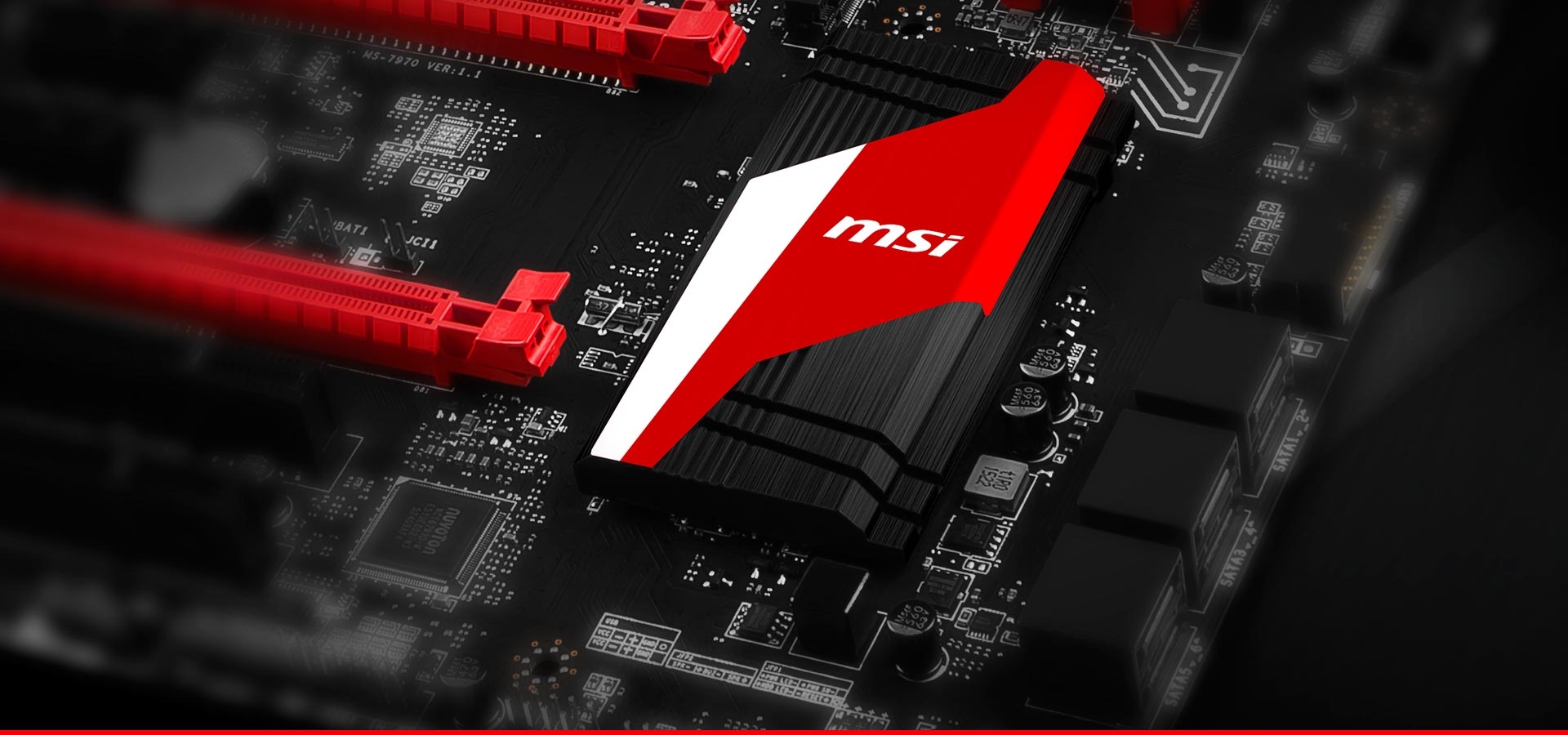

GAMING HEATSINK

The GAMING Heatsink is designed for the best performance and awesome looks, confirming you are dealing with a geniune MSI GAMING motherboard.

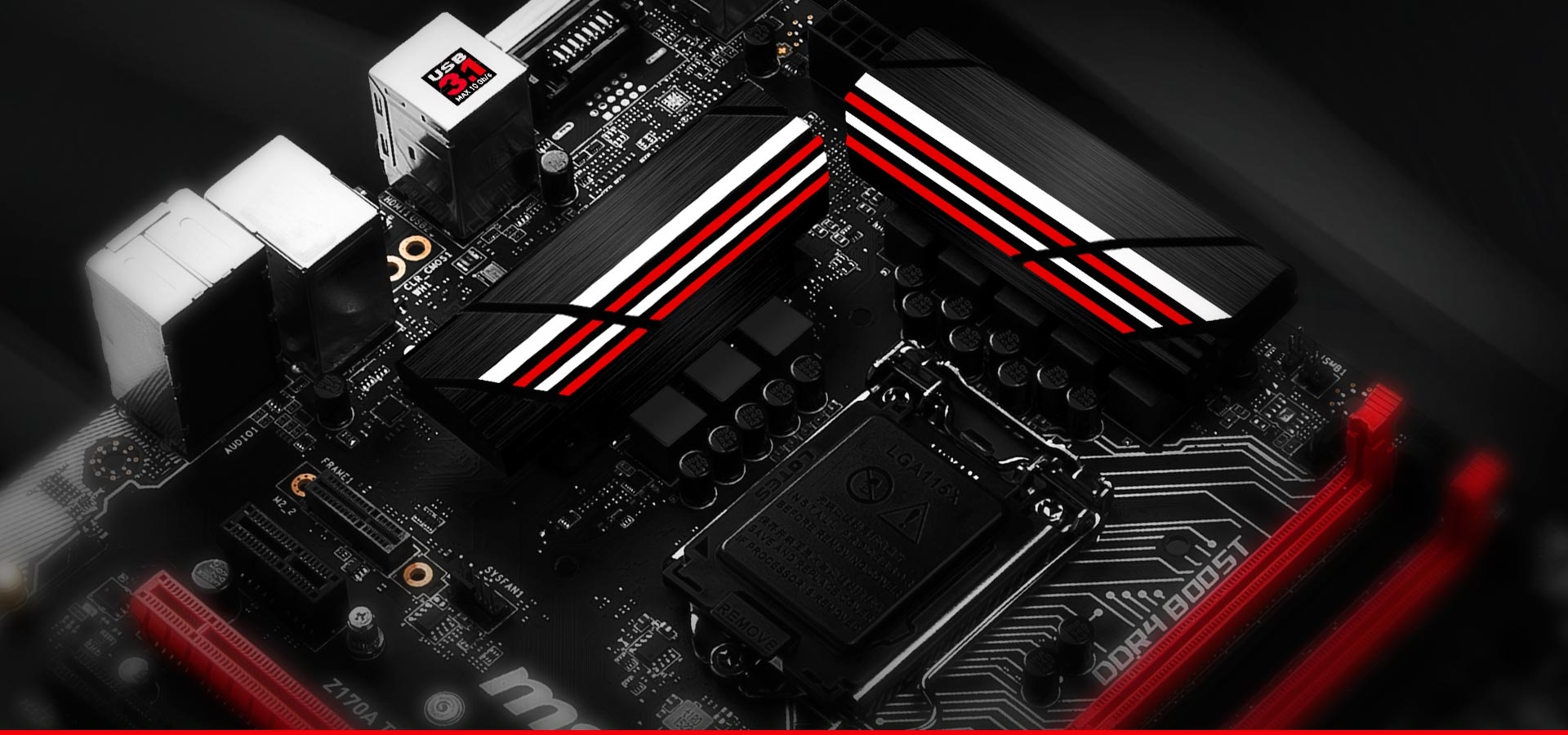

HEAVY PLATED HEATSINK DESIGN

Heavy plated premium heatsinks truly represent style & performance and make sure your system stays cool during even the longest gaming sessions.

Dominate the game with lowest latency

Get ready to crush your enemies on the battlefield with MSI GAMING LAN, featuring carefully selected components to ensure the best online gaming experience without lag.

Gaming optimized bandwidth management

Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.

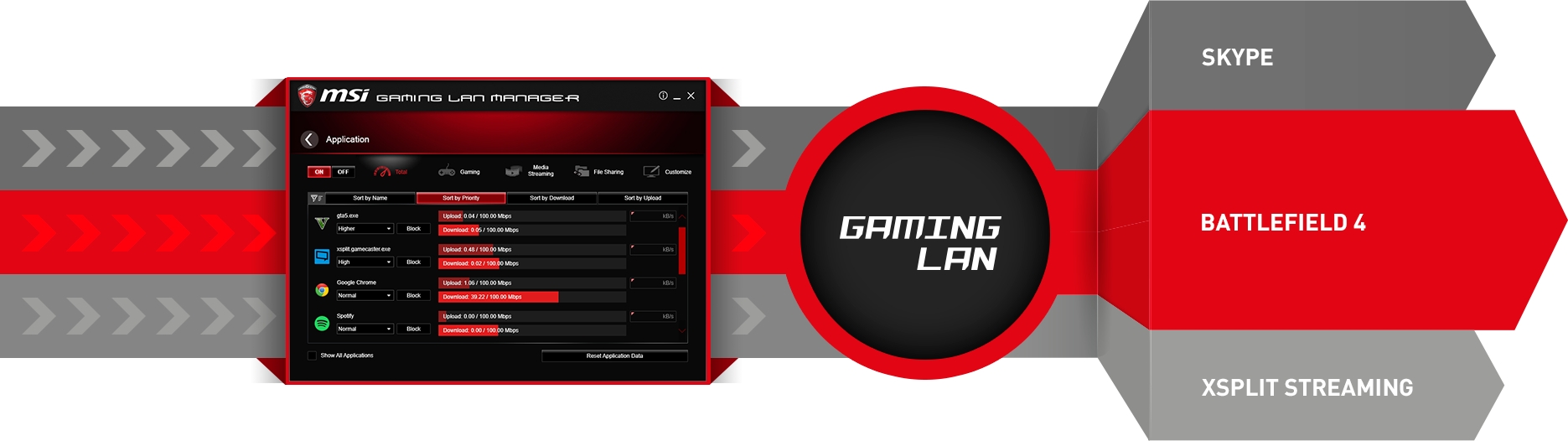

MSI GAMING LAN Manager

Automatically prioritizes games above other applications
Allows you to change applications' traffic priority
Allows you to customize you to customize bandwidth for each application

Studio grade sound with AUDIO BOOST

With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 8-channel HD Audio or high impendence headphones and truly dominate the game.

Golden Audio Jacks

With golden audio connectors you get the best possible signal output with less chance of distortion.

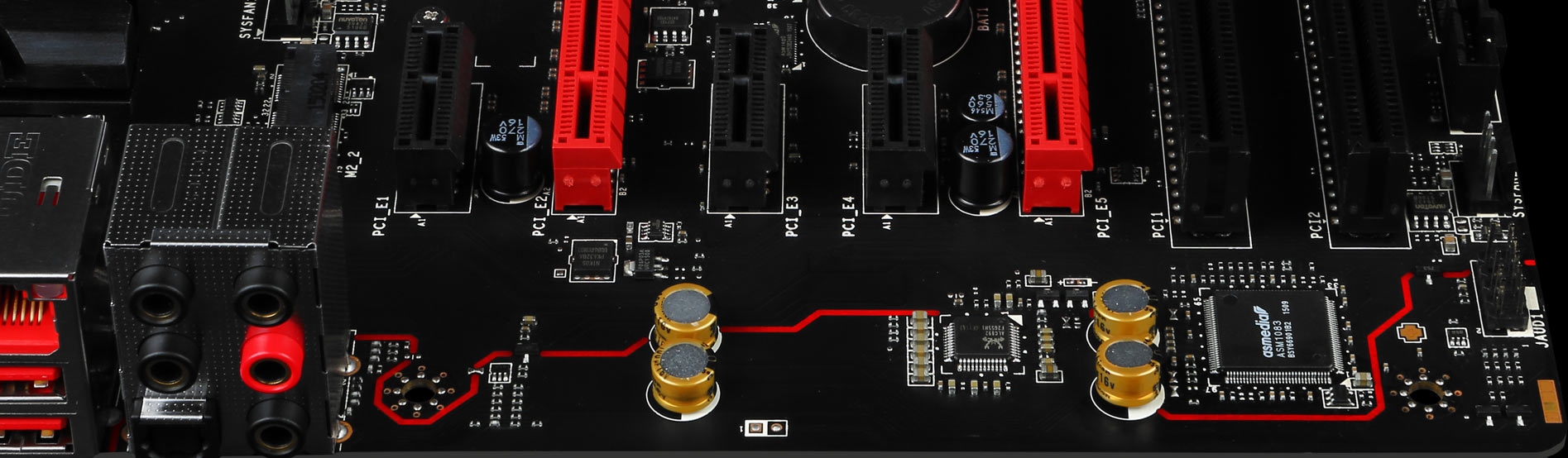

Isolated Audio PCB

Audio Boost acts like a dedicated soundcard by physically isolating the audio circuitry to give you a more clear audio signal.

Chemi-Con Audio Capacitors

Delivering high fidelity crystal clear sound with exceptional acoustics and realism.

Front Dedicated Headphone Out

Convenient use of the front panel audio output while retaining high quality amplified sound.

Separate Audio Layers

Equal and perfect sound quality for left & right channel audio through the use of seperated layers in the PCB.

ANTI-POPCORN NOISE

Audio Boost protects your ears against annoying loud popping sounds when you plug devices in or out or turn your PC on/off.

GAME BOOST

Overclock your system instantly and generate more FPS in games with 1 push of a button using Game Boost! You can also easily enable XMP using the XMP button in Click BIOS.

Features may vary according to your platform and model

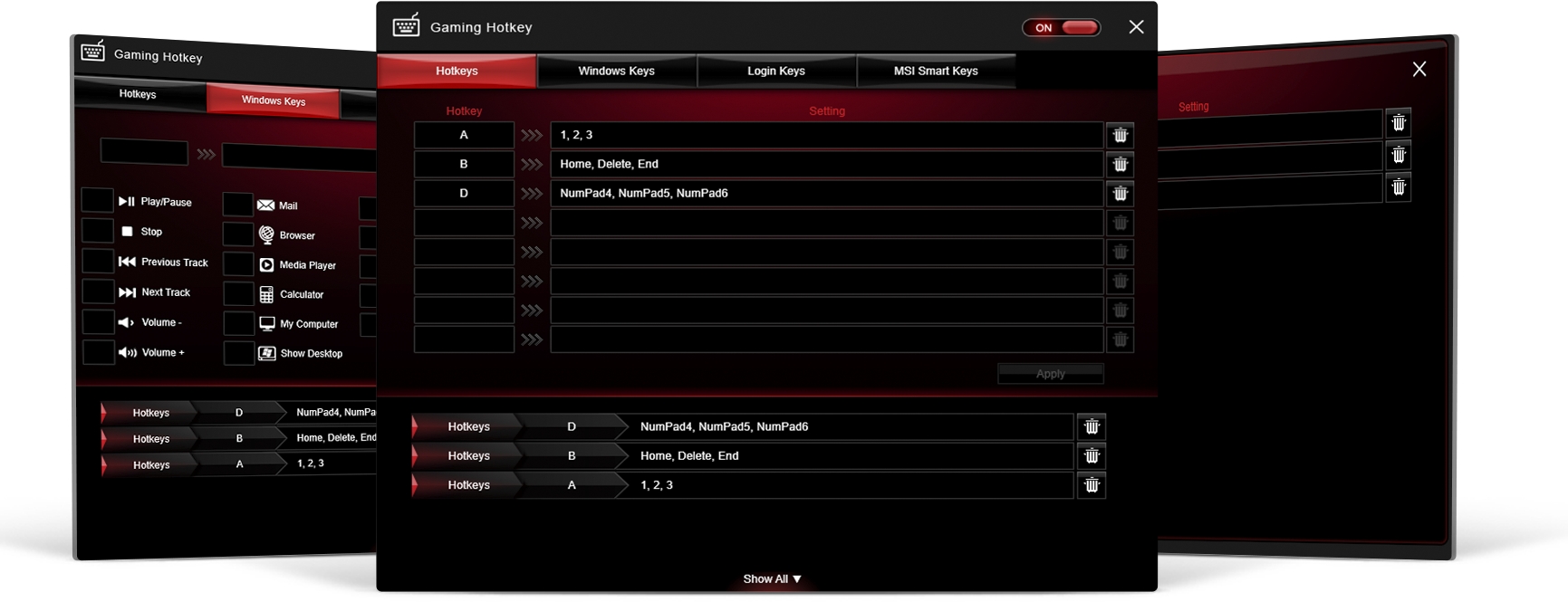

GAMING HOTKEY

Gaming Hotkey enables more functionality using your own keyboard. Simply assign functions or macros to any key and launch your favorite games, load overclocking profiles or do real-time overclocking with the push of a single button. The possibilities are endless!

Customize any key on your keyboard
Up to 8 steps macro programming
User friendly, easy to use application
1 key load up of your favorite game

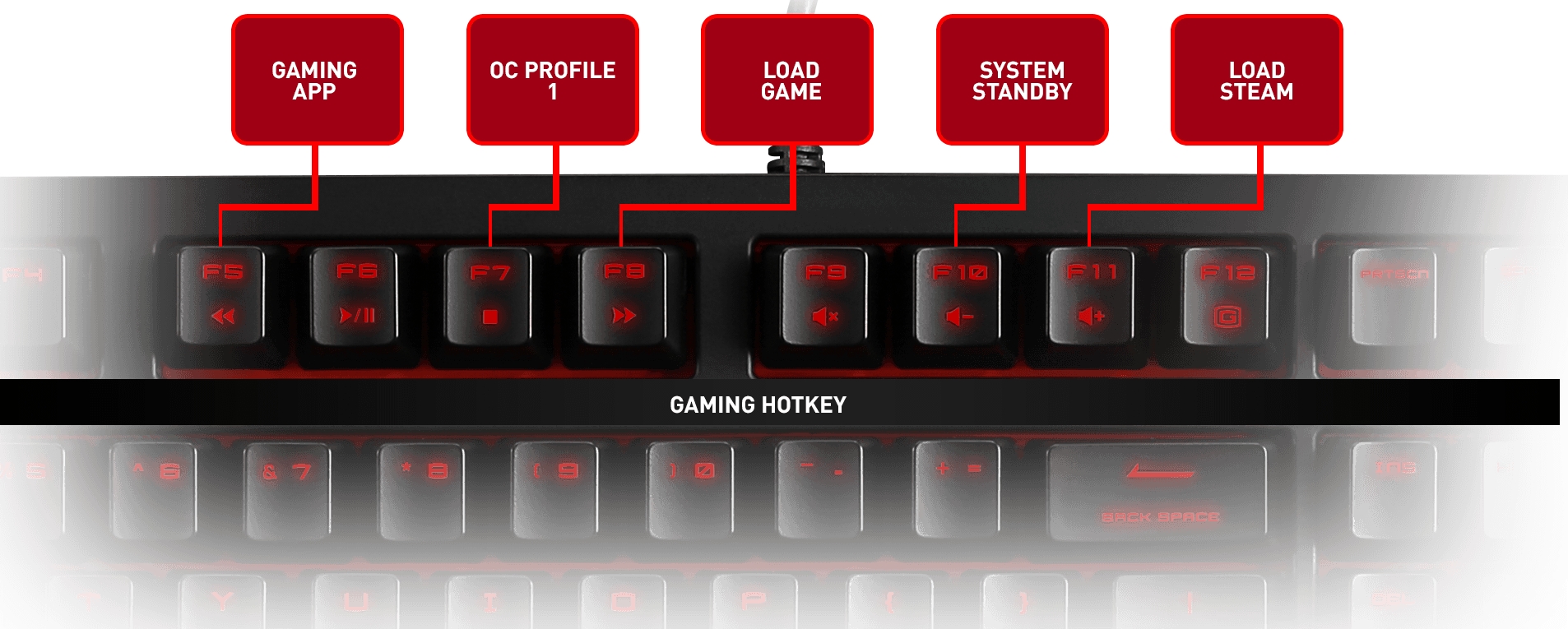

TOTAL FREEDOM, MAXIMUM EASE

Easily program your most used commands to be executed with a single keystroke. You are free to choose any key you want.

Real GAMING Hotkey settings depend on the configuration

Hotkeys

Assign your own keyboard combinations

Windows keys

Quick launch any application or folder

Quick launch of mail, browser or more

MSI Smart keys

One press to login (program passwords)

Login Keys

2x FASTER

MSI USB 3.1 GEN2

Transferring your favorite games, music and movies over USB has never been faster. USB 3.1 Gen2 enables lightning fast transfer speeds up to 10Gb/s!

Benefits

2X faster than USB 3.1 Gen1
20X faster than USB 2.0
Up to 10Gbps data transfer bandwidth
Boost transfer rate for your PC and peripherals

FRONT USB 3.1 Gen1

With a cleverly placed USB 3.1 Gen1 front pin header on MSI motherboards, you can connect up to 4 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports at the rear.

DOUBLE ESD PROTECTION

The front USB 3.1 Gen1 ports on MSI motherboards are protected by a set of protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from plugging/unplugging USB devices.

PUSH YOUR SSD HARDER WITH M.2

M.2 doesn’t need any power- or signal-cables and with a very small footprint M.2 is the storage connector of the future replacing traditional HDDs/SSDs.

Turbo U.2 Host Card (optional)

The U.2 Host Card delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector. A redriver chip is added to increase data transfer speed.

DATA TRANSFER SPEED

SATA3: 6Gbps

M.2: 6Gbps

MSI Turbo M.2: 32Gbps

MSI U.2: 32Gbps

SUPPORTS

ENHANCED CPU OVERVOLTAGE PROTECTION

Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let you know that overvoltage protection is activated for easier troubleshooting.

EZ DEBUG LED

EASY DIAGNOSTIC

MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.

SteelSeries Certified

Get ready to enjoy the best gaming experience with MSI & SteelSeries!

Enthusiast gaming gear brand SteelSeries has officially approved MSI GAMING motherboards as SteelSeries Certified (SSC). This certification is based on the performance demands and stability of MSI GAMING motherboards and SteelSeries products. Your SteelSeries headset, mouse and other top quality gaming gear works best on MSI GAMING motherboards.

GAMING CERTIFIED

Our GAMING motherboards are tested in our gaming lab, internet cafes and together with the worlds best eSports players to make sure you get top performance and reliability in the worlds most popular games. Through 24-hour on- and offline game testing, MSI ensures the onboard network configuration, audio reception and FPS performance are tested and tuned to perfection for you to enjoy the best possible gameplay experience.

Only the motherboards that pass this test receive the GAMING CERTIFIED status and are considered true MSI GAMING motherboards.

CSGO

MILITARY CLASS 4 COMPONENTS

DARK CHOKE

Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.

DARK CAP

With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year Lifespan.

HUMIDITY PROTECTION

Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.

HIGH TEMPERATURE PROTECTION

All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.

CIRCUIT PROTECTION

Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our GAMING motherboards.

ESD PROTECTION

Each and every I/O port is protected against the hazards of Electro Static Discharge.

EMI PROTECTION

All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.

Optimized for multiple graphics cards

CrossFire support

This motherboard supports AMD CrossFire. Optimal PCI-Express slot placement allows for better fitting and airflow.

That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD CrossFire setup.

Prevent damage!

Worried about damaging the PCI-Express slot or your graphics card because of the weight?

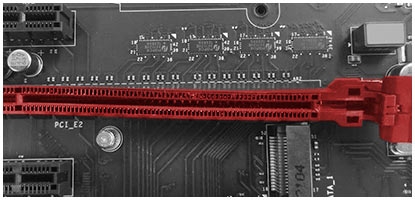

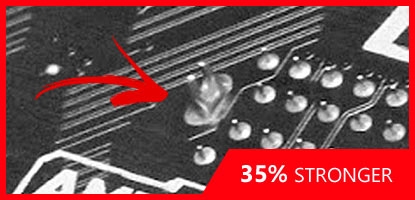

MSI VGA Armor

With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.

Others

No strengthening

MSI VGA Armor

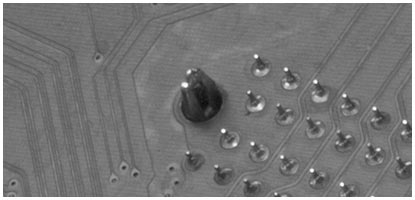

Reinforced, heavy soldered connections

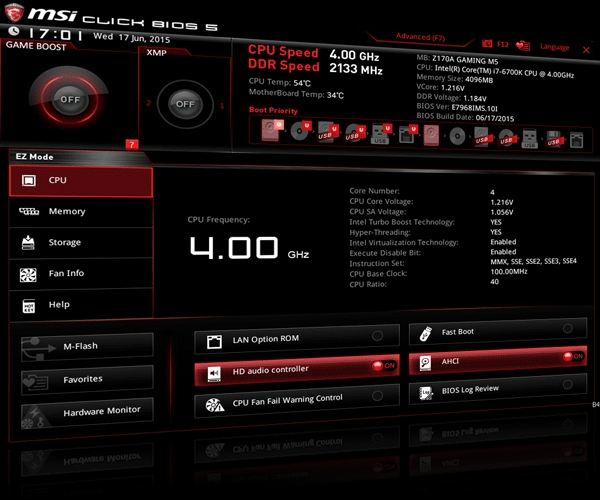

THE ALL NEW, AWARD-WINNING CLICK BIOS 5

Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance to get the most out of your games. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.

Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your systems performance.

Variety of options to boost your game performance
Next gen UEFI BIOS with award winning design
High-resolution multi language scalable font
Easy to use
Advanced overclocking

OTHERS

Low res, non-scalable

CLICK BIOS 5

Sharp, hi-res, scalable design

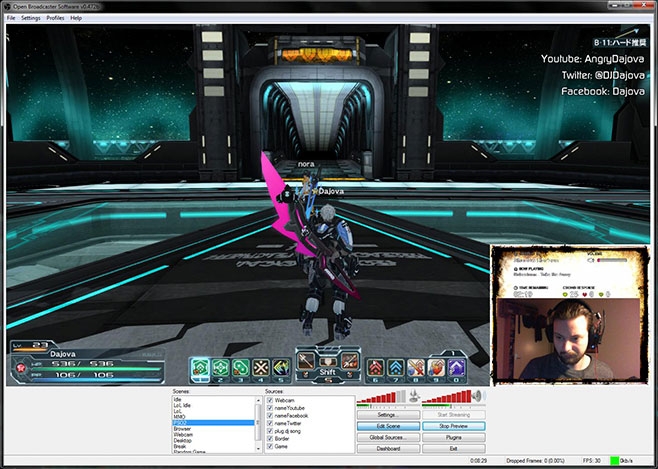

OBS STREAMING SOFTWARE

Share your gaming achievements with the world! Open Broadcaster Software (OBS) is worlds most popular open source software for video recording and live streaming. Show your friends your gaming progress live.

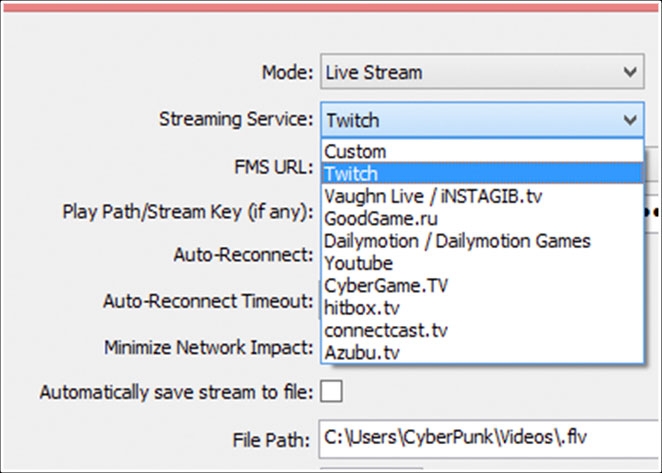

Easy to share

Live streaming to your favorite video sharing websites such as Twitch, YouTube, DailyMotion, Hitbox and many more.

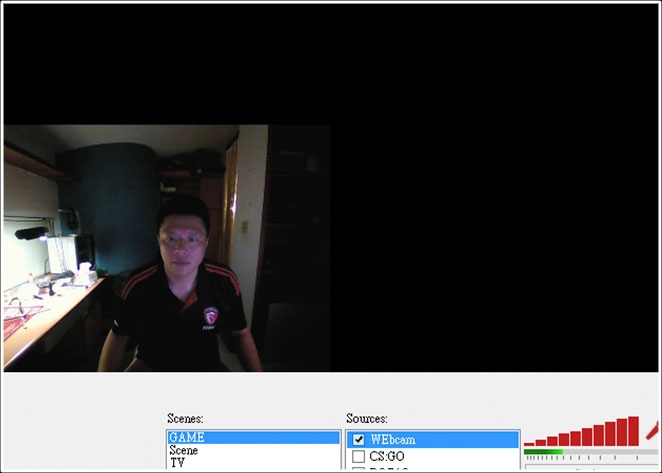

Webcam supported

OBS supports almost any webcam. DirectShow capture device support (webcams, capture cards, etc).

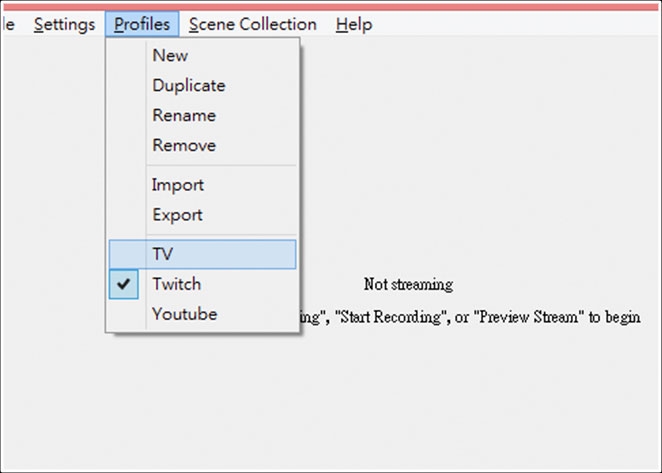

Multiple profiles

Add different profiles, each of them with its own settings. Easy to use OBS for anyone, in any situation.

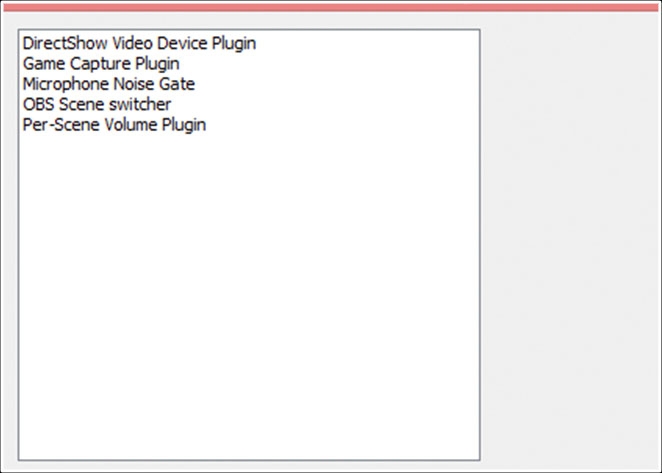

Plenty of plugins

Allowing developers to create their own unique plugins and complete control of their streaming experience.

Optimized video quality

OBS records videos using small file size,but with perfect image and sound quality, without lag.

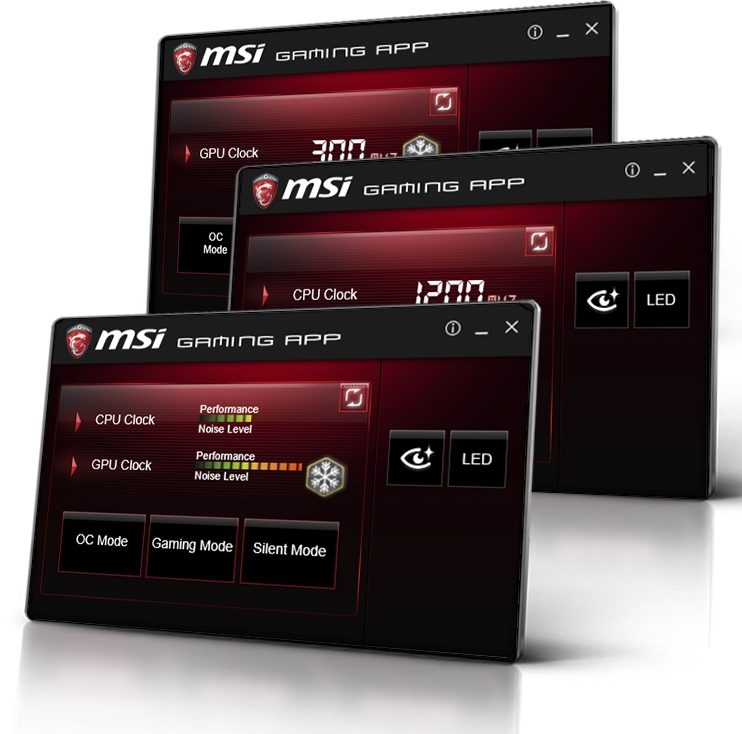

OVERCLOCKING MADE EASY

Outperform your competition with the MSI GAMING APP which allows simultaneous control of both your Motherboard and Graphics Card's overclocking.

Simply select your preferred mode with the click of a button: / Silent / Gaming / OC /

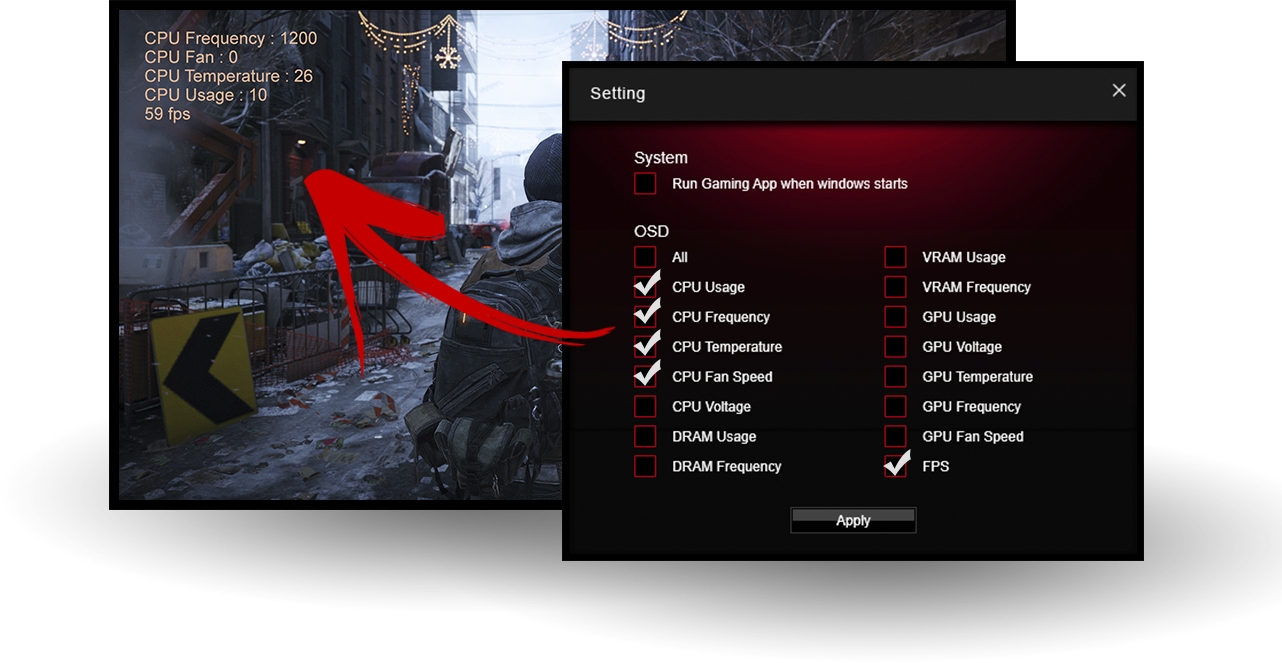

ON-SCREEN SPEED & TEMPERATURES

Real-time monitor GPU Core, DRAM Frequency, GPU & CPU Temperatures and much more, in game or in other fullscreen applications, customizable to your preference.

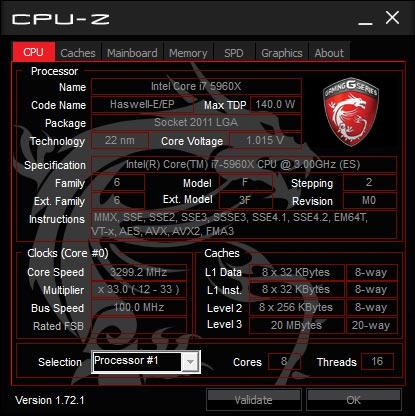

CPU-Z MSI GAMING EDITION

MSI has worked closely with CPUID to develop this special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information on the main devices of your system, such as your CPU speed, Memory speed and timings, motherboard BIOS version and much more.

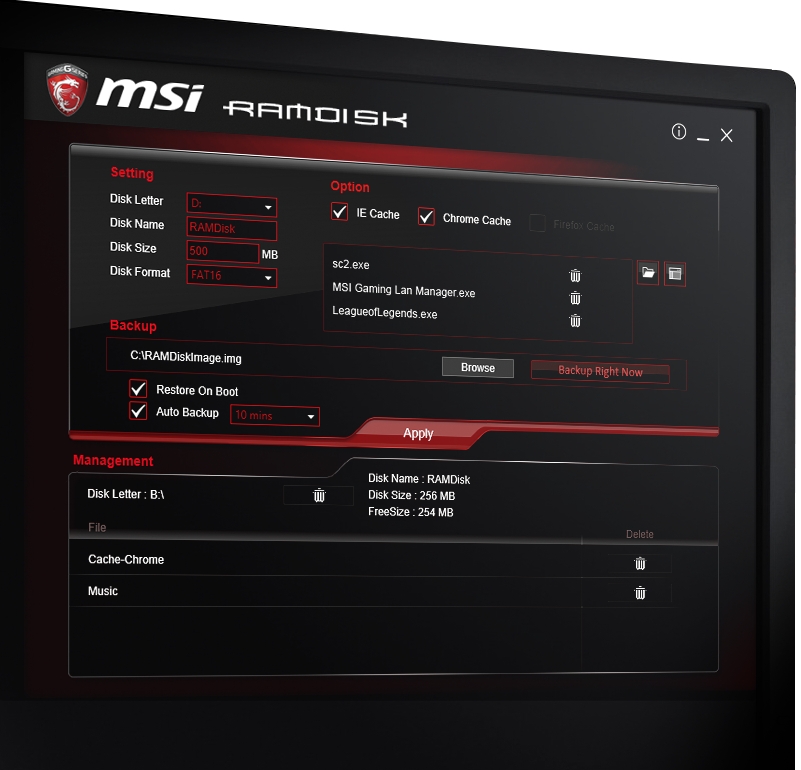

SSD not fast enough? Try MSI RAMDisk!

Get an unlimited RAMDisk for free (worth $35) with MSI GAMING motherboards. RAMDisk allows you to create a virtual drive from your system memory, enabling speeds up to 25x faster than a modern SSD. You can load complete games, speed up your browser or your page file significantly increasing system performance! You even increase your SSD's lifespan by using RAMDisk as it reduces unnecessary read and write operations to your SSD.

Speed up system performance
Speed up games, apps and browser
Increase SSD lifespan

25X Faster

$35 VALUE

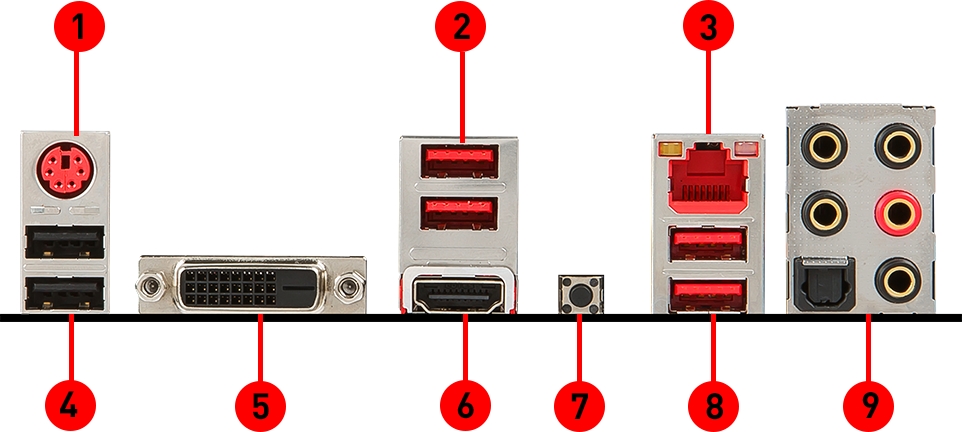

Connectivity

Be sure to take full advantage of all the GAMING weapons by connecting your devices to the optimized ports.

PS/2

USB 3.1 Gen2 ports

LAN

USB 2.0 ports

DVI Port

HDMI Port

Clear COMS

USB 3.1 Gen1 ports

Optioal S/PDIF-Out+OFC Audio Jacks

Specifications

Socket: 1151

CPU (Max Support): i7

Chipset: Intel® Z170 Chipset

DDR4 Memory: 3600(OC)/3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz

Memory Channel: Dual

DIMM Slots: 4

Max Memory (GB): 64

PCI-Ex16: 2

PCI-E Gen: Gen3(16)

PCI-Ex1: 3

PCI: 2

SATAIII: 6

M.2 port: 2

RAID: 0/1/5/10

TPM (header): 1

LAN: 10/100/1000*1

USB 3.1 ports(Front): 2 (Gen1)

USB 3.1 ports (Rear): 2(Gen1),2(Gen2)

USB 2.0 ports (Front): 1

USB 2.0 ports (Rear): 2

Audio ports (Rear): 5 x OFC audio jacks + 1 x Optical S/PDIF OUT connector

HDMI: 1

DVI: 1

DirectX: DX12

Form Factor: ATX

CrossFire: Y

CPU

Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

Intel Z170 Chipset

Main Memory

4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 3600(OC)/3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
Dual channel memory architecture
Supports ECC, un-buffered memory
-Supports ECC UDIMM 1Rx8/2Rx8 memory (non-ECC mode)
Supports Intel Extreme Memory Profile (XMP)

Slots

2 x PCIe 3.0 x16 slots (support x16, x16/ x4 modes)
3 x PCIe 3.0 x1 slots
2 x PCI slots
1x M.2 Wi-Fi module slot (Key E)

* No support PCI wake-up on S3, S4 & S5

Onboard Graphics

1 x HDMI ports, support a maximum resolution of 4096x2160@24Hz,2560x1600@60Hz
1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz

Multi-GPU

Supports 2-Way AMD CrossFire Technology

On-Board SATA

Intel Z170 Chipset
6 x SATA 6Gb/s ports*
1 x M.2 slot(Key M)
- Supports PCIe 3.0 x4 and SATA 6Gb/s standards,4.2cm/ 6cm/ 8cm length M.2 SSD cards
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card***
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports Intel Smart Response Technology for Intel Core processors

* SATA5~6 ports will be unavailable when installing the M.2 module in M.2 (M2_1) slot.
*** The Turbo U.2 Host Card is not included, please purchase separately.

USB

ASMedia ASM1142 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports onthe back panel

Intel Z170 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through the internal USB 3.1 Gen 1 connectors)
- 4 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB 2.0 connectors)

Audio

Realtek ALC892 Codec
7.1-Channel High Definition Audio
Supports S/PDIF ouput

LAN

1 x Realtek RTL8111H Gigabit LAN controller

Back Panel I/O Ports

1 x PS/2 keyboard/ mouse port
2 x USB 2.0 ports
2 x USB 3.1 Gen2 ports
1 x DVI-D port
1 x HDMI port
1 x Clear CMOS button
1 x LAN (RJ45) port
2 x USB 3.1 Gen1 ports
1 x Optical S/PDIF OUT connector
5 x OFC audio jacks

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 1 x USB 2.0 connector (support additional 2 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Clear CMOS jumper

Dimension

12 in. x 9.6 in. (30.4 cm x 22.4 cm) ATX Form Factor

Mounting

6 mounting holes

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (MSI) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product

Click on a thumbnail to view it below

No related products found.

L7: 2 | TM: 6 | LM: 7 | TY: 30 | T: 946

No Hidden Surcharges

Payment FAQ

Reference Tools

Kingston
Memory Selector

Corsair
PSU selector

Sister Sites

We accept the following with No surcharge on VISA, Mastercard and Paypal!

All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.

MSI Z170A TOMAHAWK Motherboard
